SymLine FLEX

The flexible waste disposal system for HPLC workstations

· Simple, non-destrictive installation
Table or wall mounting possible

· Do-It-Yourself modular system
The system is designed for its suitability for your workplace. A minimum of components – many applications!

· Can be flexibly integrated at any time
You can react quickly to any changes in your laboratory – whether it concerns additional workplaces or a reinstallation at another place: the system can be made to fit!

· Central collection point for solvent waste
No obstruction due to containers standing in the working area. Liquids are safely collected, at one central point.

· Anti-static and resistant to solvents
Electrically conductive plastic ensures for secure grounding/earthing, to avoid danger of ignition.

Installation example:
The modular system can be adapted to suit your workplace!
You only require a few basic elements, in order fully equip you laboratory.
Click on the picture here, in order to enlarge it!

Media: Photo Galerie / Video

Overview SymLine FLEX

SymLine System Catalogue Chapter: SymLine FLEX

> Download PDF

Consultation & Contact

Questions about products or installation? Contact the SymLine Team:
+1 704-438-9477

Filter / Configurator

GL25 Adapter for Justrite Container, Flex tube to Stainless

Product no.: 160529

Adapter for justrite stainless steel connection canisters. Allows for the connection of GL25 SymLine Flex tube to stainless steel coupling.

$189.00*

Safety Waste Cap II + 1, V2.0, GL45, Typ 3

Safety Waste Cap II + 1, V2.0, GL45, Type 3

Product no.: 306497

Safety Waste Cap II + 1, V2.0, GL45, collector for HPLC waste, 2x PFA-fittings for capillaries with (OD) 1,6/2,3/3,2 mm, 1x tube connector for tube with (ID) 5,0 - 11,5mm

$104.56*

Safety Waste Cap II, V2.0, GL45, Type 7

Product no.: 306489

Safety Waste Cap II, V2.0, GL45, collector for HPLC waste, 2x PFA-fittings for capillaries with (OD) 1,6/2,3/3,2 mm

$90.89*

Safety Waste Cap III, V2.0, GL45, Type 6

Product no.: 306491

Safety Waste Cap III, V2.0, GL45, collector for HPLC waste, 3x PFA-fittings for capillaries with (OD) 1,6/2,3/3,2 mm

$94.13*

Safety Waste Cap IV, V2.0, GL45, Type 1

Product no.: 306493

Safety Waste Cap IV, V2.0, GL45, collector for HPLC waste, 4x PFA-fittings for capillaries with (OD) 1,6/2,3/3,2 mm

$103.43*

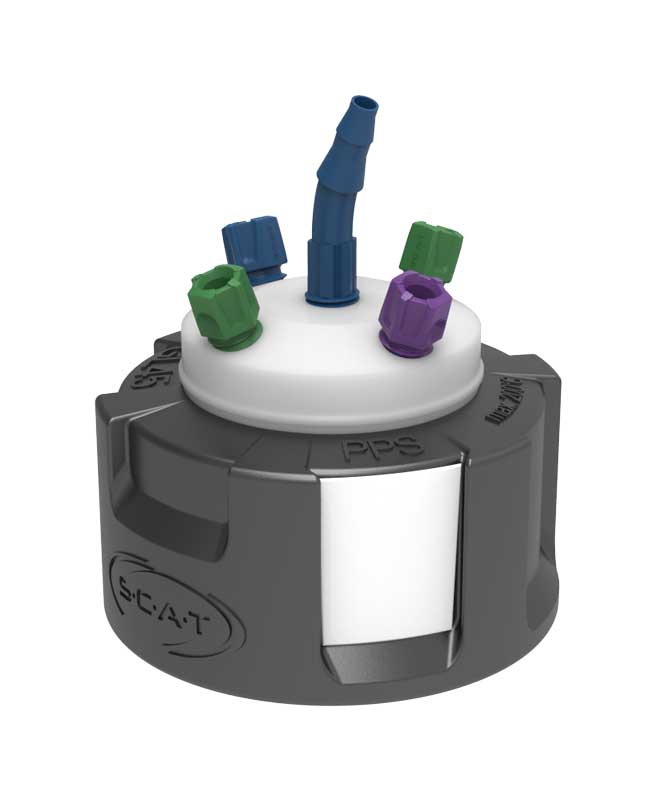

Safety Waste Cap IV, V2.0, GL45, Type 2

Product no.: 306498

Safety Waste Cap IV, V2.0, GL45, collector for HPLC waste, 4x PFA-fittings for capillaries with (OD) 1,6/2,3/3,2 mm, 1x tube connector for tubes with (ID) 5,0 - 11,5mm

$128.37*

Safety Waste Cap V, V2.0, GL45, Type 4

Product no.: 306494

Safety Waste Cap V, V2.0, GL45, collector for HPLC waste, 5x PFA-fittings for capillaries with (OD) 1,6/2,3/3,2 mm

$122.03*

Safety Waste Cap VII, V2.0, GL45, Type 5

Product no.: 306492

Safety Waste Cap VII, V2.0, GL45, collector for HPLC waste, 7x PFA-fittings for capillaries with (OD) 1,6/2,3/3,2 mm

$179.80*

SymLine FLEX - Basic 32 pipe

Product no.: 106688

SymLine FLEX - Basic 32 pipe, PE-HD electrostatic conductive, 1x GL 45 (m), 1x GL 25 (m), pipe connection (w), Blind plug included, length: 310mm, tensile strength (Rm) = 400 N, tightening torque = 4 Nm

$632.71*

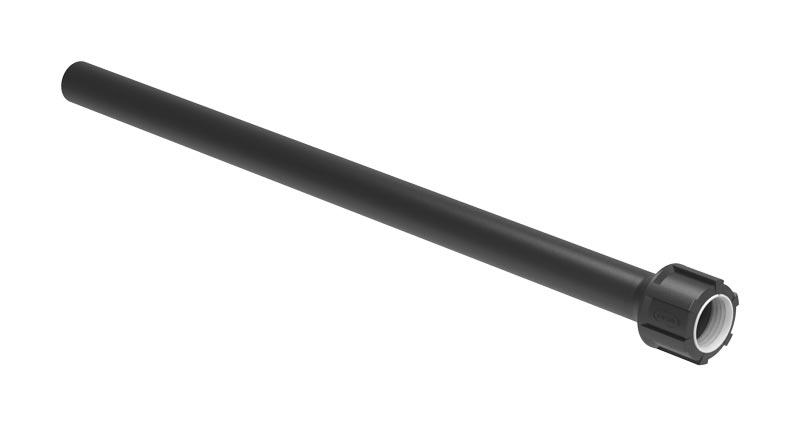

SymLine FLEX - Extension 1

Product no.: 106690

SymLine FLEX - Extension 1, PE-HD electrostatic conductive, length: 600mm, tensile strength (Rm) = 400 N, tightening torque = 4 Nm

$294.86*

SymLine FLEX - Extension 2

Product no.: 106689

SymLine FLEX - Extension 2, PE-HD electrostatic conductive, 1x GL 45 (m), length: 600mm, tensile strength (Rm) = 400 N, tightening torque = 4 Nm

$427.19*

SymLine FLEX - Starter Set USA

Product no.: 106699

SymLine FLEX - Starter Set USA, consisting of: 1x SymLine FlexTube, Length 1000 mm - flexible adaptable, 1x Shut-off, angled, 1x Exhaust filter M, V3.0, economy package, 1x Offset adapter 90° for exhaust filter, 1x Safety Waste Cap, S60/61, GL25 (m), connector for exhaust filter, PE-HD electrostatic conductive, 1x Collecting tray with base insert, 1x Grounding cable

$1,616.92*

SymLine FLEX - Table mount

Product no.: 106691

SymLine FLEX - Table mount for piping system

$137.21*

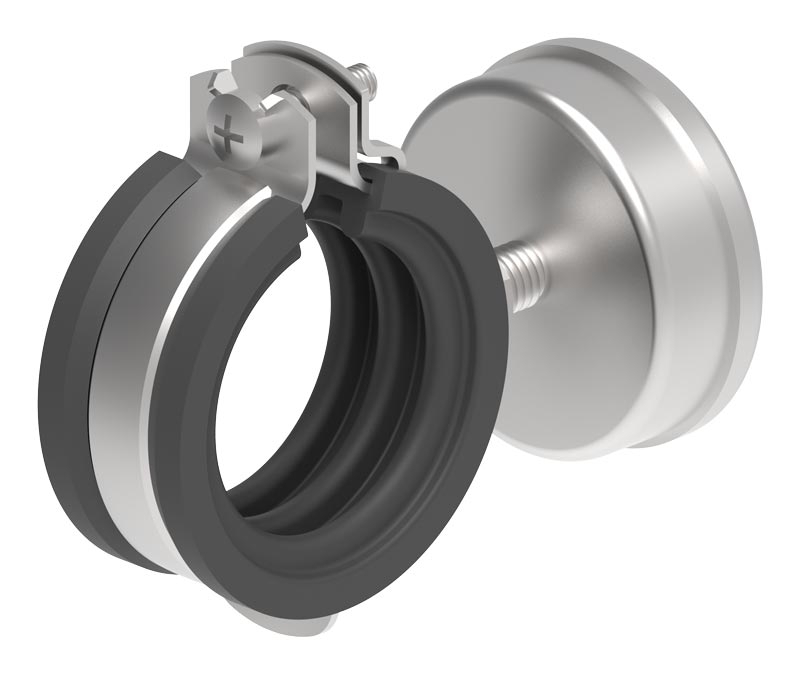

SymLine FLEX - Wall mount

Product no.: 106695

SymLine FLEX - Wall mount for piping system

$54.45*

SymLine FLEX- E-Pack for Starter Set USA

Product no.: 106701

SymLine FLEX- E-Pack for Starter Set USA, Safety Waste Cap S60/61, GL25 (m) with electrical level control, PE-HD electrostatic conductive, Signal cable for electronic level control, length = 3 m, Signalbox T1 - US model

$1,122.93*
