SymLine Bundles

Filling Units

Waste liquids are filled/poured into these. The filling units are mounted in space-saving fashion within your workspace. Available as funnels/sinks for manual filling, or as a special HPLC connection, for direct connection to your waste tubing. Use our configurator for an easy selecting of products:

Overview Filling Units

SymLine System Catalogue
Chapter:
Filling Units

> Download here as a PDF

Consultation & Contact

Questions about products or installation? Contact the SymLine Team:

> +1 704-438-9477

Filter / Configurator

SymLine Arnold Waste Funnel Bundle - Type 10

Product no.: 750352

SymLine Arnold Waste Funnel BundleKit includes the following1x Funnel with Lid "ARNOLD", V2.0, S60/61, PE-HD Electrostatic Conductive, with removable sieve and grounding cable, Funnel Diameter = 200mm1x 10L / 2.64 Gallon multilayer container with handle, HDPE, natural color, UN-Y approved, meets FDA standards.

$363.14*

SymLine Arnold Waste Funnel Bundle - Type 20

Product no.: 750353

SymLine Arnold Waste Funnel BundleKit includes the following1x Funnel with Lid "ARNOLD", V2.0, S60/61, PE-HD Electrostatic Conductive, with removable sieve and grounding cable, Funnel Diameter = 200mm1x 20L / 5.28 Gallon multilayer container with handle, HDPE, natural color, UN-Y approved, meets FDA standards.

$386.87*

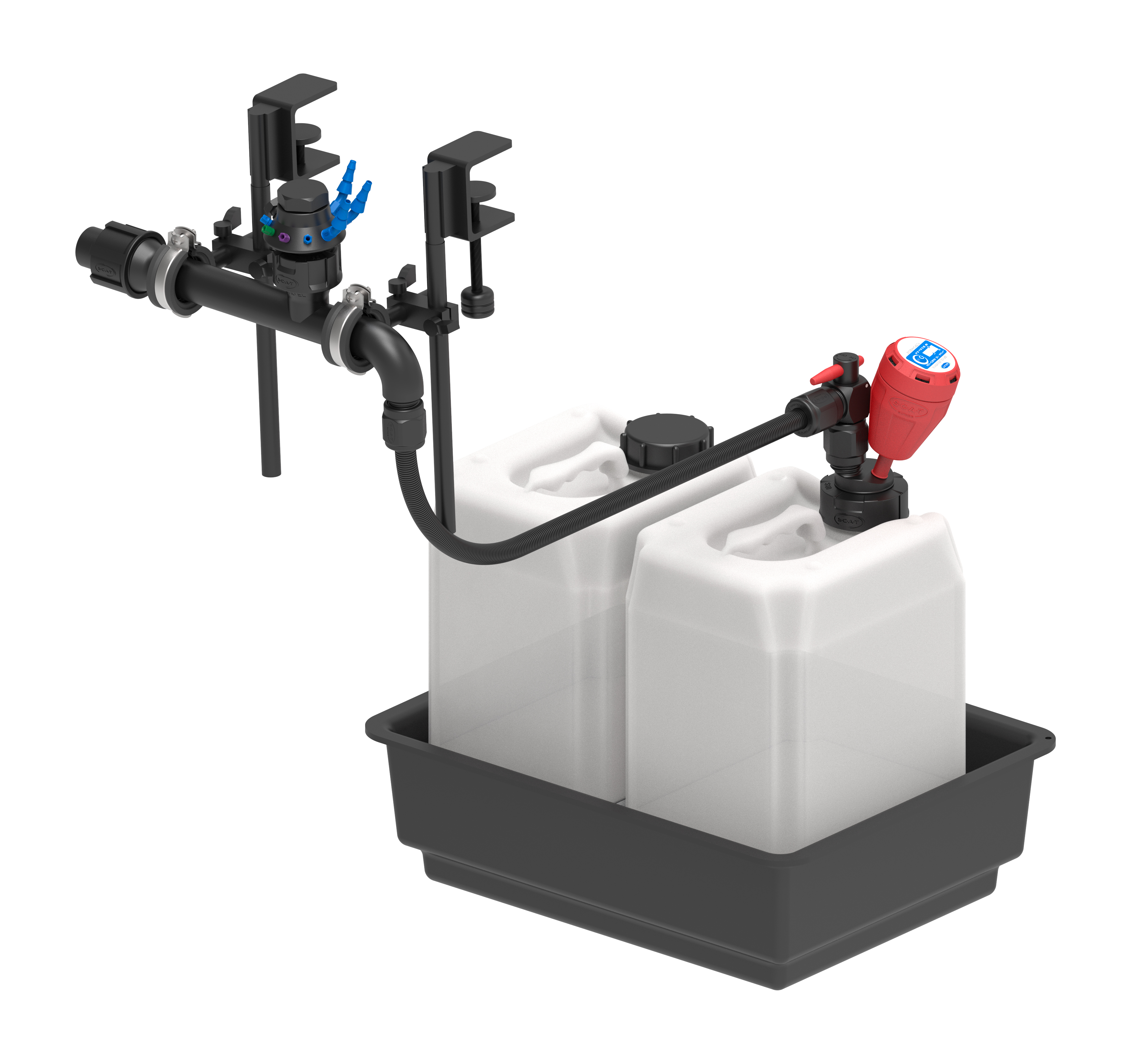

SymLine Bundle 1t (Table mounted for 1-2 HPLC)

Product no.: 750300

SymLine FLEX Bundle 1t Kit includes the following1x Basic 32 pipe, PE-HD electrostatic conductive, 1x GL 45 (m), 1x GL 25 (m), pipe connection (w), length: 310mm, tensile strength (Rm) = 400 N, tightening torque = 4 Nm 1x SymLine FlexTube, Length 1000 mm - flexible adaptable 1x Shut-off, angled, 1x Exhaust filter M, V3.0 1x Offset adapter 90° for exhaust filter 1x Safety Waste Cap, S60/61, GL25 (m), connector for exhaust filter, PE-HD electrostatic conductive 2x 10L / 2.64 Gallon multilayer HDPE container with handle, natural color. UN-Y approved, meets FDA standards1x Collecting tray with base insert 1x Grounding cable 1x LISA Safety Waste Collector, GL45, collector for HPLC waste, 4x PFA-fittings for capillaries with (OD) 1,6/2,3/3,2 mm, 3x tube connector for tubes with (ID) 5,0 - 11,5mm2x SymLine FLEX Table mount

$2,636.74*

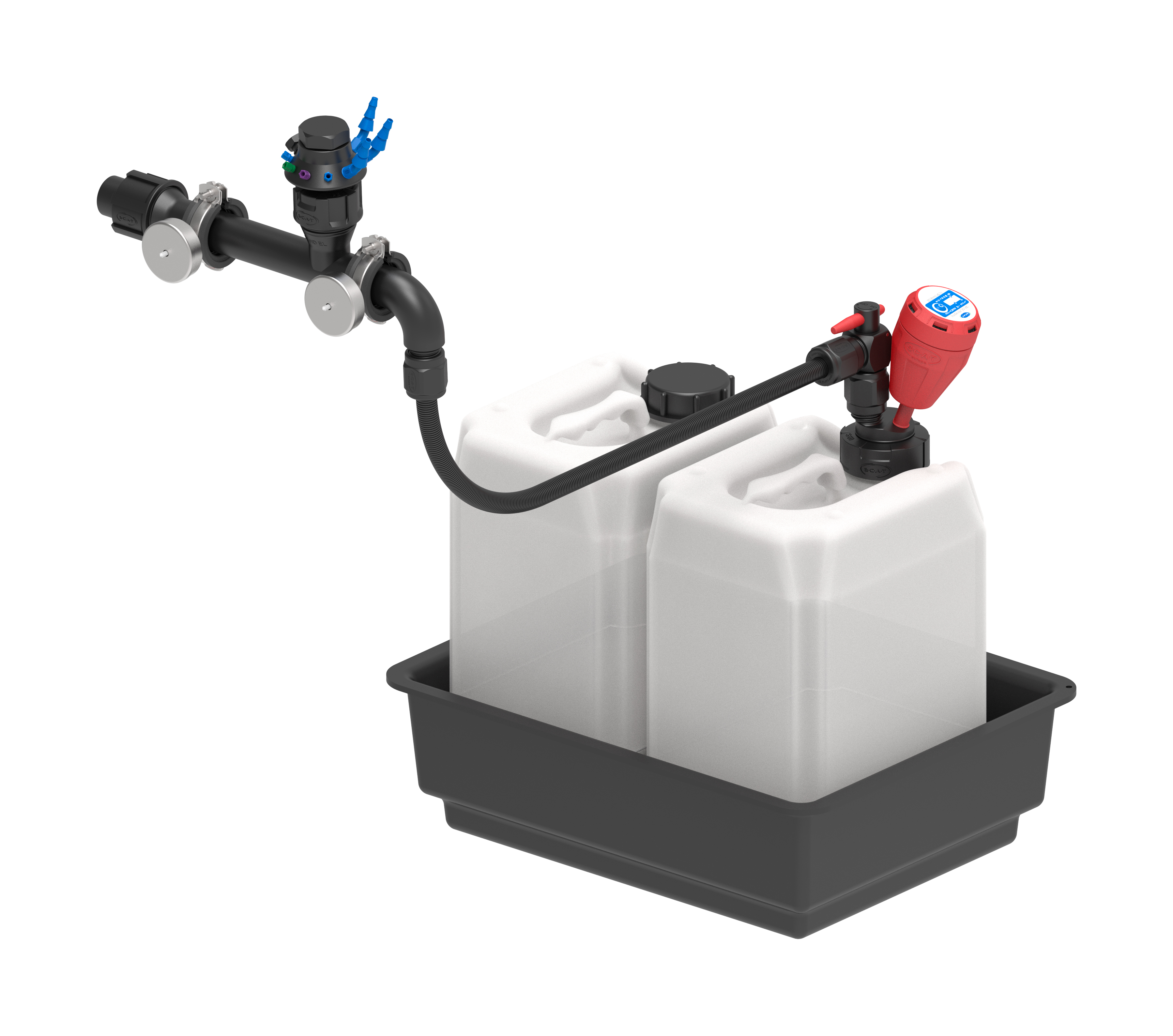

SymLine Bundle 1w (Wall mounted for 1-2 HPLC)

Product no.: 750310

SymLine FLEX Bundle 1w Kit includes the following1x Basic 32 pipe, PE-HD electrostatic conductive, 1x GL 45 (m), 1x GL 25 (m), pipe connection (w), length: 310mm, tensile strength (Rm) = 400 N, tightening torque = 4 Nm 1x SymLine FlexTube, Length 1000 mm - flexible adaptable 1x Shut-off, angled, 1x Exhaust filter M, V3.0 1x Offset adapter 90° for exhaust filter 1x Safety Waste Cap, S60/61, GL25 (m), connector for exhaust filter, PE-HD electrostatic conductive 2x 10L / 2.64 Gallon Multilayer HDPE container with handle, natural color. UN-Y approved, meets FDA standards1x Collecting tray with base insert1x Grounding cable1x LISA Safety Waste Collector, GL45, collector for HPLC waste, 4x PFA-fittings for capillaries with (OD) 1,6/2,3/3,2 mm, 3x tube connector for tubes with (ID) 5,0 - 11,5mm2x SymLine FLEX Wall mount

$2,387.96*

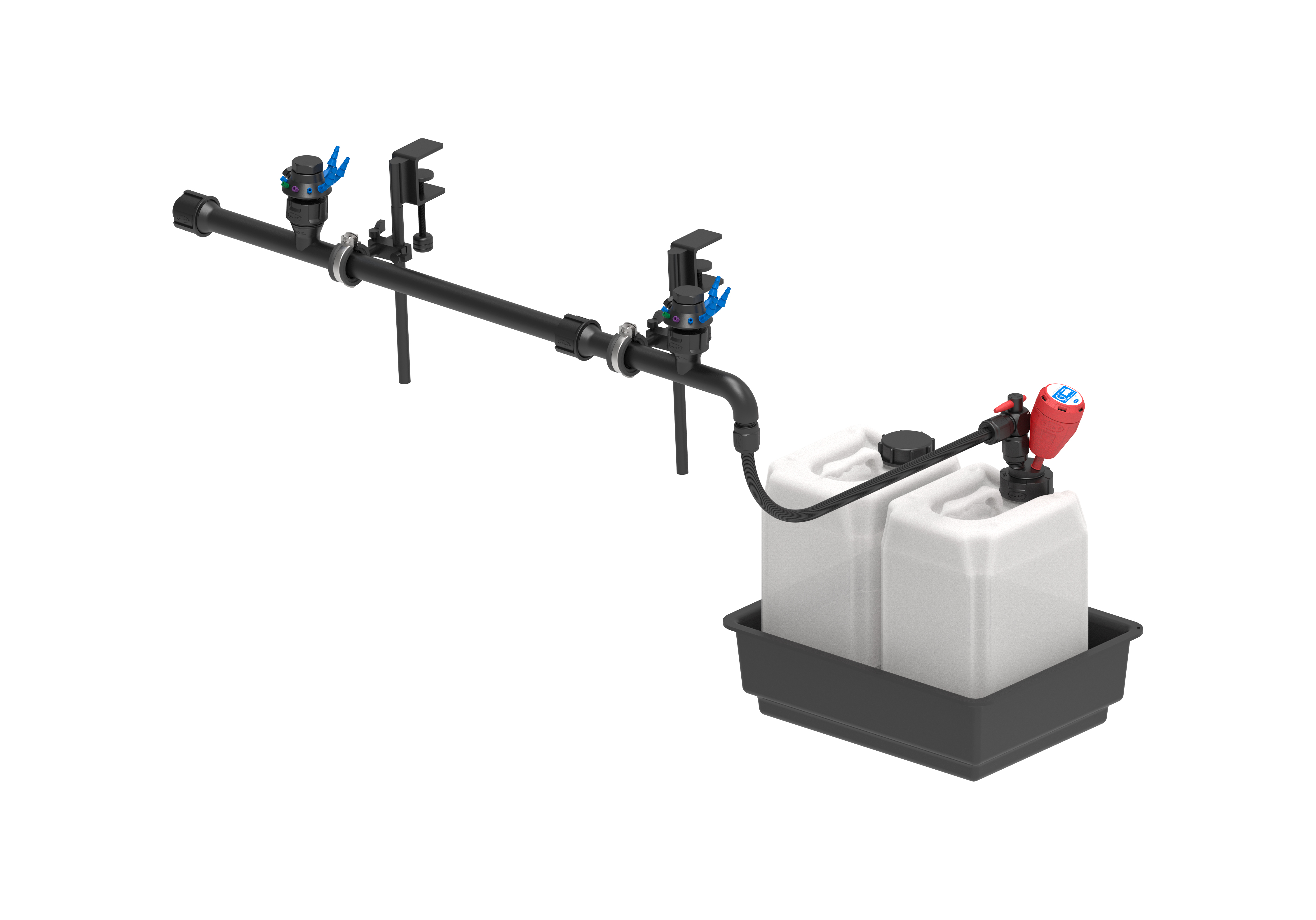

SymLine Bundle 2t (Table mounted for 3-4 HPLC)

Product no.: 750301

SymLine FLEX Bundle 2t Kit includes the following1x Basic 32 pipe, PE-HD electrostatic conductive, 1x GL 45 (m), 1x GL 25 (m), pipe connection (w), length: 310mm, tensile strength (Rm) = 400 N, tightening torque = 4 Nm 1x SymLine FLEX - Extension 2, 1x GL45 (m), length 600mm1x SymLine FlexTube, Length 1000 mm - flexible adaptable 1x Shut-off, angled, 1x Exhaust filter M, V3.0 1x Offset adapter 90° for exhaust filter 1x Safety Waste Cap, S60/61, GL25 (m), connector for exhaust filter, PE-HD electrostatic conductive 2x 10L / 2.64 Gallon multilayer HDPE container with handle, natural color. UN-Y approved, meets FDA standards1x Collecting tray with base insert 1x Grounding cable 2x LISA Safety Waste Collector, GL45, collector for HPLC waste, 4x PFA-fittings for capillaries with (OD) 1,6/2,3/3,2 mm, 3x tube connector for tubes with (ID) 5,0 - 11,5mm2x SymLine FLEX Table mount

$3,286.49*

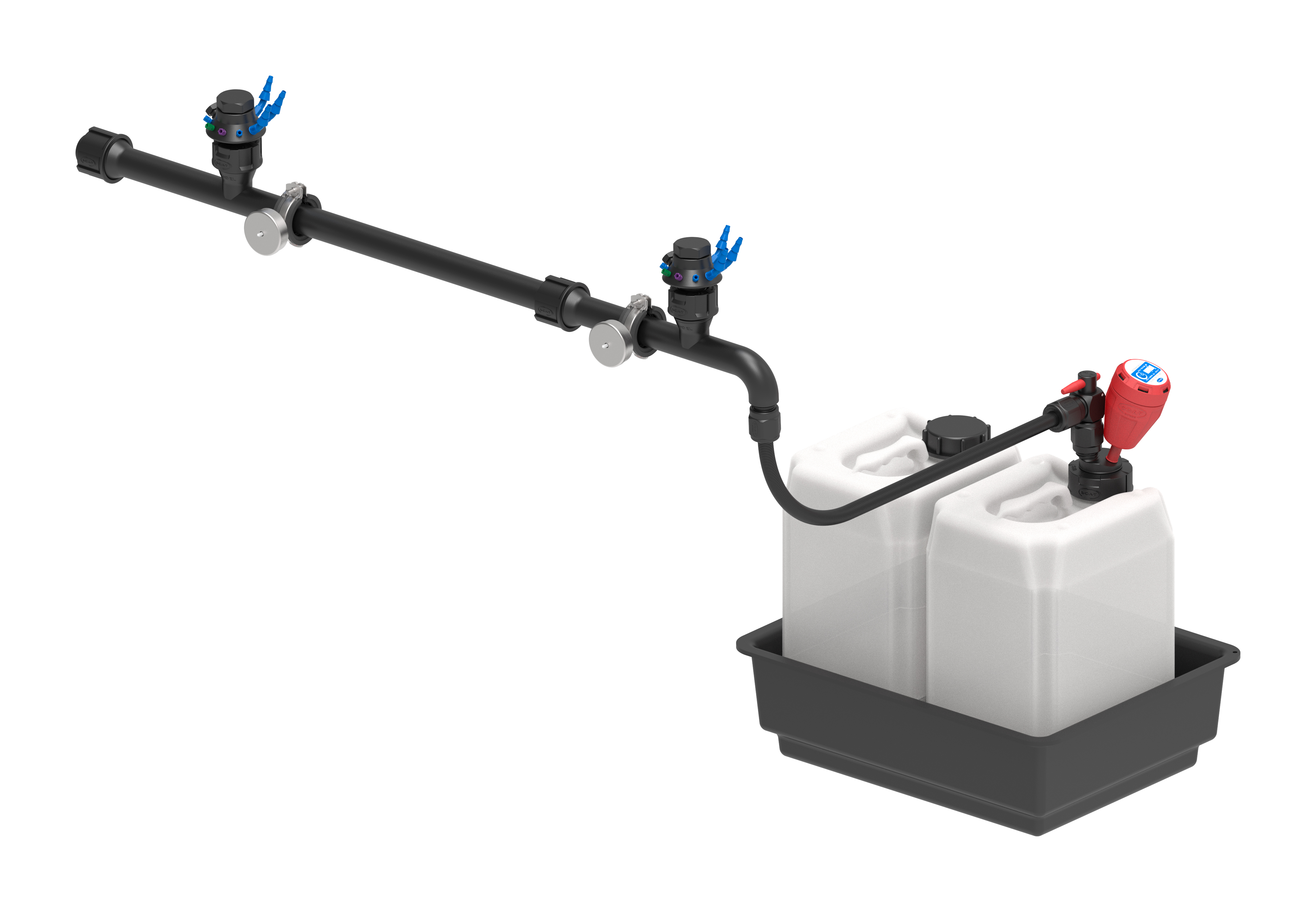

SymLine Bundle 2w (Wall mounted for 3-4 HPLC)

Product no.: 750311

SymLine FLEX Bundle 2w Kit includes the following1x Basic 32 pipe, PE-HD electrostatic conductive, 1x GL 45 (m), 1x GL 25 (m), pipe connection (w), length: 310mm, tensile strength (Rm) = 400 N, tightening torque = 4 Nm 1x SymLine FLEX - Extension 2, 1x GL45 (m), length 600mm1x SymLine FlexTube, Length 1000 mm - flexible adaptable 1x Shut-off, angled, 1x Exhaust filter M, V3.0 1x Offset adapter 90° for exhaust filter 1x Safety Waste Cap, S60/61, GL25 (m), connector for exhaust filter, PE-HD electrostatic conductive 2x 10L / 2.64 Gallon multilayer HDPE container with handle, natural color. UN-Y approved, meets FDA standards1x Collecting tray with base insert 1x Grounding cable 2x LISA Safety Waste Collector, GL45, collector for HPLC waste, 4x PFA-fittings for capillaries with (OD) 1,6/2,3/3,2 mm, 3x tube connector for tubes with (ID) 5,0 - 11,5mm2x SymLine FLEX Wall mount

$3,037.72*

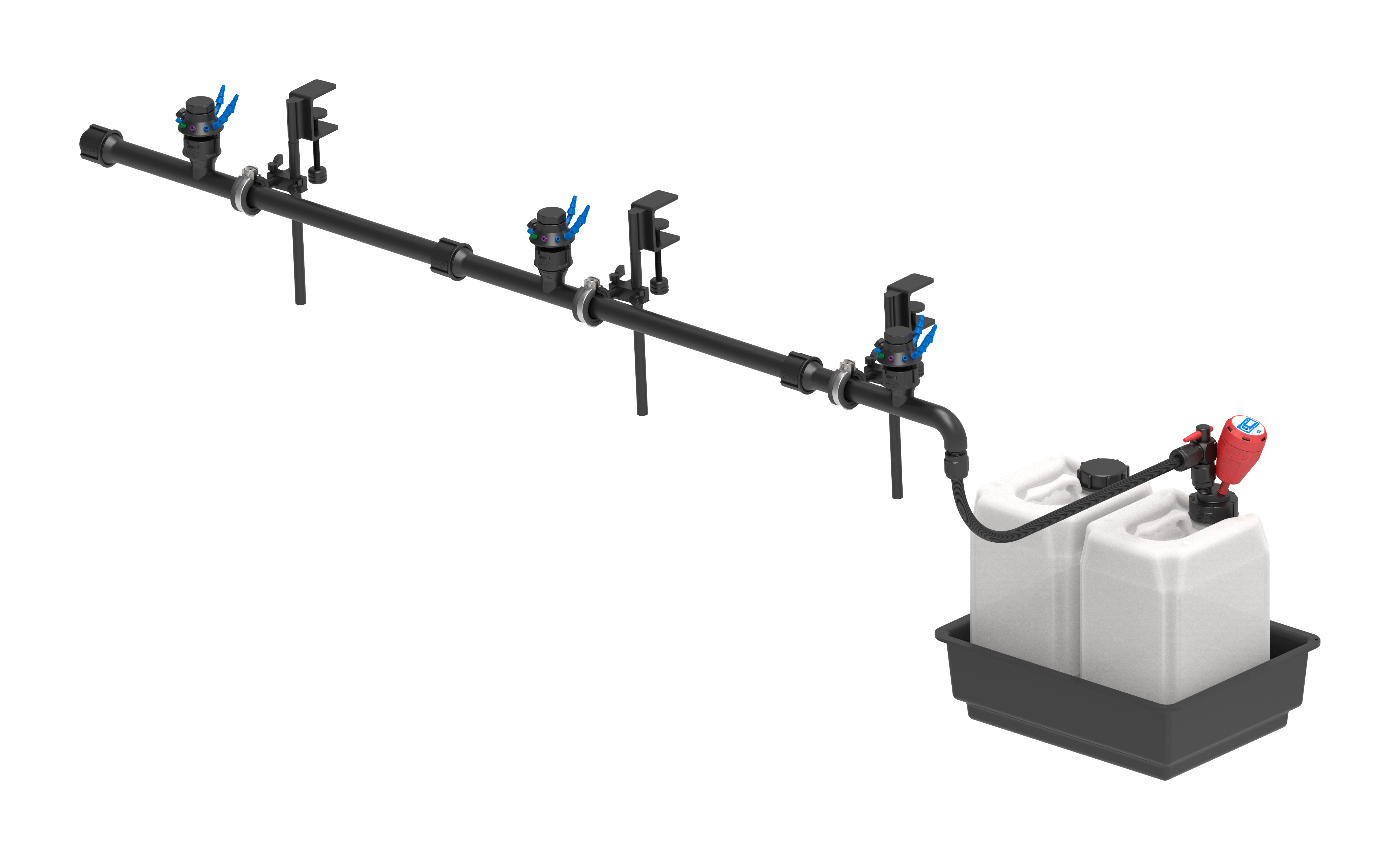

SymLine Bundle 3t (Table mounted for 5-6 HPLC)

Product no.: 750302

SymLine FLEX Bundle 3t Kit includes the following1x Basic 32 pipe, PE-HD electrostatic conductive, 1x GL 45 (m), 1x GL 25 (m), pipe connection (w), length: 310mm, tensile strength (Rm) = 400 N, tightening torque = 4 Nm 2x SymLine FLEX - Extension 2, 1x GL45 (m), length 600mm1x SymLine FlexTube, Length 1000 mm - flexible adaptable 1x Shut-off, angled, 1x Exhaust filter M, V3.0 1x Offset adapter 90° for exhaust filter 1x Safety Waste Cap, S60/61, GL25 (m), connector for exhaust filter, PE-HD electrostatic conductive 2x 10L / 2.64 Gallon multilayer HDPE container with handle, natural color. UN-Y approved, meets FDA standards1x Collecting tray with base insert 1x Grounding cable 3x LISA Safety Waste Collector, GL45, collector for HPLC waste, 4x PFA-fittings for capillaries with (OD) 1,6/2,3/3,2 mm, 3x tube connector for tubes with (ID) 5,0 - 11,5mm3x SymLine FLEX Table mount

$3,959.93*

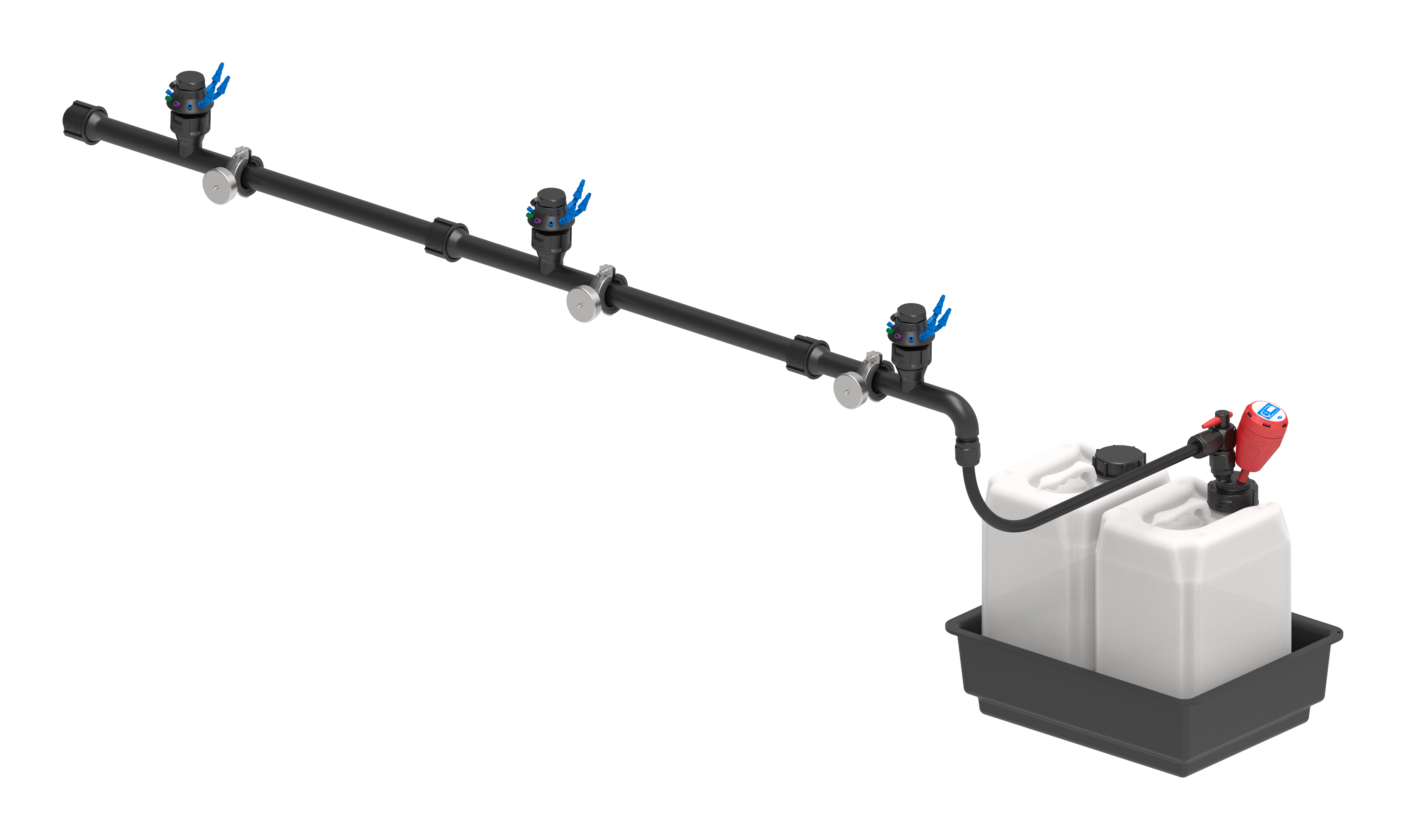

SymLine Bundle 3w (Wall mounted for 5-6 HPLC)

Product no.: 750312

SymLine FLEX Bundle 3w Kit includes the following1x Basic 32 pipe, PE-HD electrostatic conductive, 1x GL 45 (m), 1x GL 25 (m), pipe connection (w), length: 310mm, tensile strength (Rm) = 400 N, tightening torque = 4 Nm 2x SymLine FLEX - Extension 2, 1x GL45 (m), length 600mm1x SymLine FlexTube, Length 1000 mm - flexible adaptable 1x Shut-off, angled, 1x Exhaust filter M, V3.0 1x Offset adapter 90° for exhaust filter 1x Safety Waste Cap, S60/61, GL25 (m), connector for exhaust filter, PE-HD electrostatic conductive 2x 10L / 2.64 Gallon multilayer HDPE container with handle, natural color. UN-Y approved, meets FDA standards1x Collecting tray with base insert 1x Grounding cable 3x LISA Safety Waste Collector, GL45, collector for HPLC waste, 4x PFA-fittings for capillaries with (OD) 1,6/2,3/3,2 mm, 3x tube connector for tubes with (ID) 5,0 - 11,5mm3x SymLine FLEX Wall mount

$3,736.48*

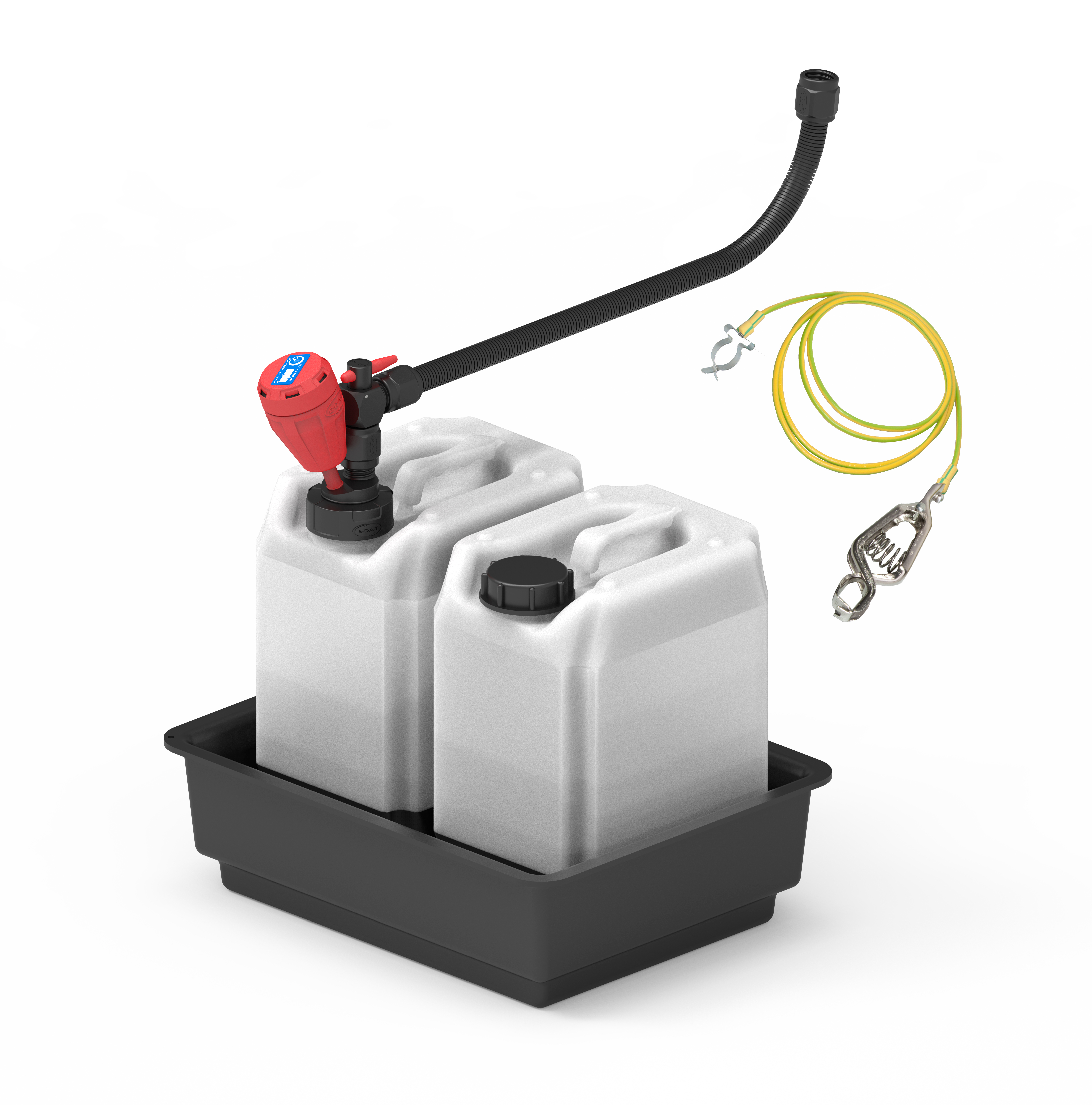

SymLine FLEX - Starter Set USA

Product no.: 106699

SymLine FLEX - Starter Set USA, consisting of: 1x SymLine FlexTube, Length 1000 mm - flexible adaptable, 1x Shut-off, angled, 1x Exhaust filter M, V3.0, economy package, 1x Offset adapter 90° for exhaust filter, 1x Safety Waste Cap, S60/61, GL25 (m), connector for exhaust filter, PE-HD electrostatic conductive, 1x Collecting tray with base insert, 1x Grounding cable

$1,616.92*

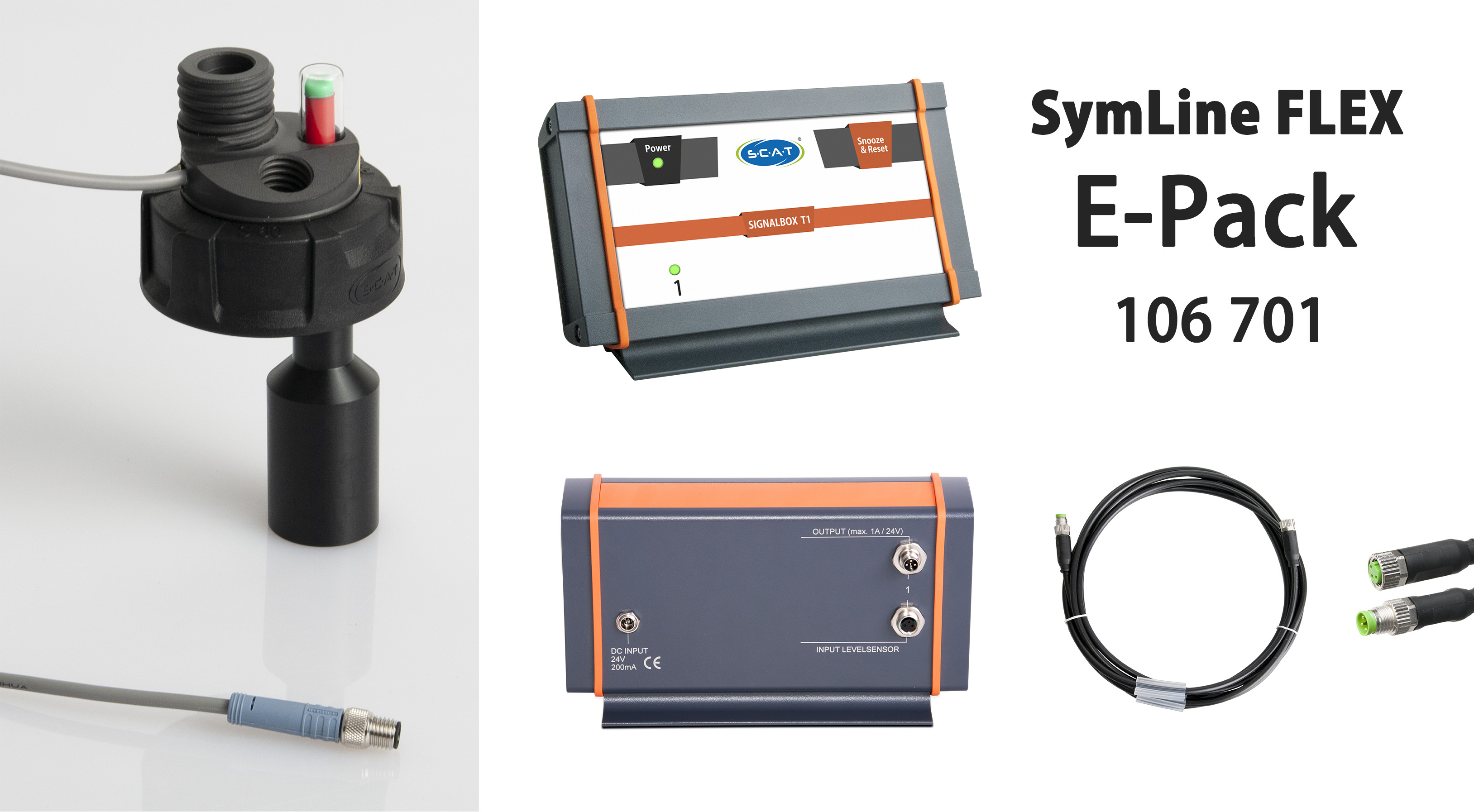

SymLine FLEX- E-Pack for Starter Set USA

Product no.: 106701

SymLine FLEX- E-Pack for Starter Set USA, Safety Waste Cap S60/61, GL25 (m) with electrical level control, PE-HD electrostatic conductive, Signal cable for electronic level control, length = 3 m, Signalbox T1 - US model

$1,122.93*

SymLine LISA Waste Funnel Bundle - Type 10

Product no.: 750354

SymLine LISA Waste Funnel BundleKit includes the following1x LISA Waste Cap, V3.0, S60/61, Electrostatic conductive, 4x 1.6/2.3/3.2 mm OD, 4x PFA-blind plug, 3x 5.0-11.5mm ID, 3x PTFE blind plug, connector for exhaust filter1x LISA Funnel Extension, Electrostatic conductive, grounding cable1x Exhaust Filter M, V3.0, with splash guard and change indicator, 6 month life1x 10L / 2.64 Gallon multilayer container with handle, HDPE, natural color, UN-Y approved, meets FDA standards.

$550.67*

SymLine LISA Waste Funnel Bundle - Type 20

Product no.: 750355

SymLine LISA Waste Funnel BundleKit includes the following1x LISA Waste Cap, V3.0, S60/61, Electrostatic conductive, 4x 1.6/2.3/3.2 mm OD, 4x PFA-blind plug, 3x 5.0-11.5mm ID, 3x PTFE blind plug, connector for exhaust filter1x LISA Funnel Extension, Electrostatic conductive, grounding cable1x Exhaust Filter M, V3.0, with splash guard and change indicator, 6 month life1x 20L / 5.28 Gallon multilayer container with handle, HDPE, natural color, UN-Y approved, meets FDA standards.

$574.39*

SymLine Marco Waste Funnel Bundle - Type 10

Product no.: 750350

SymLine Marco Waste Funnel BundleKit includes the following1x Funnel with Lid "MARCO", V2.0, S60/61, PE-HD Electrostatic Conductive, with removable sieve and grounding cable, Funnel Diameter 157mm OD (140mm ID)1x 10L / 2.64 Gallon multilayer container with handle, HDPE, natural color, UN-Y approved, meets FDA standards.

$196.74*

SymLine Marco Waste Funnel Bundle - Type 20

Product no.: 750351

SymLine Marco Waste Funnel BundleKit includes the following1x Funnel with Lid "MARCO", V2.0, S60/61, PE-HD Electrostatic Conductive, with removable sieve and grounding cable, Funnel Diameter 157mm OD (140mm ID)1x 20L / 5.28 Gallon multilayer container with handle, HDPE, natural color, UN-Y approved, meets FDA standards.

$220.46*
