Filling Units

Waste liquids are filled/poured into these. The filling units are mounted in space-saving fashion within your workspace. Available as funnels/sinks for manual filling, or as a special HPLC connection, for direct connection to your waste tubing. Use our configurator for an easy selecting of products:

Overview Filling Units

SymLine System Catalogue Chapter: Filling Units

 > Download PDF
Consultation & Contact

Questions about products or installation? Contact the SymLine Team:
 +1 704-438-9477

Filter / Configurator

Filter
4-in-1 Sammler, "Nicole", GL45
4-in-1 collector, "Nicole", GL45
Product no.: 306509
4-in-1 collector, "Nicole", PE-HD electrostatic conductive, 1x GL45 (f) to 4x GL45 (m), incl. blind cap for HPLC connection

$338.93*
Blindstopfen, PFA , Typ 3
Blind Plug, PFA, Type 3
Product no.: 160502
Blind plug, PFA, for capillary connector, UNF1/4" 28G, PFA, colorless, quantity=5 pieces

Content: 5 Piece ($6.73* / 1 Piece)

$33.64*

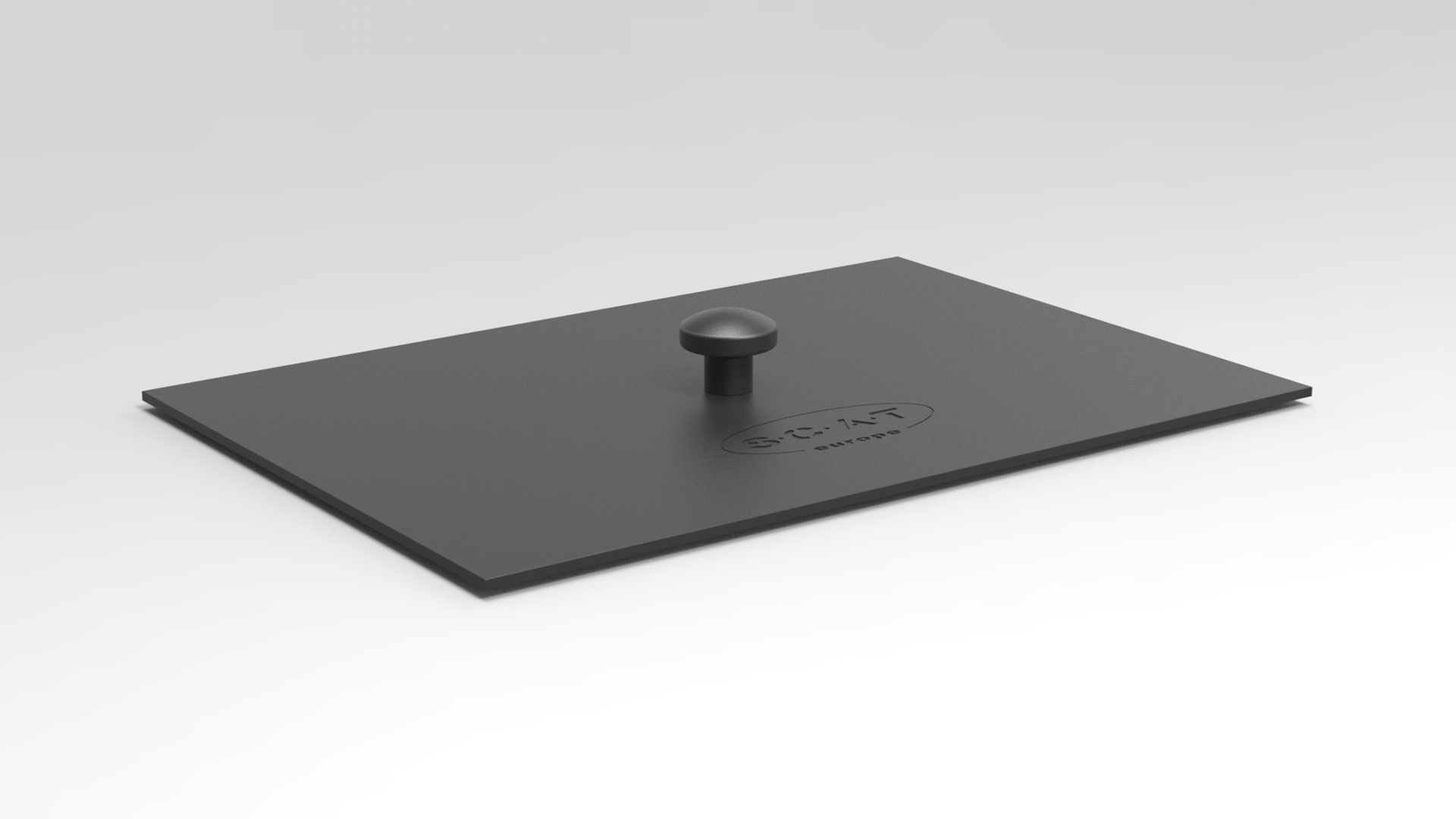

Abdeckung für Trichterbecken
Cover for Sink
Product no.: 117993
Cover for sink, PE-HD electrostatic conductive (117989)

$226.32*
Tischdurchführung, (AD) 32 mm
Desktop mount, (OD) 32 mm
Product no.: 106450
Desktop mount with  (OD) 32 mm to upper thread GL45 (m), PE-HD electrostatic conductive, for desktop borehole of (OD) 35mm with counter nut

$128.15*
Tischdurchführung, GL25 (m)
Desktop mount, GL25 (m)
Product no.: 106455
Desktop mount with lower thread GL25 (m) to upper thread GL45 (m), PE-HD electrostatic conductive, for desktop borehole (OD) 35mm with counter nut

$205.73*
Trichter "MARCO", V2.0, GL45, el, Typ 1
Funnel with lid "MARCO", V2.0, GL45, el, Type 1
Product no.: 306980
Funnel with lid "MARCO", V2.0, GL45, PE-HD electrostatic conductive, with removable sieve and earthing cable, funnel-diameter 157 mm OD (140mm ID)

$140.71*
HPLC Tischdurchführung, Typ 2
HPLC desktop feedthrough, Type 2
Product no.: 106669
HPLC-Desktop mount:4x UNF 1/4" 28G, including fittings for capillary diameter (OD), Ø 2,3/3,2 mm2x NPT 1/8", including tube connector for (ID) Ø 5,0 - 11,5 mmpad diameter 53 mmwith 32mm OD pipePE-HD electrostatic conductive

$345.37*
HPLC-Tischdurchführung, Typ 2
HPLC-Desktop mount, Type 2
Product no.: 106412
HPLC-Desktop mount:6x UNF 1/4" 28G, including fittings for capillary diameter (OD), Ø 2,3/3,2 mm1x NPT 1/8", including tube connector for (ID) Ø 5,0 - 11,5 mmpad diameter 53 mmwith connection to pipe (OD) 32 mmPE-HD electrostatic conductive

$345.62*
HPLC-Tischdurchführung, Typ 3
HPLC-Desktop mount, Type 3
Product no.: 106616
HPLC-Desktop mount:4x UNF 1/4" 28G, including fittings for capillary diameter (OD), Ø 2,3/3,2 mm2x NPT 1/8", including tube connector for (ID) Ø 5,0 - 11,5 mmpad diameter 53 mmwith connecting thread GL25 (m)PE-HD electrostatic conductive

$304.81*

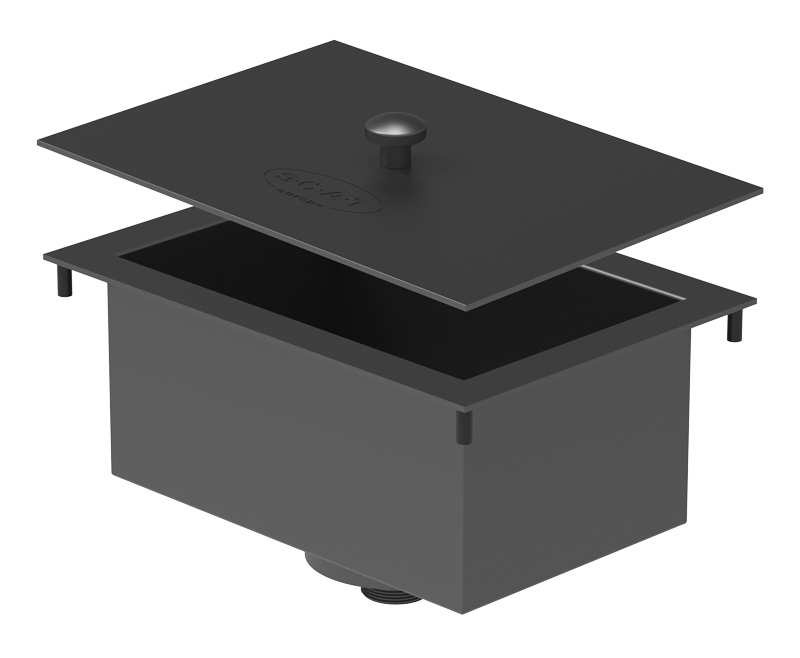

Trichterbecken mit Abfluss
Lab sink with drain and mounting sleeve
Product no.: 117989
Lab sink with drain and mounting sleeve, G 1 1/2" OD thread, PE-HD electrostatic conductive, incl. cover and grounding cable, dimensions (W x H x D): 393 x 273 x 203 mm, wall thickness: 4 mm

$3,172.49*
Becken, PP-el
Lab sink, PP-el
Product no.: 118003
Lab sink with waste connection 1½", suitable for drop-on and undermount installation Internal dimensions 400x400x250mm, Wall thickness 3,8mm, made of PP-el electrostatic conductive incl. PP strainer

$451.15*
Rückwanddurchführung, Typ 1
Rear wall mount, Type 1
Product no.: 106601
Rear wall mount,  upper thread GL45 (m), lower thread GL 25 (m), with mounting-flange, long shaft for XL-funnel (117633), with two bends of 90° and (OD) 32mm, PE-HD electrostatic conductive

$468.49*
Rückwanddurchführung, Typ 2
Rear wall mount, Type 2
Product no.: 106612
Rear wall mount, upper thread GL45 (m), lower thread GL 25 (m), PE-HD electrostatic conductive, inkl. mounting flange for rear wall borehole of 34 - 45 mm

$268.49*
Safety Waste Cap II + 1, V2.0, GL45, Typ 3
Safety Waste Cap II + 1, V2.0, GL45, Type 3
Product no.: 306497
Safety Waste Cap II + 1, V2.0, GL45, collector for HPLC waste, 2x PFA-fittings for capillaries with (OD) 1,6/2,3/3,2 mm, 1x tube connector for tube with (ID) 5,0 - 11,5mm

$104.56*
Safety Waste Cap II, V2.0, GL45, Typ 7
Safety Waste Cap II, V2.0, GL45, Type 7
Product no.: 306489
Safety Waste Cap II, V2.0, GL45, collector for HPLC waste, 2x PFA-fittings for capillaries with (OD) 1,6/2,3/3,2 mm

$90.89*
Safety Waste Cap III, V2.0, GL45, Typ 6
Safety Waste Cap III, V2.0, GL45, Type 6
Product no.: 306491
Safety Waste Cap III, V2.0, GL45, collector for HPLC waste, 3x PFA-fittings for capillaries with (OD)  1,6/2,3/3,2 mm

$94.13*
Safety Waste Cap IV, V2.0, GL45, Typ 1
Safety Waste Cap IV, V2.0, GL45, Type 1
Product no.: 306493
Safety Waste Cap IV, V2.0, GL45, collector for HPLC waste, 4x PFA-fittings for capillaries with (OD) 1,6/2,3/3,2 mm

$103.43*
Safety Waste Cap V, V2.0, GL45, Typ 4
Safety Waste Cap V, V2.0, GL45, Type 4
Product no.: 306494
Safety Waste Cap V, V2.0, GL45,  collector for HPLC waste, 5x PFA-fittings for capillaries with (OD) 1,6/2,3/3,2 mm

$122.03*
Safety Waste Cap VII, V2.0, GL45, Typ 5
Safety Waste Cap VII, V2.0, GL45, Type 5
Product no.: 306492
Safety Waste Cap VII, V2.0, GL45, collector for HPLC waste, 7x PFA-fittings for capillaries with (OD) 1,6/2,3/3,2 mm

$179.80*
SymLine FLEX - Basic 32er Rohr
SymLine FLEX - Basic 32 pipe
Product no.: 106688
SymLine FLEX - Basic 32 pipe, PE-HD electrostatic conductive, 1x GL 45 (m), 1x GL 25 (m), pipe connection (w), Blind plug included, length: 310mm, tensile strength (Rm) = 400 N, tightening torque = 4 Nm

$632.71*
SymLine FLEX - Verlängerung 2
SymLine FLEX - Extension 2
Product no.: 106689
SymLine FLEX - Extension 2, PE-HD electrostatic conductive, 1x GL 45 (m), length: 600mm, tensile strength (Rm) = 400 N, tightening torque = 4 Nm

$427.19*

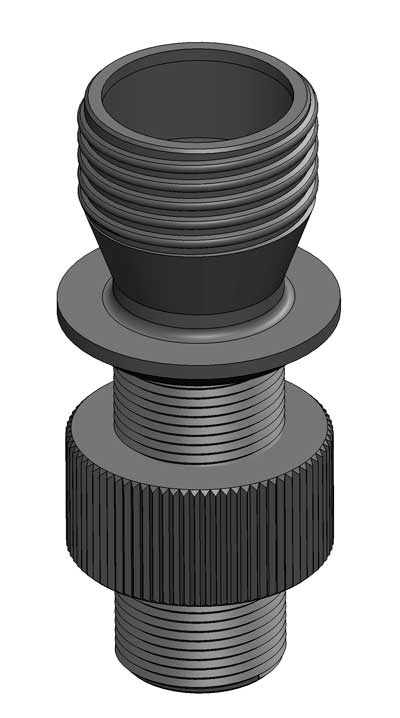

Tischdurchführung G1/2"
Table gland G1/2"
Product no.: 106400
Desktop mount accessory with G 1/2" ID (f), 33,5 mm OD on GL 45 (m), PE-HD electrostatic conductive incl. gasket and lock nut

$219.25*

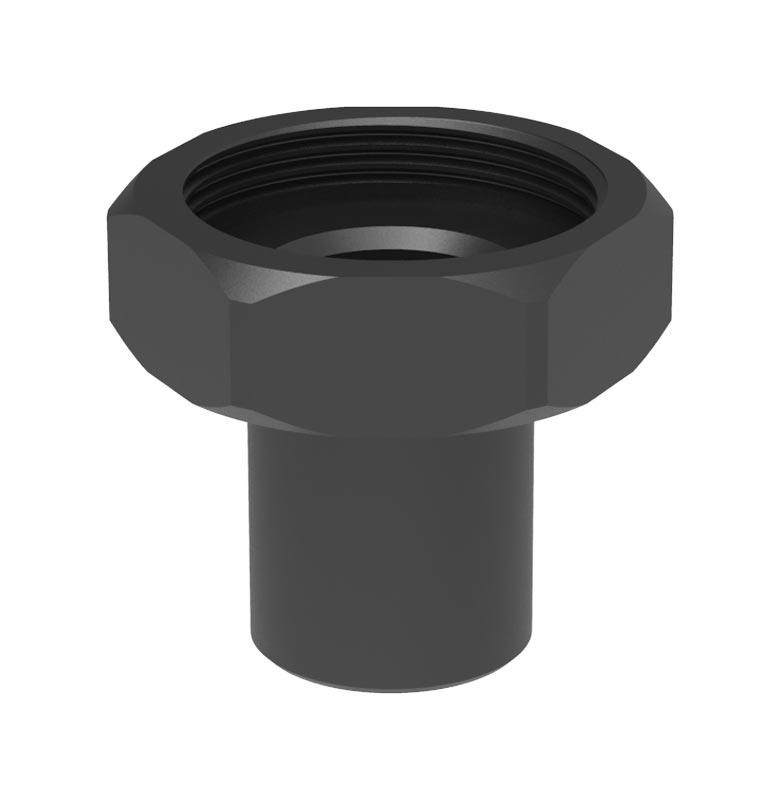

Gewindeadapter, Typ 14
Thread adapter, Type 14
Product no.: 106434
Thread adapter, G 1 1/2" (f) to  (OD) 32 mm, PE-HD electrostatic conductive

$99.50*
Schlauch-Olive, gerade, 6 - 8 mm
Tube connector, straight, 6 - 8 mm
Product no.: 117816
Tube connector, straight, 6 - 8 mm ID, PP, UNF 1/4" 28G, suitable for capillary port

$16.70*
