SymLine FLEX

The flexible waste disposal system for HPLC workstations
· Simple, non-destrictive installation
Table or wall mounting possible
· Do-It-Yourself modular system
The system is designed for its suitability for your workplace. A minimum of components – many applications!
· Can be flexibly integrated at any time
You can react quickly to any changes in your laboratory – whether it concerns additional workplaces or a reinstallation at another place: the system can be made to fit!
· Central collection point for solvent waste
No obstruction due to containers standing in the working area. Liquids are safely collected, at one central point.

· Anti-static and resistant to solvents
Electrically conductive plastic ensures for secure grounding/earthing, to avoid danger of ignition.

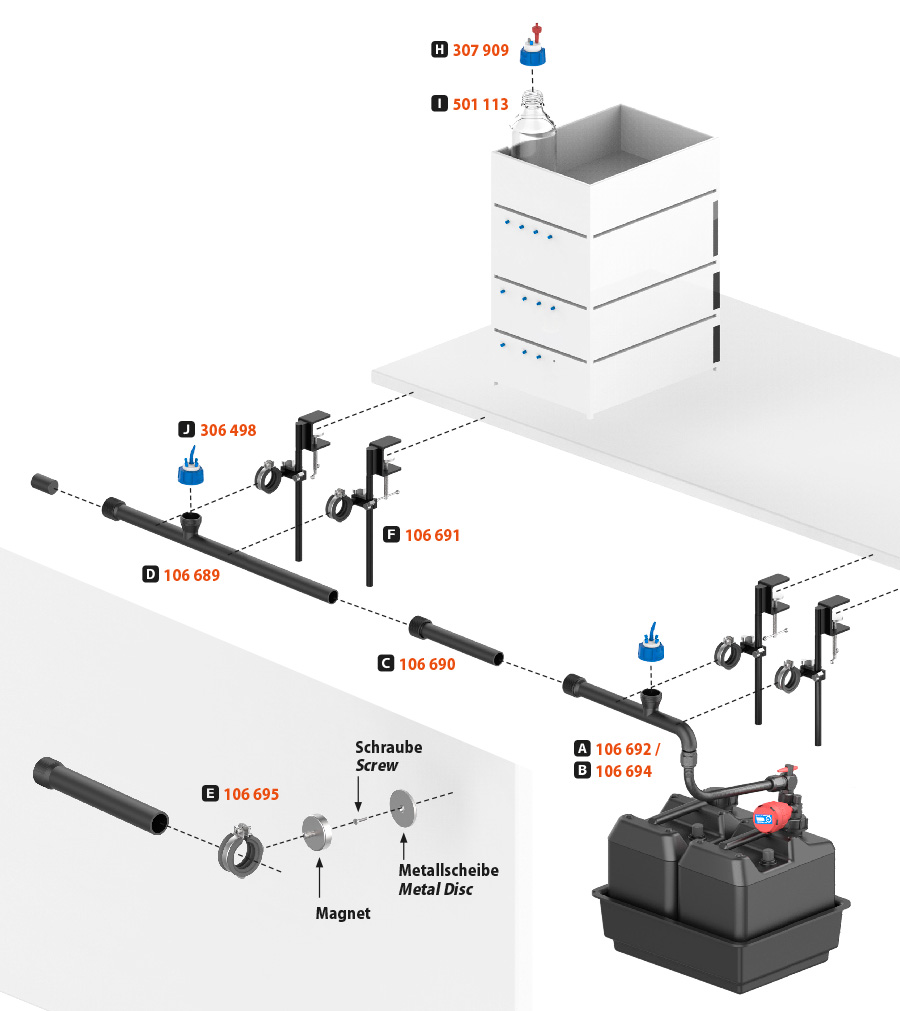

Installation example:
The modular system can be adapted to suit your workplace!
You only require a few basic elements, in order fully equip you laboratory.
Click on the picture here, in order to enlarge it!

Media: Photo Galerie / Video



Overview SymLine FLEX

SymLine System Catalogue Chapter: SymLine FLEX

 > Download PDF
Consultation & Contact

Questions about products or installation? Contact the SymLine Team:
 +1 704-438-9477

Filter / Configurator

Filter

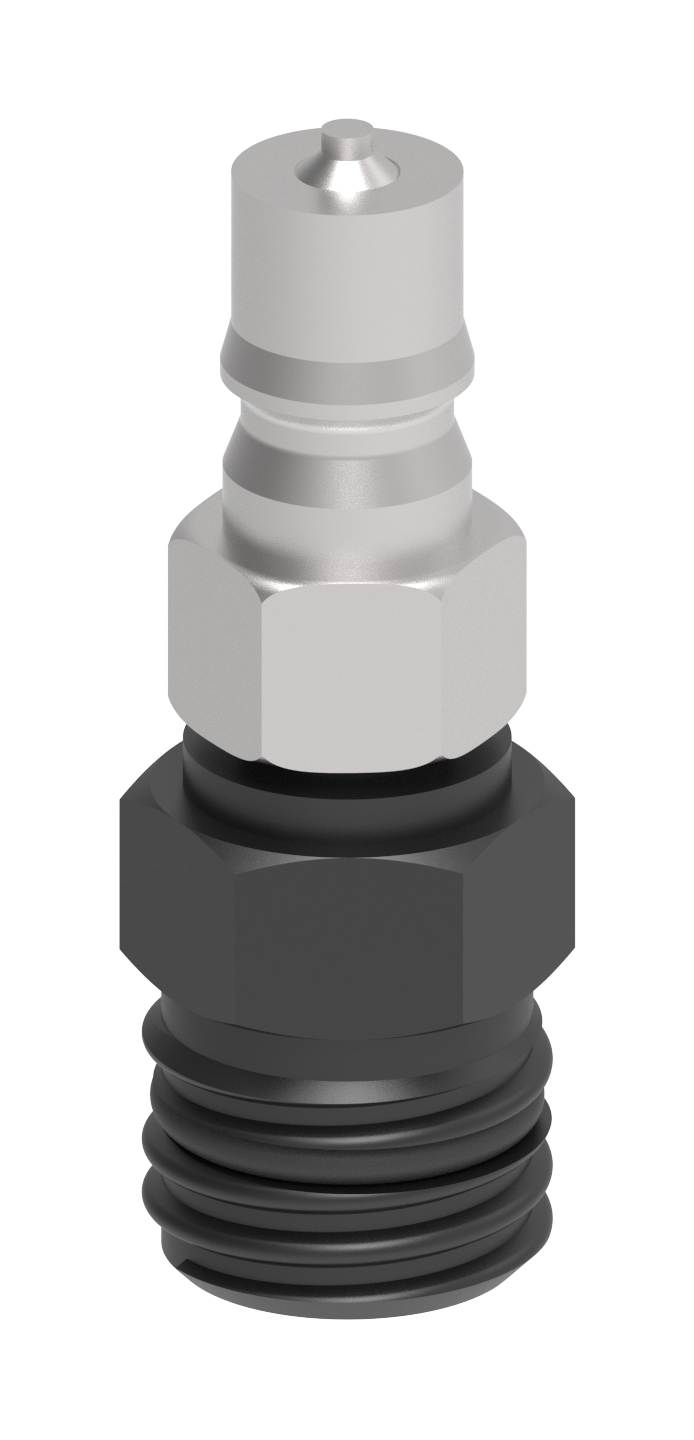

GL25 Adapter for Justrite Container, Flex tube to Stainless
GL25 Adapter for Justrite Container, Flex tube to Stainless
Product no.: 160529
Adapter for justrite stainless steel connection canisters. Allows for the connection of GL25  SymLine Flex tube to stainless steel coupling.

$189.00*
Safety Waste Cap II + 1, V2.0, GL45, Typ 3
Safety Waste Cap II + 1, V2.0, GL45, Type 3
Product no.: 306497
Safety Waste Cap II + 1, V2.0, GL45, collector for HPLC waste, 2x PFA-fittings for capillaries with (OD) 1,6/2,3/3,2 mm, 1x tube connector for tube with (ID) 5,0 - 11,5mm

$104.56*
Safety Waste Cap II, V2.0, GL45, Typ 7
Safety Waste Cap II, V2.0, GL45, Type 7
Product no.: 306489
Safety Waste Cap II, V2.0, GL45, collector for HPLC waste, 2x PFA-fittings for capillaries with (OD) 1,6/2,3/3,2 mm

$90.89*
Safety Waste Cap III, V2.0, GL45, Typ 6
Safety Waste Cap III, V2.0, GL45, Type 6
Product no.: 306491
Safety Waste Cap III, V2.0, GL45, collector for HPLC waste, 3x PFA-fittings for capillaries with (OD)  1,6/2,3/3,2 mm

$94.13*
Safety Waste Cap IV, V2.0, GL45, Typ 1
Safety Waste Cap IV, V2.0, GL45, Type 1
Product no.: 306493
Safety Waste Cap IV, V2.0, GL45, collector for HPLC waste, 4x PFA-fittings for capillaries with (OD) 1,6/2,3/3,2 mm

$103.43*
Safety Waste Cap IV, V2.0, GL45, Typ 2
Safety Waste Cap IV, V2.0, GL45, Type 2
Product no.: 306498
Safety Waste Cap IV, V2.0, GL45, collector for HPLC waste, 4x PFA-fittings for capillaries with (OD) 1,6/2,3/3,2 mm, 1x tube connector for tubes with (ID) 5,0 - 11,5mm

$128.37*
Safety Waste Cap V, V2.0, GL45, Typ 4
Safety Waste Cap V, V2.0, GL45, Type 4
Product no.: 306494
Safety Waste Cap V, V2.0, GL45,  collector for HPLC waste, 5x PFA-fittings for capillaries with (OD) 1,6/2,3/3,2 mm

$122.03*
Safety Waste Cap VII, V2.0, GL45, Typ 5
Safety Waste Cap VII, V2.0, GL45, Type 5
Product no.: 306492
Safety Waste Cap VII, V2.0, GL45, collector for HPLC waste, 7x PFA-fittings for capillaries with (OD) 1,6/2,3/3,2 mm

$179.80*

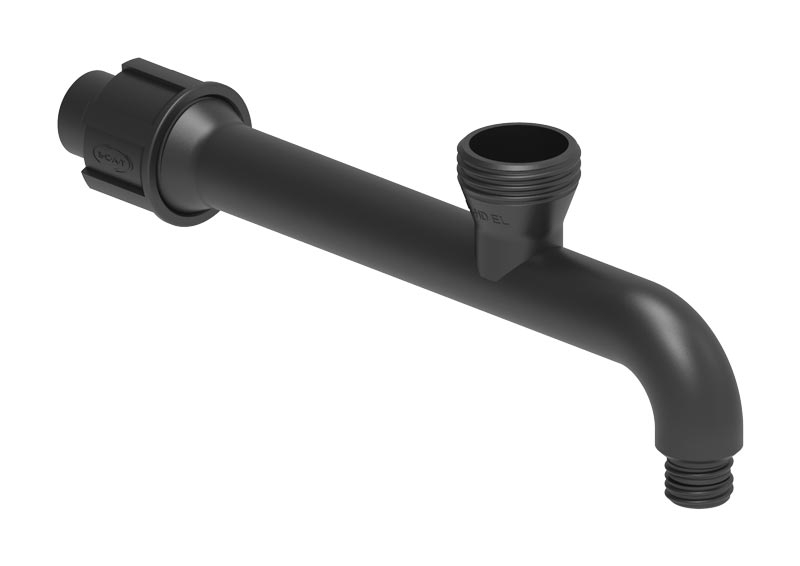

SymLine FLEX - Basic 32er Rohr
SymLine FLEX - Basic 32 pipe
Product no.: 106688
SymLine FLEX - Basic 32 pipe, PE-HD electrostatic conductive, 1x GL 45 (m), 1x GL 25 (m), pipe connection (w), Blind plug included, length: 310mm, tensile strength (Rm) = 400 N, tightening torque = 4 Nm

$632.71*
SymLine FLEX - Verlängerung 1
SymLine FLEX - Extension 1
Product no.: 106690
SymLine FLEX - Extension 1, PE-HD electrostatic conductive, length: 600mm, tensile strength (Rm) = 400 N, tightening torque = 4 Nm

$294.86*
SymLine FLEX - Verlängerung 2
SymLine FLEX - Extension 2
Product no.: 106689
SymLine FLEX - Extension 2, PE-HD electrostatic conductive, 1x GL 45 (m), length: 600mm, tensile strength (Rm) = 400 N, tightening torque = 4 Nm

$427.19*

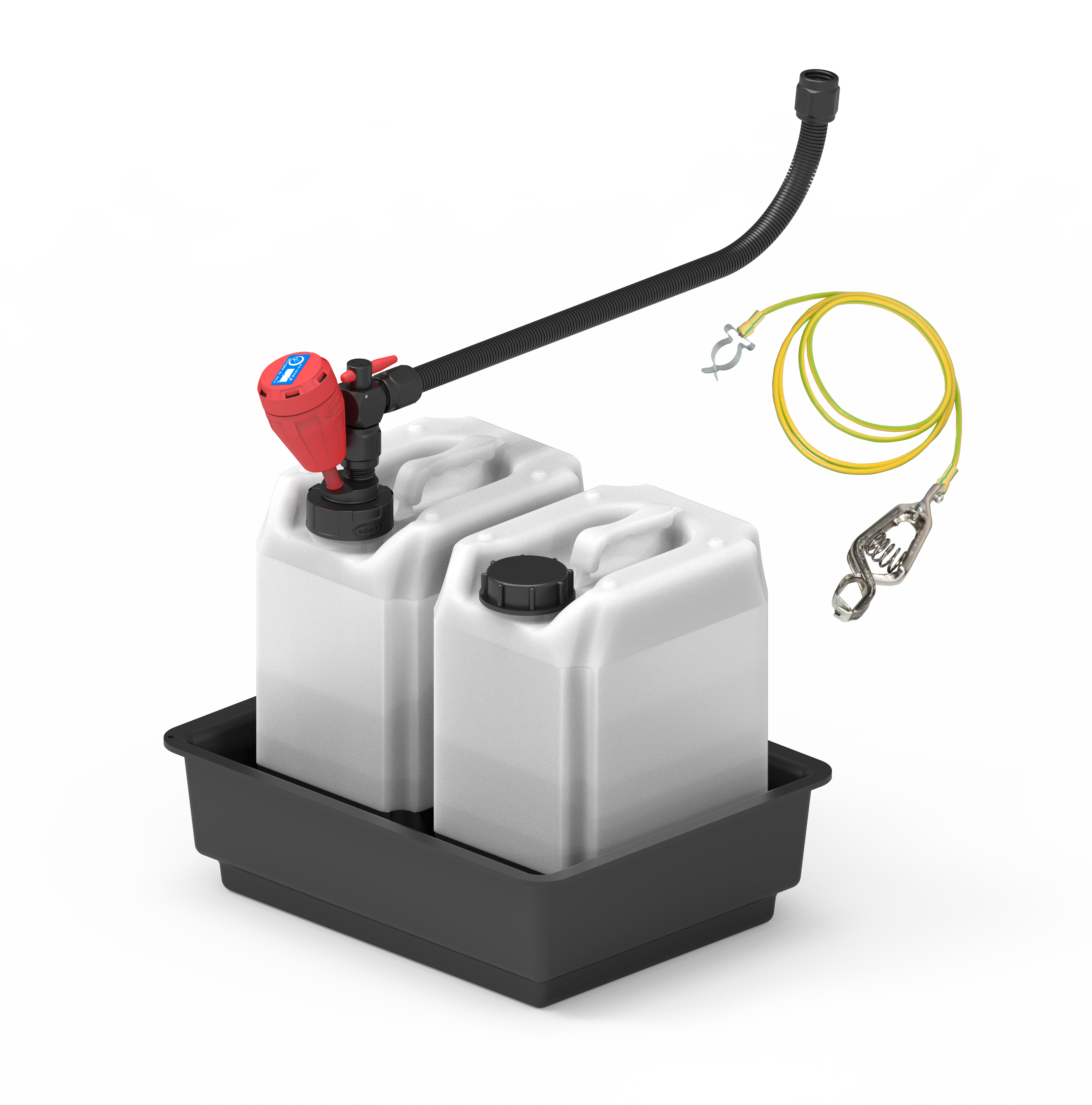

SymLine FLEX - Starter Set USA
SymLine FLEX - Starter Set USA
Product no.: 106699
SymLine FLEX -  Starter Set USA, consisting of: 1x SymLine FlexTube, Length 1000 mm - flexible adaptable, 1x Shut-off, angled, 1x Exhaust filter M, V3.0, economy package, 1x Offset adapter 90° for exhaust filter, 1x Safety Waste Cap, S60/61, GL25 (m), connector for exhaust filter, PE-HD electrostatic conductive, 1x Collecting tray with base insert, 1x Grounding cable

$1,616.92*
SymLine FLEX - Tischbefestigung
SymLine FLEX - Table mount
Product no.: 106691
SymLine FLEX - Table mount for piping system

$137.21*
SymLine FLEX - Wandbefestigung
SymLine FLEX - Wall mount
Product no.: 106695
SymLine FLEX - Wall mount for piping system

$54.45*
SymLine FLEX- E-Pack for Starter Set USA
SymLine FLEX- E-Pack for Starter Set USA
Product no.: 106701
SymLine FLEX- E-Pack for Starter Set USA, Safety Waste Cap S60/61, GL25 (m) with electrical level control, PE-HD electrostatic conductive, Signal cable for electronic level control, length = 3 m, Signalbox T1 - US model

$1,122.93*
