The Tubular System: safe attachment, optimum flow direction

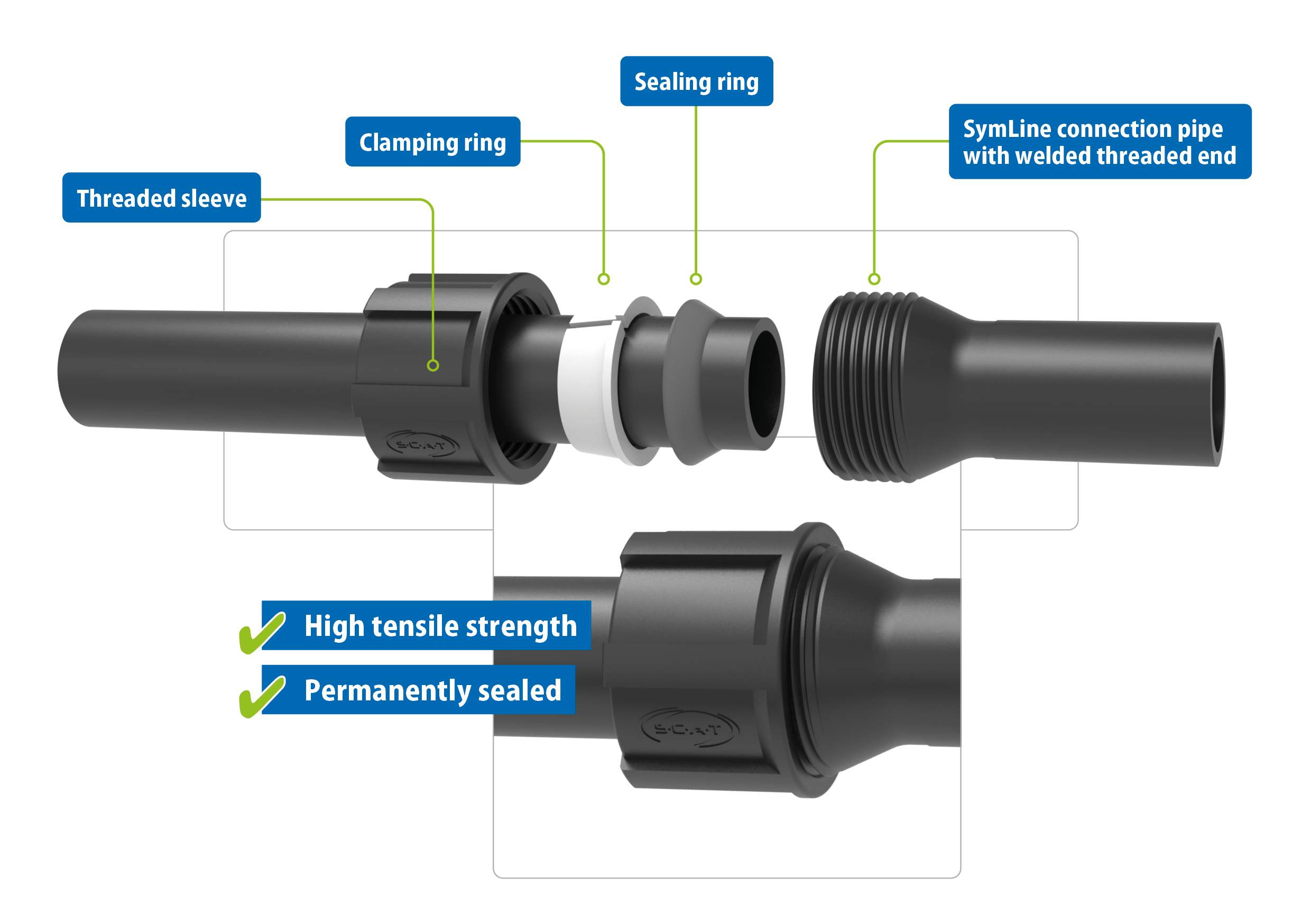

The SymLine FLEX tube extensions have a funnel-shaped threaded sleeve at one end and a smooth tube opening at the other. In order to tightly interconnect the tubular system, the threaded sleeve, clamping ring and sealing ring are simply pushed over the smooth end of one tube, and this is then firmly screwed on to the threaded part of the following extension piece ( i.e. on the other tube ). When done properly (tightening torque 5 Nm), the resulting connection will withstand a tensile force of 400 N. The system allows for optimum flow of waste liquids and prevents leakage.
Pipe System

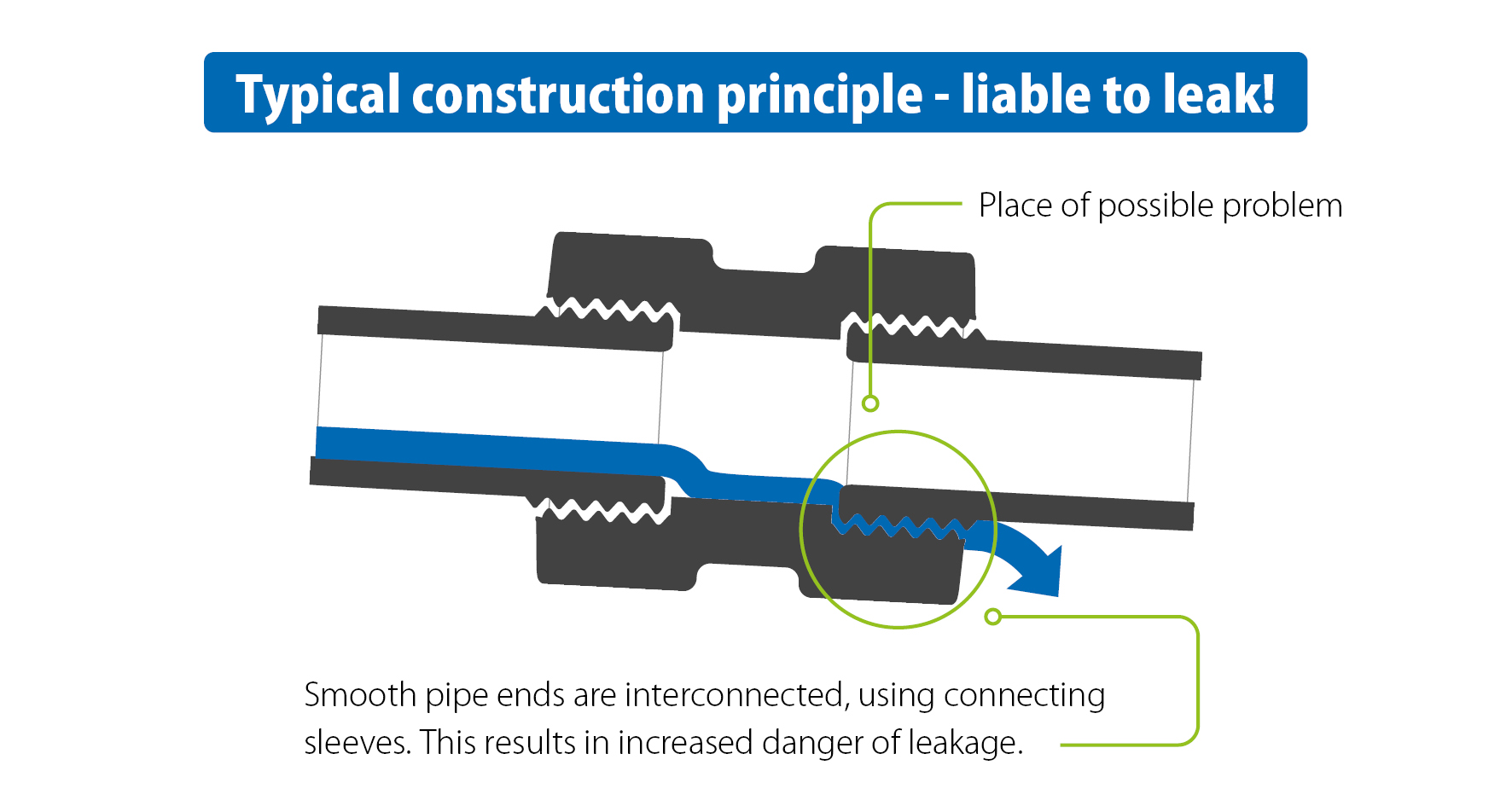

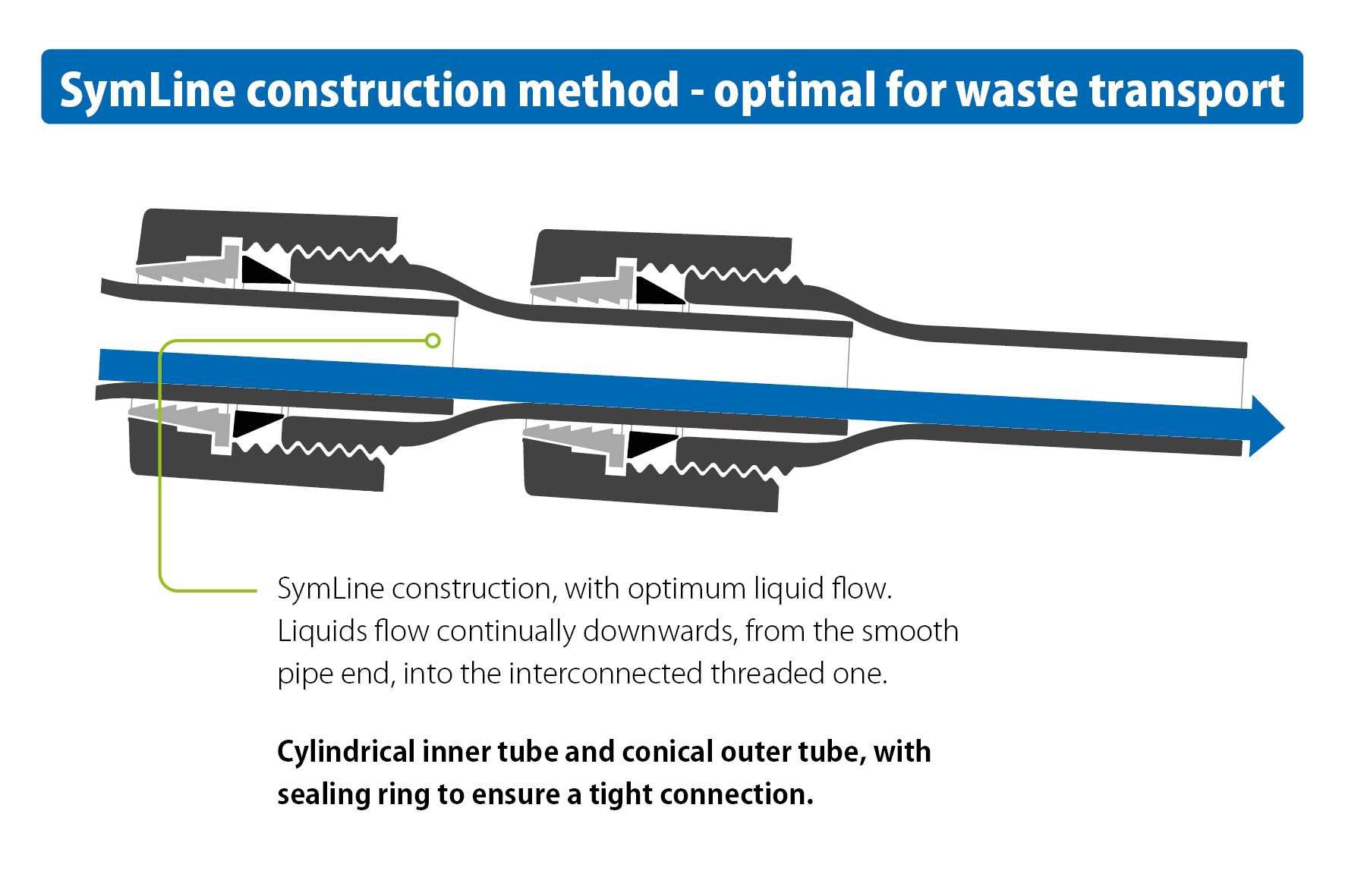

The principle "smooth tube end runs in funnel-shaped threaded socket" optimally leads waste liquids and prevents leaks. This SymLine design is the global standard for all types of waste disposal cycles and their installations. Trust SymLine - the market leader - for safe disposal.
