Pipes and Tubes

Pipe and Tube System

The pipe system provides the connection to the central collection point. Place the collecting container/canister there where you want it: the pipe system can be exactly configured to suit your needs! Use our configurator for an easy selecting of products:


Overview Pipe and Tube System

SymLine System Catalogue Chapter: Pipe and Tube System

> Download PDF

Consultation & Contact

Questions about products or installation? Contact the SymLine Team:
+1 704-438-9477

Filter / Configurator

1
2

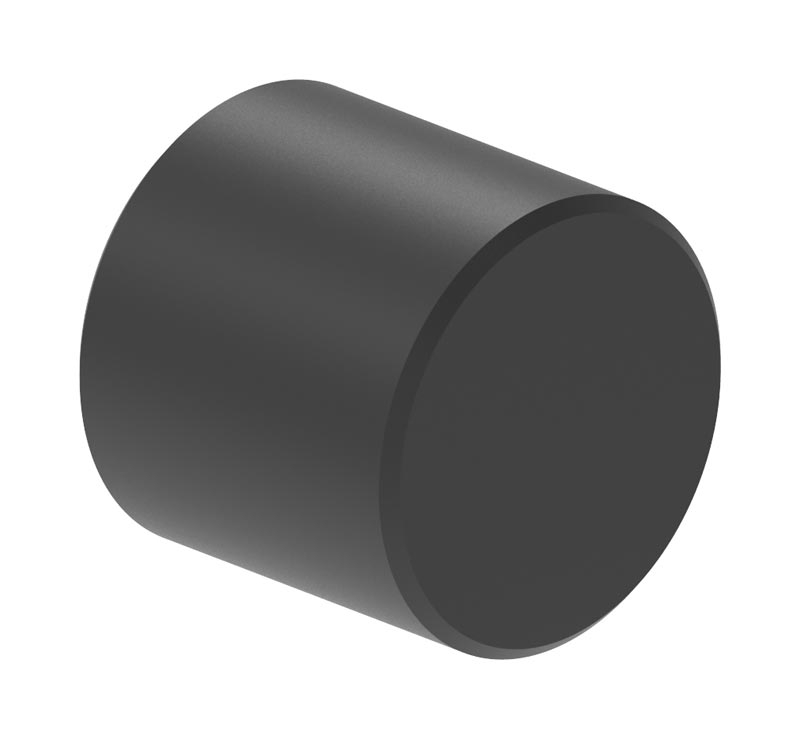

Blind plug, (ID) 32 mm

Product no.: 106423

Blind plug, for pipe with (ID) 32 mm, PE-HD electrostatic conductive

$28.83*

Cabinet feed-through

Product no.: 106611

Cabinet feed-through, angled, GL25 (m) to GL25 (m), ID = 10 mm, for cabinet borehole of 28 mm and cabinet wall thickness of max. 120 mm, PE-HD electrostatic conductive, incl. counter nut and two silicone washer

$250.94*

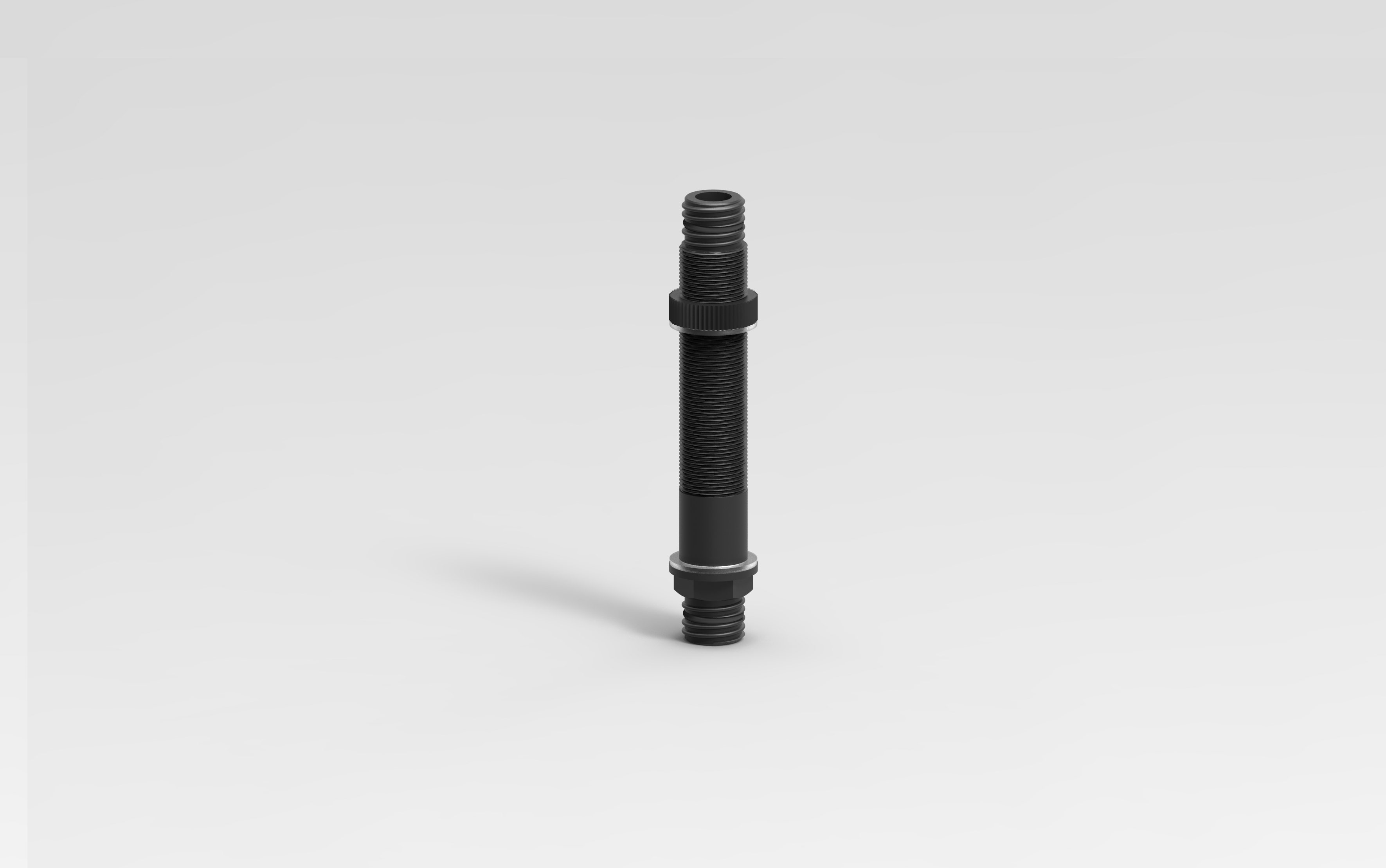

Cabinet feed-through, Type 2

Product no.: 106608

Cabinet feed-through, GL25 (m) to GL25 (m), ID = 10 mm, for cabinet borehole of 28 mm and cabinet wall thickness of max. 120 mm, PE-HD electrostatic conductive, incl. counter nut and two silicone washer

$134.57*

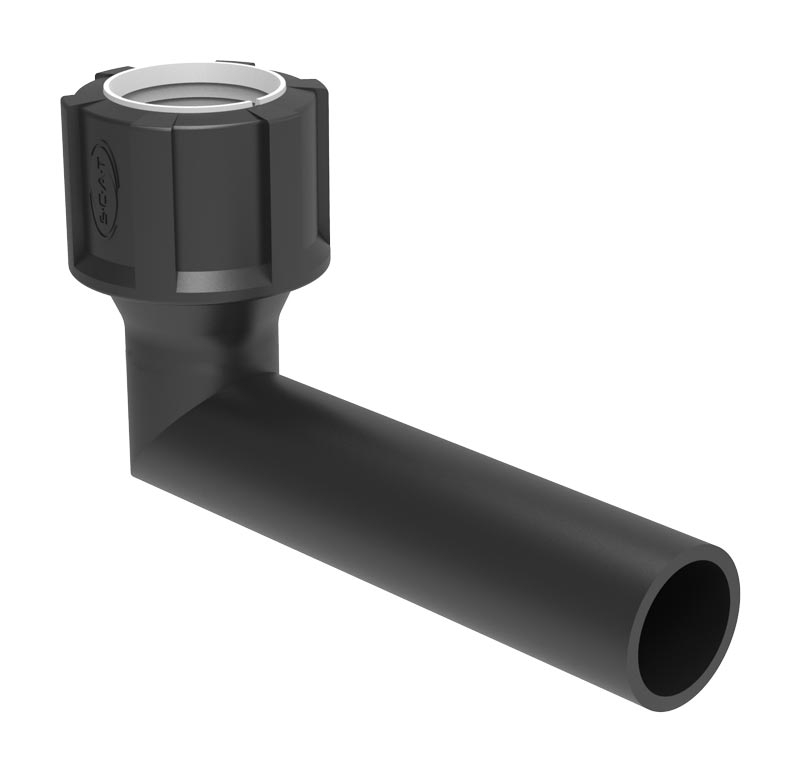

Connector pipe, angled, length 150mm

Product no.: 106430

Connector pipe, angled, (ID) 32 mm to (OD) 32 mm , PE-HD electrostatic conductive, length 150 mm, incl. sealing ring PTFE-EL and knurled nut, tensile strength (Rm) = 400 N, tightening torque = 4 Nm

$142.46*

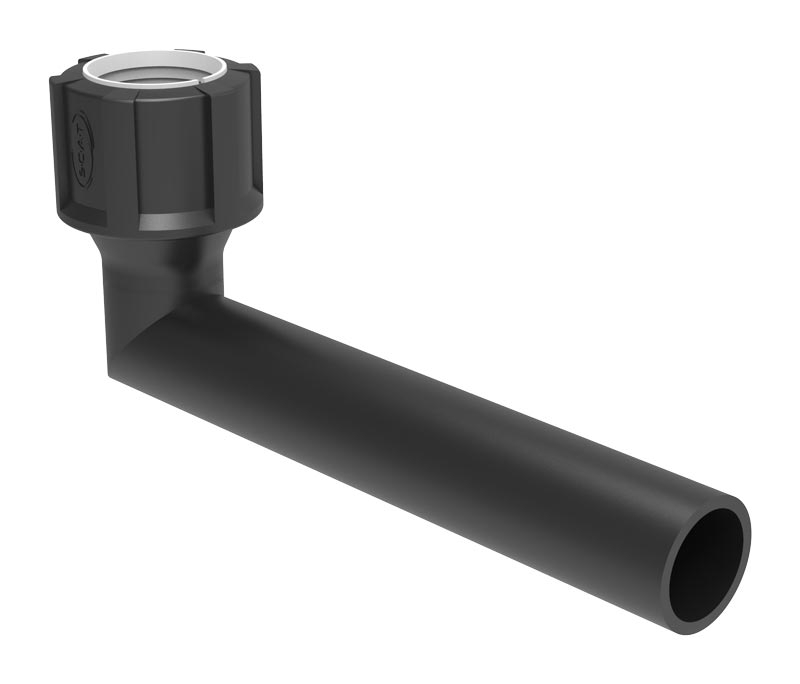

Connector pipe, angled, length 200mm

Product no.: 106438

Connector pipe, angled, (ID) 32 mm to (OD) 32 mm , PE-HD electrostatic conductive, length 200 mm, incl. sealing ring PTFE-EL and knurled nut

$144.77*

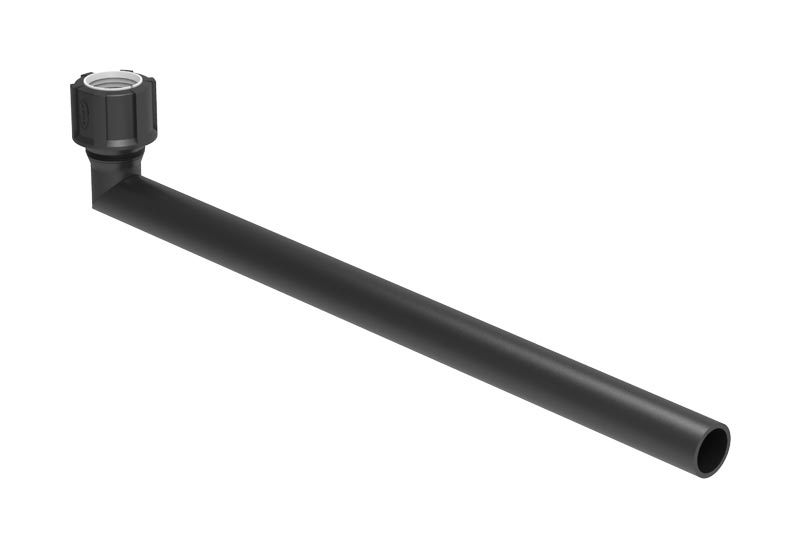

Connector pipe, angled, length 500mm

Product no.: 106440

Connector pipe, angled, (ID) 32 mm to (OD) 32 mm , PE-HD electrostatic conductive, length 500 mm, incl. sealing ring PTFE-EL and knurled nut, tensile strength (Rm) = 400 N, tightening torque = 4 Nm

$159.29*

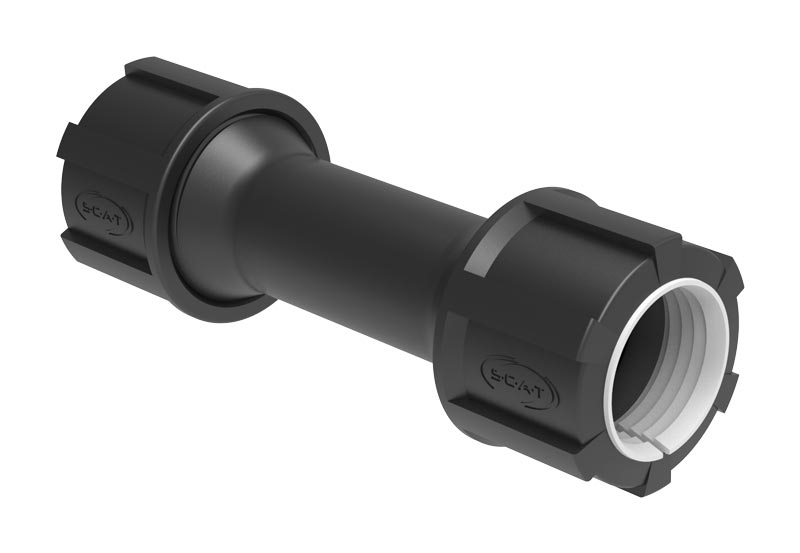

Connector, straight, (ID) 32 mm

Product no.: 106427

Connector for pipes, straight, (ID) 32mm, PE-HD electrostatic conductive, incl. sealing ring PTFE-EL and knurled nut, tensile strength (Rm) = 400 N, tightening torque = 4 Nm

$166.03*

Curved element, (ID) 32 mm to (AD) 32 mm

Product no.: 106421

Curved element for pipe system, connection for (ID) 32 mm pipe to (AD) 32 mm, PE-HD electrostatic conductiv, incl. sealing ring PTFE-EL and knurled nut, tensile strength (Rm) = 400 N, tightening torque = 4 Nm

$153.11*

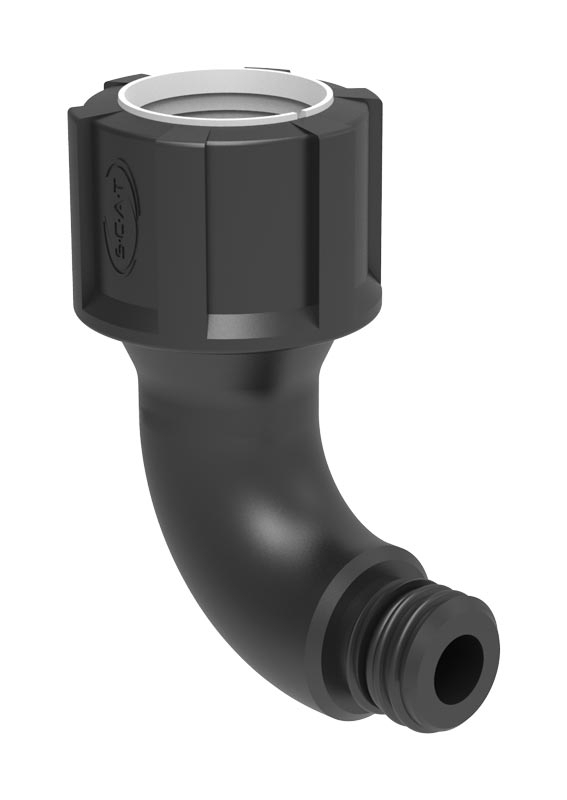

Curved element, (ID) 32 mm to GL25 (m)

Product no.: 106456

Curved element for pipe system, connection for (ID) 32 mm pipe to GL25 (m), PE-HD electrostatic conductiv, incl. sealing ring PTFE-EL and knurled nut, tensile strength (Rm) = 400 N, tightening torque = 4 Nm

$182.06*

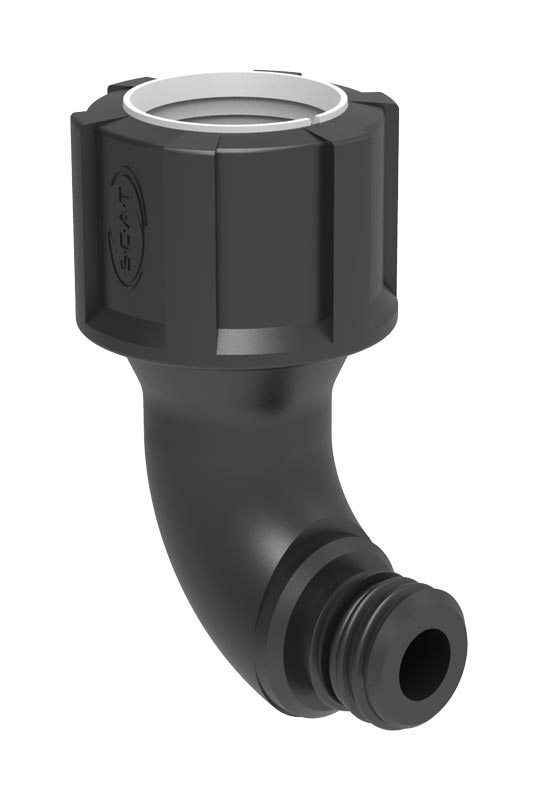

Elbow piece, (ID) 32 mm to GL25 (m)

Product no.: 106457

Elbow piece for pipe system, connection for (ID) 32 mm pipe to GL25 (m), PE-HD electrostatic conductive, with 3% slope incl. sealing ring PTFE-EL and knurled nut, tensile strength (Rm) = 400 N, tightening torque = 4 Nm

$207.22*

GL25 Adapter for Justrite Container, Flex tube to Stainless

Product no.: 160529

Adapter for justrite stainless steel connection canisters. Allows for the connection of GL25 SymLine Flex tube to stainless steel coupling.

$189.00*

Grounding cable, Type 1

Product no.: 108176

Grounding cable, 1x clip for Ø 32 mm pipe, 1x clamp, L = 3 m

$49.84*

Grounding cable, Type 12

Product no.: 108268

Grounding cable, 1x clamp, 1x push-button, L = 2 m

$67.59*

Grounding cable, Type 2

Product no.: 108270

Grounding cable, 1x clip for FlexTubes, 1x clamp, L = 3 m

$49.56*

Grounding cable, Type 20

Product no.: 108285

Grounding cable with 1x spring steel clamp & 1x ring connector ID 6mm, length = 1,5m

$67.59*

Grounding cable, Type 24

Product no.: 108309

Grounding cable, 1x clip for FlexTubes, 1x Eyelet ring ID 6 mm, L = 0,70 m

$49.32*

Grounding cable, Type 5

Product no.: 108009

Grounding cable, 2x clamp, L = 1,5 m

$67.52*

Grounding clip for Ø 32 mm pipe

Product no.: 108262

Grounding clip for Ø 32 mm pipe, with ring connector ID 5 mm, 3 meter length

$41.69*

Grounding clip for SymLine FlexTubes

Product no.: 108289

Grounding clip for SymLine FlexTubes, with ring connector ID 5 mm, 3 meter length

$59.58*

Grounding strap, rigid

Product no.: 108096

Grounding strap, rigid, with grounding cable and clamp, suitable for canister 108420

$126.81*

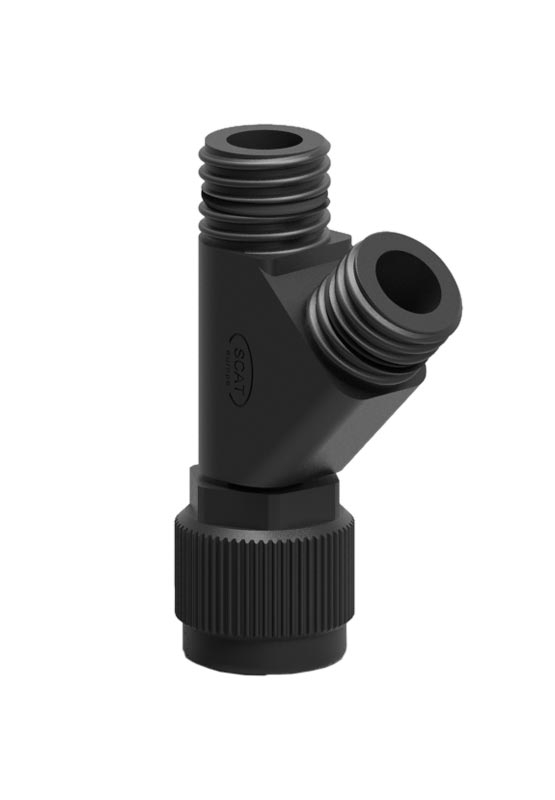

Manifold, 1x GL25 (w) auf 2x GL25 (m)

Product no.: 107125

Distributor, PE electrostatic conductive, 1x GL25 (f) to 2x GL25 (m)

$194.52*

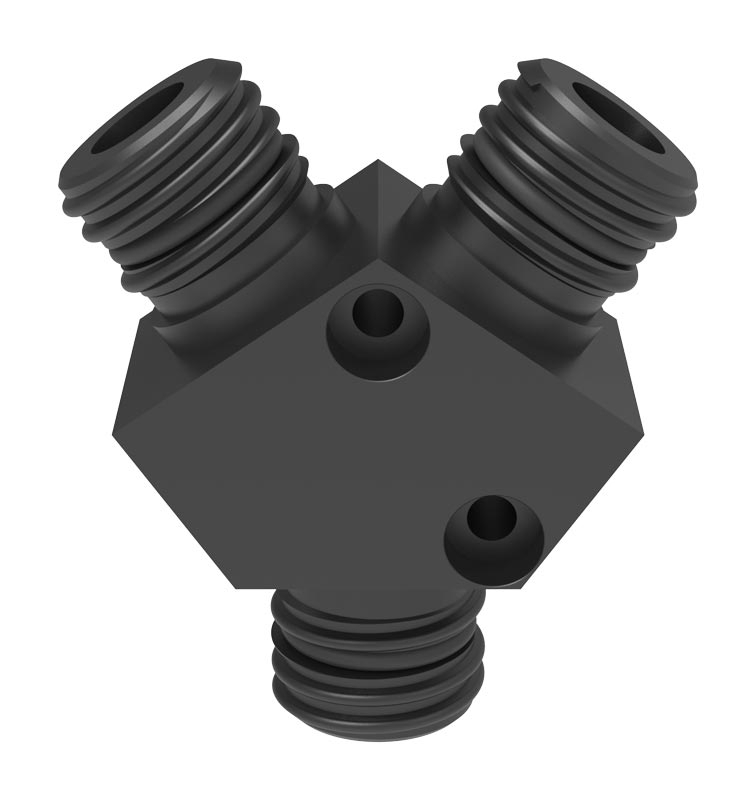

Manifold, 3x GL25 (m)

Product no.: 106476

Manifold, 3x GL25 (m), PE-HD electrostatic conductive, with 2 fixation holes

$178.49*

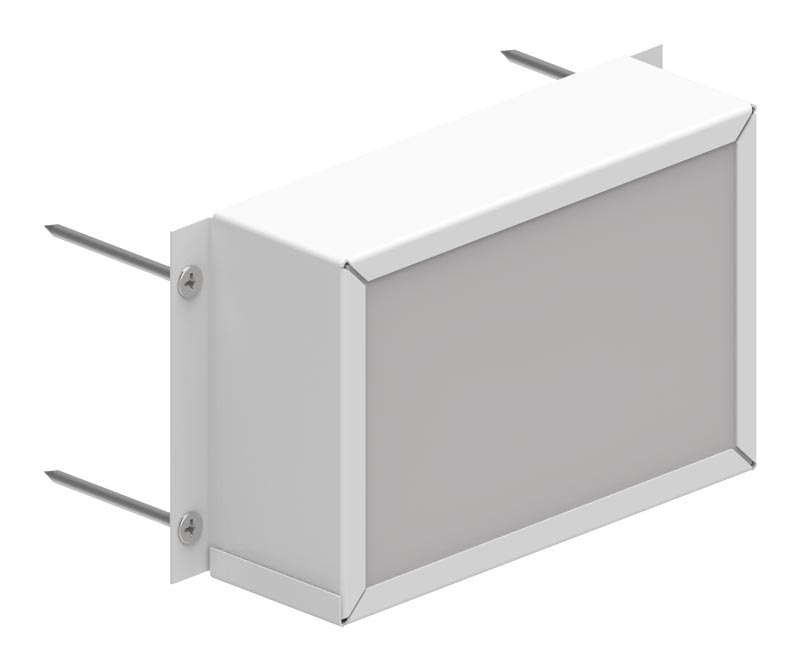

Pipe fairlead, Type 1

Product no.: 106605

Mounting kit - Pipe fairlead for Pipe till 28 mm diameter, Safetycupboard Typ 90 for Asecos, dimensions (W x H x D): 182,00 x 104,00 x 48,00 mm

$183.91*

Rear wall mount, Type 1

Product no.: 106601

Rear wall mount, upper thread GL45 (m), lower thread GL 25 (m), with mounting-flange, long shaft for XL-funnel (117633), with two bends of 90° and (OD) 32mm, PE-HD electrostatic conductive

$468.49*
