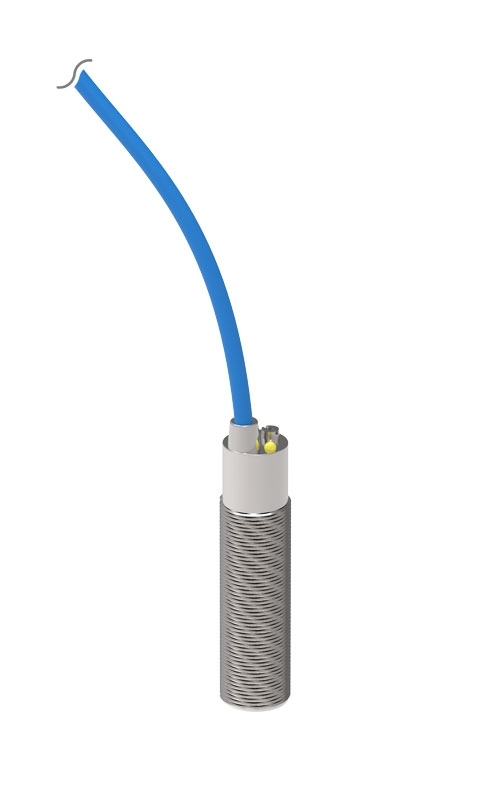

Capacitive rod sensor, brass

Name: Capacitive rod sensor, brass
Brand: SCAT
SKU: 108178
Price: 419.54 USD
Availability: InStock

SCAT

US$419.54*

Content: 1

Information on prices, delivery- and payment-terms

Product number: 108178

Delivery Time: 7-10 days

We make your Lab a safer Place!

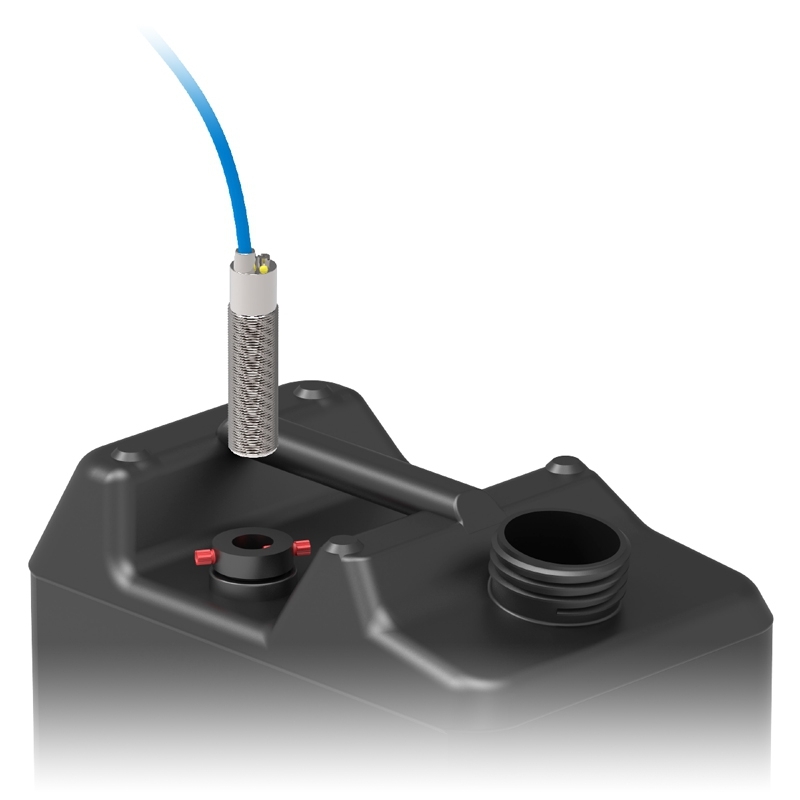

The capacitive SCAT rod sensor is used for electronic fill-level measurement in suitable waste containers. The active PTFE surface, adjustable sensing distance and NAMUR design with ATEX approval support use in safety-relevant laboratory environments. In combination with an isolation switching amplifier and suitable canister, it enables reliable fill-level monitoring.

Product information "Capacitive rod sensor, brass"

Capacitive rod sensor for the level measurement

- housing material: brass

- Active surface: PTFE

- with ATEX-license, II 2 G EEx ia IIC T1-T6, NAMUR

- operating distance 1 - 8 mm adjustable

- flush mountable

- Switch amplifier (108278) and canister with M18x1 housing (108042-S1) necessary

Specifications

Electronic level control:	Yes
Main material:	Brass
