SymLine Level Control

The level control warns you in good time before the fill level of your collection containers reaches a critical level. A sensor on the canister monitors the fill level. If your canister is filling up, you will receive a visual and acoustic warning via our signal devices when it is time to empty or change the canister.

Automatic switching for container

Product no.: 106750

Automatic switching for container SymLine - Set for automatic switching 1x SwitchBox: control unit for SCAT built-in signal box or signal box T1 / T5 (106730) 1x 3-way ball valve, 3x GL25 (m), electric, material: stainless steel (160178) 1x 3-way ball valve mount, stainless steel (106580) 2x signal cable for electronic level monitoring, length = 3 m (108050)

US$1,709.27*

Built-in signal box display V2 (2024)

Product no.: 106733

Built-in signal box display, brushed stainless steel, wall thickness: 2 mm for signal boxes 1/2/5 with cable connection on the back (Version 2024) stainless steel 1.4571

US$91.70*

Built-in Signalbox1

Product no.: 106741

Built-in Signalbox1, EU / UK /US, 1-channel, for Safety Waste Cap and other electronical level controlers, touchless alarm-resetting fields for one container, one switch input and one switch output for peripheral units incl. 24V power supply

US$513.25*

Built-in Signalbox2

Product no.: 106548

Built-in Signalbox2, EU / UK /US, 2-channel, for Safety Waste Cap and other electronical level controlers, touchless alarm-resetting fields for two containers, two switch inputs and two switch outputs for peripheral units incl. 24V power supply

US$769.87*

Built-in Signalbox5

Product no.: 106735

Built-in Signalbox5, EU / UK /US, 5-channel, for Safety Waste Cap and other electronical level controlers, touchless alarm-resetting fields for five containers, five switch inputs and five switch outputs for peripheral units incl. 24V power supply

US$975.17*

Cable for relay contact, 5 m

Product no.: 108039

Cable for relay contact, for switch off peripheric instruments, 5 m

US$59.03*

Cable set Built-in signal box, 3,5 m, Type 1

Product no.: 108219

Cable set: Connection for switch amplifier (108278) / Built-in signalbox consisted of: 1x 3,5 m cable connection for sensor with M8 (f) + 3x cable shoes, 1x 1,5 m cable connection for signalbox with M8 (m) + 3x cable shoes

US$124.16*

Capacitive disc sensor, operating distance 1 - 10 mm

Product no.: 108291

Capacitive disc sensor, housing material: stainless steel, Active surface: PTFE, length cable: 2 m, for ATEX zone 0, ATEX Ex II 1G Ex ia IIC T1-T6 Ga, output function: NAMUR, operating distance 1 - 10 mm adjustable, Switch amplifier necessary (108278)

US$828.72*

Capacitive leakage sensor, operating distance 0,5 - 3 mm

Product no.: 108301

Capacitive sensor for leakage control, housing material: PTFE, for ATEX zone 1, ATEX Ex II 2G EEx ia IIC T1-T4, output function: NAMUR, operating distance 0,5 - 3 mm adjustable, Switch amplifier necessary (108278)

US$610.28*

Capacitive rod sensor, brass

Product no.: 108178

Capacitive rod sensor for the level measuring with ATEX-license, II 2 G EEx ia IIC T1-T6, NAMUR. For proper functionality use in combination with isolating switching amplifier 108278 & Canister 108042-S1. Housing M18x1, active surface material PTFE, housing material brass. Flush mountable. Sensing distance 1 … 8mm adjustable.

US$419.54*

Capacitive rod sensor, length cable 2 m

Product no.: 108277

Capacitive rod sensor, housing material: PTFE, thread: M12x1, length sensor: 70mm with LED display, length cable: 2 m, for ATEX zone 0, ATEX Ex II 1G Ex ia IIC T1-T6 Ga, output function: NAMUR, operating distance 1 - 6 mm adjustable, Switch amplifier necessary (108278)

US$477.43*

Capacitive rod sensor, length cable 5 m

Product no.: 108303

Capacitive rod sensor, housing material: PTFE, thread: M12x1, length sensor: 70mm with LED display, length cable: 5 m, for ATEX zone 0, ATEX Ex II 1G Ex ia IIC T1-T6 Ga, output function: NAMUR, operating distance 1 - 6 mm adjustable, Switch amplifier necessary (108278)

US$768.16*

Front panel for built-in signal box

Product no.: 106703

Front panel for built-in signal box, material: stainless steel V4A, wall thickness: 2 mm

US$103.26*

Housing for isolating switch amplifier 108278

Product no.: 106590

Housing for the isolating switch amplifier 108278, LxWxH: 75 mm x 125 mm x 175 mm, material: polycarbonate light-grey (RAL 7035), weight: 450g, protection class: IP 66

US$277.08*

Mount for signal box

Product no.: 106658

Mount for signal box (furniture installation 2-channel), stainless steel

US$103.26*

Power supply EU 220/230V, Type 1

Product no.: 108051

Power supply-EU 220/230V for signal box T1 & T5 // 24 Volt, length of the cable = 1900 mm

US$114.47*

Power supply EU 220/230V, Type 4

Product no.: 108326

Power supply-EU 220/230V for built-in Signalbox2 // 24 Volt, length of the cable = 1900 mm

US$114.47*

Power supply UK 220/230V, Type 2

Product no.: 108327

Power supply-UK 220/230V for built-in Signalbox2 // 24 Volt, length of the cable = 1900 mm

US$114.47*

Power supply UK 220/230V, Type 3

Product no.: 610703

Power supply-UK 220/230V for signal box T1 & T5 // 24 Volt, length of the cable = 1900 mm

US$114.47*

Power supply USA 110V, Type 1

Product no.: 108328

Power supply-USA 110V for built-in Signalbox2 // 24 Volt, length of the cable = 1900 mm

US$114.47*

Power supply USA 110V, Type 2

Product no.: 610704

Power supply-USA 110V for signal box T1 & T5 //24 Volt, length of the cable = 1900 mm

US$114.47*

Primary adapter power supply AUS FOX system

Product no.: 108339

Primary adapter power supply unit, Australia FOX System

US$22.20*

Safety Waste Cap, S60/61, Type 1

Product no.: 106507

Safety Waste Cap, S60/61, GL25 (m), fitting for continuous level control (502042), PE-HD electrostatic conductive, connector for exhaust filter

US$637.20*

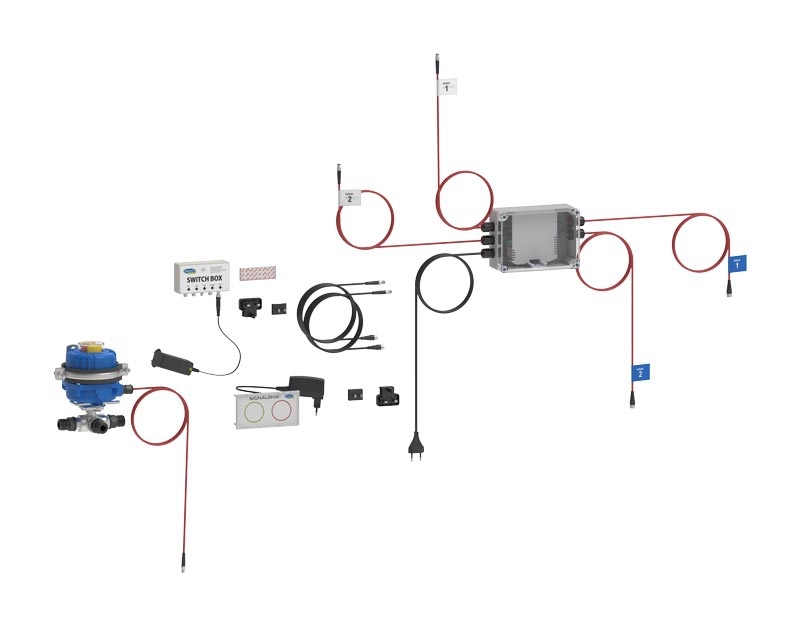

Set: automatic switching for container

Product no.: 106751

Set: automatic switching for container 1x Built-in Signalbox2, EU / UK /US, 2-channel, two switch inputs and two switch outputs for peripheral units (106548) 1x SwitchBox: control unit for SCAT built-in signal box or signal box T1 / T5 (106730) 1x 3-way ball valve, 3x GL25 (m), electric, material: stainless steel (160178) 1x 3-way ball valve mount, stainless steel (106580) 2x signal cable for electronic level monitoring, length = 3 m (108050)

US$2,604.25*
