SymLine Filling Units

This is where the waste liquids are filled in. The filling units are mounted on your work surface to save space. Available as a funnel / basin for manual filling, or as an HPLC connection for direct connection of your HPLC waste tubing. Use our configurator for easy product selection!

Blind plug, PE-EL, NPT 1/8"

Product no.: 160523

Blind plug, PE electrostatic conductive, NPT 1/8"

US$34.97*

Blind Plug, PFA, Type 2

Product no.: 160501

Blind plug, PFA, for capillary connector, UNF1/4" 28G, colorless, quantity=10 pieces

US$55.73*

Blind Plug, PFA, Type 3

Product no.: 160502

Blind plug, PFA, for capillary connector, UNF1/4" 28G, PFA, colorless, quantity=5 pieces

US$31.78*

Blind plug, PTFE-EL, GL14

Product no.: 107680

Blind plug, PTFE electrostatic conductive, for exhaust filter connector, GL14

US$44.55*

Collector-Plug for Symline pipe system, 32 mm

Product no.: 106729

Collector-Plug for the Symline pipe system, 32mm OD, PE-HD electrostatic conductive - 2x PFA fittings for capillary with (OD) 1,6/2,3/3,2 mm incl. blind plugs - 2x tube connector for tube with (ID) 5,0 - 11,5mm incl. blind plugs

US$102.03*

Cover for lab sink

Product no.: 118026

Cover for lab sink, suitable for P/N 118020, 118021, 118024 & 118025, PE-HD electrostatic conductive

US$192.75*

Funnel ARNOLD with lid, GL45

Product no.: 317636

Funnel ARNOLD with lid, GL45, PE-HD, with splash guard, 2x removable sieves, funnel diameter = 200 mm

US$245.90*

Funnel ARNOLD with lid, GL45, el

Product no.: 317633

Funnel ARNOLD with lid, GL45, PE-HD electrostatic conductive, with splash guard, 2x removable sieves and grounding cable, funnel diameter = 200 mm

US$293.80*

Funnel ARNOLD with lid, S60/61

Product no.: 317634

Funnel ARNOLD with lid, S60/61, PE-HD electrostatic conductive, with splash guard, removable sieve and grounding cable, funnel diameter = 200 mm

US$293.80*

Funnel ARNOLD, ball-valve, GL45, el, Type 2

Product no.: 317638

Funnel ARNOLD with ball-valve and lid, GL45, PE-HD electrostatic conductive, splash guard, removable sieve and grounding cable, funnel diameter = 200 mm

US$293.80*

Funnel ARNOLD, ball-valve, S60/61, el

Product no.: 317621

Funnel ARNOLD with ball-valve and lid, S60/61, PE-HD electrostatic conductive, with lance (220 mm), splash guard, removable sieve and grounding cable, funnel diameter = 200 mm

US$293.80*

Funnel with lid MARCO, GL45, el, Type 1

Product no.: 306980

Funnel with lid MARCO, GL45, PE-HD electrostatic conductive, with removable sieve and earthing cable, funnel-diameter 157 mm OD (140mm ID)

US$159.52*

Funnel with lid MARCO, S60/61, el, Type 1

Product no.: 318960

Funnel with lid MARCO, S60/61, PE-HD electrostatic conductive, with removable sieve and earthing cable, funnel-diameter 157 mm OD (140mm ID)

US$159.52*

Grounding cable, Type 25

Product no.: 117982

Grounding cable, 1x clamp, 1x ring ID 5 mm, L = 1,5 m

US$63.71*

HPLC desktop collector, PTFE-EL

Product no.: 160531

HPLC desktop collector, PTFE-EL flexible mounting either by magnetic holder or screw connection. Outlet via central tube connector: - 7x PP tube connector 5.0 - 11.5mm ID - 6x PFA fitting 1.6/2.3/3.2mm OD incl. blind plugs

US$271.45*

Lab sink with drain, G 1 1/2"

Product no.: 118020

Lab sink with drain and mounting sleeve, G 1 1/2" OD thread, PE-HD electrostatic conductive, incl. grounding cable, dimensions (W x H x D): 400 x 300 x 190 mm, wall thickness: 6 mm

US$926.12*

Lab sink with drain, GL 25

Product no.: 118021

Lab sink with drain and mounting sleeve, GL 25 thread, PE-HD electrostatic conductive, incl. grounding cable, dimensions (W x H x D): 400 x 300 x 190 mm, wall thickness: 6 mm

US$926.12*

Lab sink with drain, Pipe 32mm (OD), angled

Product no.: 118025

Lab sink with drain and mounting sleeve, Pipe 32mm (OD), angled with 3° slope, PE-HD electrostatic conductive, incl. grounding cable, dimensions (W x H x D): 400 x 300 x 190 mm, wall thickness: 6 mm

US$926.12*

Lab sink with drain, Pipe 32mm (OD), vertical

Product no.: 118024

Lab sink with drain and mounting sleeve, Pipe 32mm (OD), vertical, PE-HD electrostatic conductive, incl. grounding cable, dimensions (W x H x D): 400 x 300 x 190 mm, wall thickness: 6 mm

US$926.12*

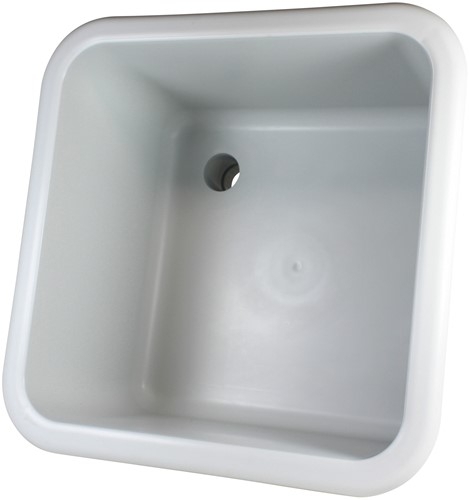

Lab sink, PP-el

Product no.: 118003

Lab sink with waste connection 1½", suitable for drop-on and undermount installation Internal dimensions 400x400x250mm, Wall thickness 3,8mm, made of PP-el electrostatic conductive incl. PP strainer

US$511.24*

PFA fitting, 1,6 mm OD, green

Product no.: 107061

PFA fitting with integrated ferrule, 1,6 mm OD, quantity = 5 pieces, green

US$31.78*

PFA fitting, 2,3 mm OD, violet

Product no.: 107059

PFA fitting with integrated ferrule, 2,3 mm OD, quantity = 5 pieces, violet

US$31.78*

PFA fitting, 3,2 mm OD, blue

Product no.: 107063

PFA fitting with integrated ferrule, 3,2 mm OD, quantity = 5 pieces, blue

US$31.78*

Safety Waste Cap + Funnel JAN, GL45, el

Product no.: 420045

Safety Waste Cap + Funnel JAN, GL45, electrostatic conductive with earthing cable, safety funnel, 4x 1,6/2,3/3,2 mm OD, 4x PFA-blind plug, 3x 5,0 - 11,5mm ID, 3x PE-blind plug + exhaust filter M, with splash guard and change indicator (410535)

US$526.93*
