The feedthroughs allow the filling units to be fixed directly to your laboratory table or to a rear wall. The waste liquids enter the pipe or hose system through the feedthrough.
HPLC-Desktop mount:
4x UNF 1/4" 28G, including fittings for capillary diameter (OD), Ø 2,3/3,2 mm
2x NPT 1/8", including tube connector for (ID) Ø 5,0 - 11,5 mm
pad diameter 53 mm
with 32mm OD pipe
PE-HD electrostatic conductive
HPLC-Desktop mount:
6x UNF 1/4" 28G, including fittings for capillary diameter (OD), Ø 2,3/3,2 mm
1x NPT 1/8", including tube connector for (ID) Ø 5,0 - 11,5 mm
pad diameter 53 mm
with connection to pipe (OD) 32 mm
PE-HD electrostatic conductive
HPLC-Desktop mount:
4x UNF 1/4" 28G, including fittings for capillary diameter (OD), Ø 2,3/3,2 mm
2x NPT 1/8", including tube connector for (ID) Ø 5,0 - 11,5 mm
pad diameter 53 mm
with connecting thread GL25 (m)
PE-HD electrostatic conductive

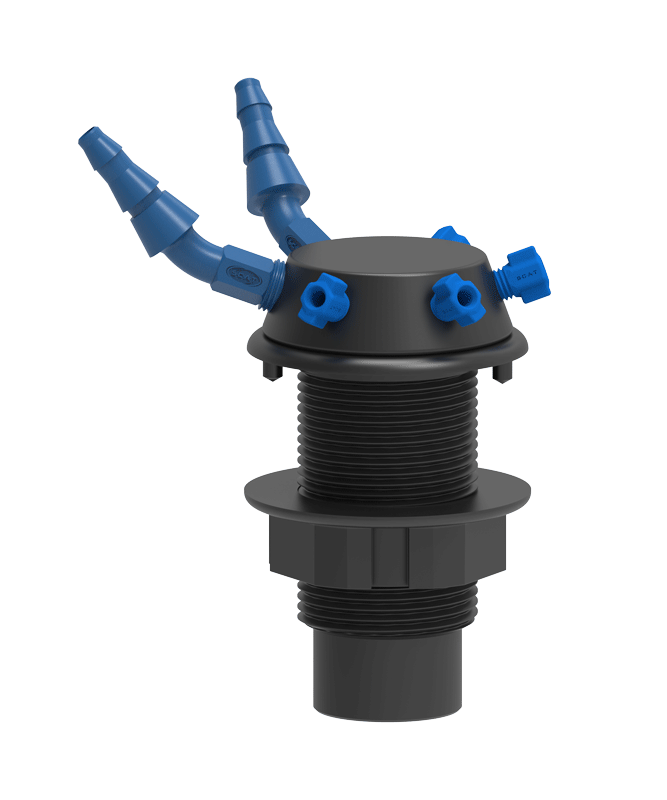

HPLC-Desktop mount, PE-HD electrostatic conductive, with 6 x 3,2 mm OD at the side, 1 x 5,0 - 11,5mm ID upper thread, pad diameter 53 mm / lance diameter 32 mm with lower thread G 1/2" (m)
Rear wall mount, upper thread GL45 (m), lower thread GL 25 (m), with mounting-flange, long shaft for funnel ARNOLD (317633 & 317638), with two bends of 90° and (OD) 32mm, PE-HD electrostatic conductive
