HPLC waste mount, Ø 32, 6x fit. 1x tube

Skip image gallery

US$325.79*

Content: 1
Information on prices, delivery- and payment-terms
Product number: 106412

Delivery Time: 7-10 days

We make your Lab a safer Place!

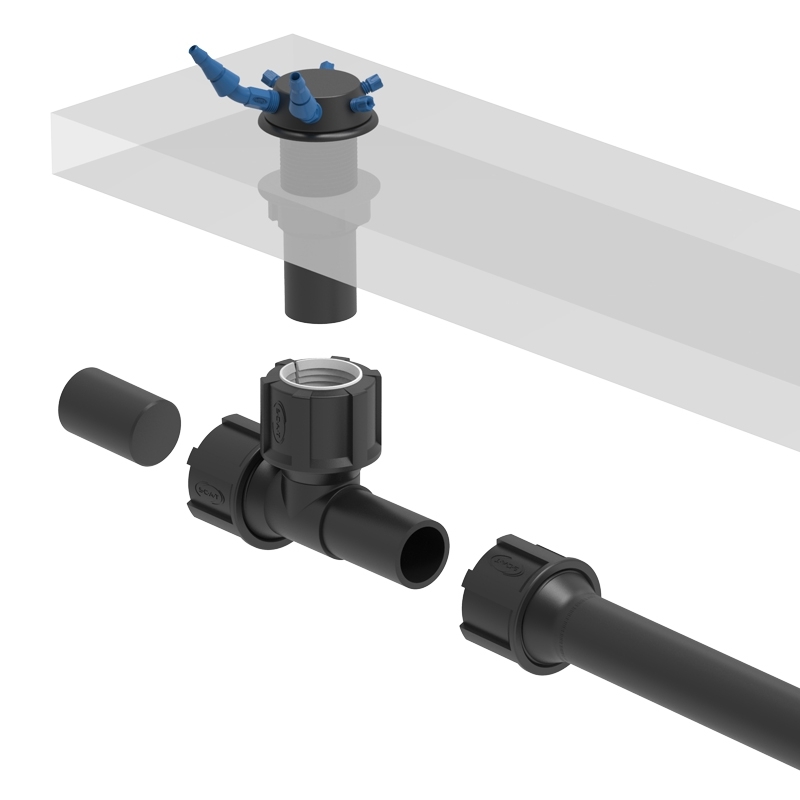

The SCAT HPLC bench feed-through is the safe interface between the HPLC system and the SymLine disposal system. It is integrated into the laboratory bench to save space and enables the structured feed-through of HPLC capillaries and hoses directly into the central pipe system. The hermetically guided connections support the safe discharge of liquid solvent waste and reduce emissions in the laboratory environment. The electrically conductive high-performance plastic is chemically resistant in accordance with SEFA 3 & 8 and suitable for use in ATEX zones 0, 1 and 2.

Product information "HPLC waste mount, Ø 32, 6x fit. 1x tube"

HPLC-Desktop mount with connection to pipe (OD) 32 mm

- 6x UNF 1/4" 28G, including fittings for capillary diameter (OD), Ø 2.3/3.2 mm

- 1x NPT 1/8", including tube connector for (ID) Ø 5.0 - 11.5 mm

- pad diameter 53 mm

- PE-HD electrostatic conductive

Specifications
Electrostatic conductive plastic: Yes
Main material: HDPE-el
No. of capillary connections: 6
No. of tube connections: 1
Skip product gallery

Connection options

Connector., angled, l 150mm,(OD) 32 mm
Connector., angled, l 150mm,(OD) 32 mm
Product no.: 106430
Connector pipe, angled, (ID) 32 mm to (OD) 32 mm, length 150 mm - PE-HD electrostatic conductive - 1 x sealing ring PTFE-EL - 1 x knurled nut - tensile strength (Rm) = 400 N, tightening torque = 10 - 15 Nm

US$161.43*
Connector pipe, angled, length 500mm
Connector pipe, angled, length 500mm
Product no.: 106440
Connector pipe, angled, (ID) 32 mm to (OD) 32 mm, length 500 mm - PE-HD electrostatic conductive - 1 x sealing ring PTFE-EL - 1 x knurled nut - tensile strength (Rm) = 400 N, tightening torque = 10 - 15 Nm

US$180.50*
Curved element, (ID) 32 mm to GL25 (m)
Curved element, (ID) 32 mm to GL25 (m)
Product no.: 106456
Curved element for pipe system, (ID) 32 mm to  GL25 (m) - 1 x sealing ring PTFE-EL - 1 x knurled nut - tensile strength (Rm) = 400 N, tightening torque = 10 - 15 Nm - PE-HD electrostatic conductive

US$206.30*
Elbow piece, (ID) 32 mm to GL25 (m)
Elbow piece, (ID) 32 mm to GL25 (m)
Product no.: 106457
Curved element for pipe system, (ID) 32 mm to  GL25 (m) - 3% slope - 1 x sealing ring PTFE-EL - 1 x knurled nut - tensile strength (Rm) = 400 N, tightening torque = 10 - 15 Nm - PE-HD electrostatic conductive

US$234.82*
Connector pipe, angled, length 200mm
Connector pipe, angled, length 200mm
Product no.: 106438
Connector pipe, angled, (ID) 32 mm to (OD) 32 mm, length 200 mm - PE-HD electrostatic conductive - 1 x sealing ring PTFE-EL - 1 x knurled nut - tensile strength (Rm) = 400 N, tightening torque = 10 - 15 Nm

US$164.06*
SymLine FLEX - Extension 1
SymLine FLEX - Extension 1
Product no.: 106690
SymLine FLEX - Extension - 1 x sealing ring PTFE-EL - 1 x knurled nut - Length = 600 mm -  tensile strength (Rm) = 400 N, tightening torque = 10 - 15 Nm - PE-HD electrostatic conductive

US$199.60*
SymLine FLEX extension 1200 mm
SymLine FLEX extension 1200 mm
Product no.: 106700
SymLine FLEX - Extension - 1 x sealing ring PTFE-EL - 1 x knurled nut - Length = 1200 mm -  tensile strength (Rm) = 400 N, tightening torque = 10 - 15 Nm - PE-HD electrostatic conductive

US$284.22*
T-piece, 2x (ID) 32 mm, 1x (OD) 32 mm
T-piece, 2x (ID) 32 mm, 1x (OD) 32 mm
Product no.: 106712
T-piece for pipe, 2x (ID) 32 mm, 1x (OD) 32 mm - 2 x sealing ring PTFE-EL - 2 x knurled nut - tensile strength (Rm) = 400 N, tightening torque = 10 - 15 Nm - PE-HD electrostatic conductive

US$323.07*
Curved element, (ID) 32 mm to (OD) 32 mm
Curved element, (ID) 32 mm to (OD) 32 mm
Product no.: 106421
Curved element for pipe system, (ID) 32 mm to  (OD) 32 mm - 1 x sealing ring PTFE-EL - 1 x knurled nut - tensile strength (Rm) = 400 N, tightening torque = 10 - 15 Nm - PE-HD electrostatic conductive

US$173.50*
Skip product gallery

Capillaries

PTFE capillary 2.3 mm OD (1.7 mm ID)
PTFE capillary 2.3 mm OD (1.7 mm ID)
Product no.: 461054
PTFE Capillary 2.3 mm OD (1.7 mm ID), length = 3 m

US$26.99*
PTFE capillary 3.2 mm OD (1.6 mm ID)
PTFE capillary 3.2 mm OD (1.6 mm ID)
Product no.: 461055
PTFE Capillary 3.2 mm OD (1.6 mm ID), length = 3 m

US$26.99*
Skip product gallery

Fittings

Fitting with ferrule, 2.3 mm OD
Fitting with ferrule, 2.3 mm OD
Product no.: 107166
PP fitting with integrated ferrule, 2.3 mm OD, quantity = 5 pieces, colorless

US$31.78*
Fitting with ferrule, 2.3 mm OD, purple
Fitting with ferrule, 2.3 mm OD, purple
Product no.: 107059
PFA fitting with integrated ferrule, 2.3 mm OD, quantity = 5 pieces, violet

US$31.78*
Fitting with ferrule, 2.3 mm OD, white
Fitting with ferrule, 2.3 mm OD, white
Product no.: 107042
PTFE fitting with integrated ferrule, 2.3 mm OD, quantity = 10 pieces, white

US$111.61*
Fitting with ferrule, 3.2 mm OD
Fitting with ferrule, 3.2 mm OD
Product no.: 107167
PP fitting with integrated ferrule, 3.2 mm OD, quantity = 5 pieces, colorless

US$31.78*
Fitting with ferrule, 3.2 mm OD, blue
Fitting with ferrule, 3.2 mm OD, blue
Product no.: 107063
PFA fitting with integrated ferrule, 3.2 mm OD, quantity = 5 pieces, blue

US$31.78*
Fitting with ferrule, 3.2 mm OD, white
Fitting with ferrule, 3.2 mm OD, white
Product no.: 107043
PTFE fitting with integrated ferrule, 3.2 mm OD, quantity = 10 pieces, white

US$111.61*
Skip product gallery

Tubing Connections

Adapter for septum cap, short thread ND9
Adapter for septum cap, short thread ND9
Product no.: 160146
Adapter for septum caps, short thread ND9, PTFE

US$55.73*
Compression fitting for Tube, ID 6 mm
Compression fitting for Tube, ID 6 mm
Product no.: 117821
Compression fitting for tube connector, PTFE, tube olive for corrugated tube ID 6.5 mm / OD 10 mm, with locknut

US$79.68*
Compression fitting for Tube, ID 8 mm
Compression fitting for Tube, ID 8 mm
Product no.: 117819
Compression fitting for tube connector NPT 1/8", PTFE, tube olive for corrugated tube ID 8 mm / OD 11 mm, with locknut

US$79.68*
Tube olive, bent, 6.4–mm ID
Tube olive, bent, 6.4–mm ID
Product no.: 160143
Tube connector, curved, 6.4 - 8 mm ID, PTFE

US$39.76*
Tube olive, curved, 5.0-11.5 mm ID
Tube olive, curved, 5.0-11.5 mm ID
Product no.: 117808
Tube connector, curved, 5.0 - 11.5mm ID, NPT 1/8", PP

US$19.00*
Tube olive, offset, 6.4-8 mm ID
Tube olive, offset, 6.4-8 mm ID
Product no.: 107808
Tube connector, angled, 6.4 - 8 mm ID, PP

US$15.81*
Tube olive, offset, 9.5-10 mm ID
Tube olive, offset, 9.5-10 mm ID
Product no.: 107810
Tube connector, angled, 9.5 - 10 mm ID, PP

US$15.81*
Tube olive, straight, 12.7 mm, PP
Tube olive, straight, 12.7 mm, PP
Product no.: 117818
Tube connector, straight, 12.7 mm, PP

US$15.81*
Tube olive, straight, 2–3 mm ID
Tube olive, straight, 2–3 mm ID
Product no.: 107811
Tube connector, straight, 2 - 3 mm ID, PP

US$15.81*
Tube olive, straight, 3–4 mm ID
Tube olive, straight, 3–4 mm ID
Product no.: 107812
Tube connector, straight, 3 - 4 mm ID, PP

US$15.81*
Tube olive, straight, 4–6 mm ID
Tube olive, straight, 4–6 mm ID
Product no.: 107813
Tube connector, straight, 4 - 6 mm ID, PP

US$15.81*
Tube olive, straight, 5 - 7 mm ID
Tube olive, straight, 5 - 7 mm ID
Product no.: 107814
Tube connector, straight, 5 - 7 mm ID, PP

US$15.81*
Tube olive, straight, 6.2 - 7.5 mm ID
Tube olive, straight, 6.2 - 7.5 mm ID
Product no.: 107816
Tube connector, straight, 6.2 - 7.5 mm ID, PP

US$15.81*
Tube olive, straight, 6.4 - 8 mm ID
Tube olive, straight, 6.4 - 8 mm ID
Product no.: 160142
Tube connector, straight, 6.4 - 8 mm ID, PTFE

US$31.78*
Tube olive, straight, 9.5 - 10 mm ID
Tube olive, straight, 9.5 - 10 mm ID
Product no.: 107817
Tube connector, straight, 9.5 - 10 mm ID, PP

US$15.81*
Skip product gallery

Tubes

Corrugated tube, flexible, PE, ID 6.5 mm
Corrugated tube, flexible, PE, ID 6.5 mm
Product no.: 461056
Corrugated tube, flexible, PP, ID 6.5 mm, length = 1 m, for HPLC instruments

US$31.78*
PTFE tube, ID = 10 mm, OD = 12 mm, ec
PTFE tube, ID = 10 mm, OD = 12 mm, ec
Product no.: 108019
PTFE tube, electrostatic conductive, black, ID = 10 mm, OD = 12 mm, length = 1m

US$63.71*
PTFE tube, ID = 6 mm, OD = 8 mm, ec
PTFE tube, ID = 6 mm, OD = 8 mm, ec
Product no.: 108017
PTFE tube, electrostatic conductive, black, ID = 6 mm, OD = 8 mm, length = 1m

US$39.76*
PTFE tube, ID = 8 mm, OD = 10 mm, ec
PTFE tube, ID = 8 mm, OD = 10 mm, ec
Product no.: 108018
PTFE tube, electrostatic conductive, black, ID = 8 mm, OD = 10 mm, length = 1m

US$55.73*
Skip product gallery

Accessories

Capillary cutter incl. replacement blade
Capillary cutter incl. replacement blade
Product no.: 900103
Capillary cutter incl. spare blade

US$55.73*
Installation wrench, for fitting
Installation wrench, for fitting
Product no.: 160530
Installation wrench, tool, POM, green, hexagonal, for PFA- and PE-fittings

US$31.78*
measuring template for capillaries&tubes
measuring template for capillaries&tubes
Product no.: 199936
SCAT measuring template for capillaries & tubes

US$0.00*
