Curved element, (ID) 32 mm to GL25 (m)

Skip image gallery

US$206.30*

Content: 1
Information on prices, delivery- and payment-terms
Product number: 106456

Delivery Time: 7-10 days

We make your Lab a safer Place!

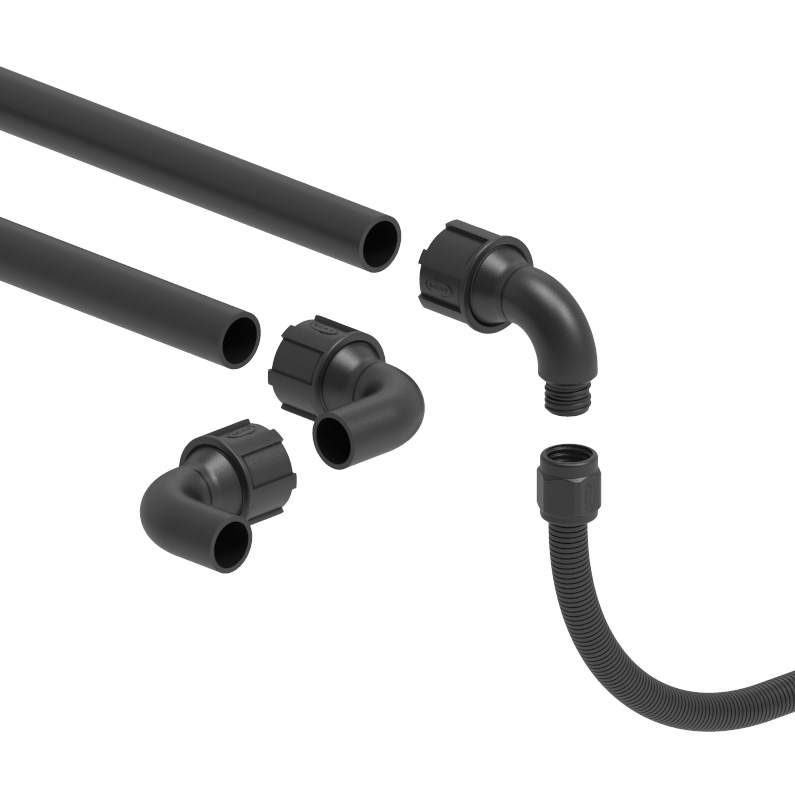

The SCAT elbow element securely connects pipes with a 32 mm inner diameter to GL25 connections in the SymLine system. The angled design enables flexible line routing when discharging liquid laboratory waste. The electrically conductive high-performance plastic is chemically resistant in accordance with SEFA 3 & 8 and suitable for use in ATEX zones 0, 1 and 2.

Product information "Curved element, (ID) 32 mm to GL25 (m)"

Curved element for pipe system, (ID) 32 mm to  GL25 (m)

- 1 x sealing ring PTFE-EL

- 1 x knurled nut

- tensile strength (Rm) = 400 N, tightening torque = 10 - 15 Nm

- PE-HD electrostatic conductive

Specifications
Electrostatic conductive plastic: Yes
Main material: HDPE-el
