SymLine FlexTube Pro, Length 1500 mm

Skip image gallery

US$376.31*

Content: 1
Information on prices, delivery- and payment-terms
Product number: 106573

Delivery Time: 7-10 days

We make your Lab a safer Place!

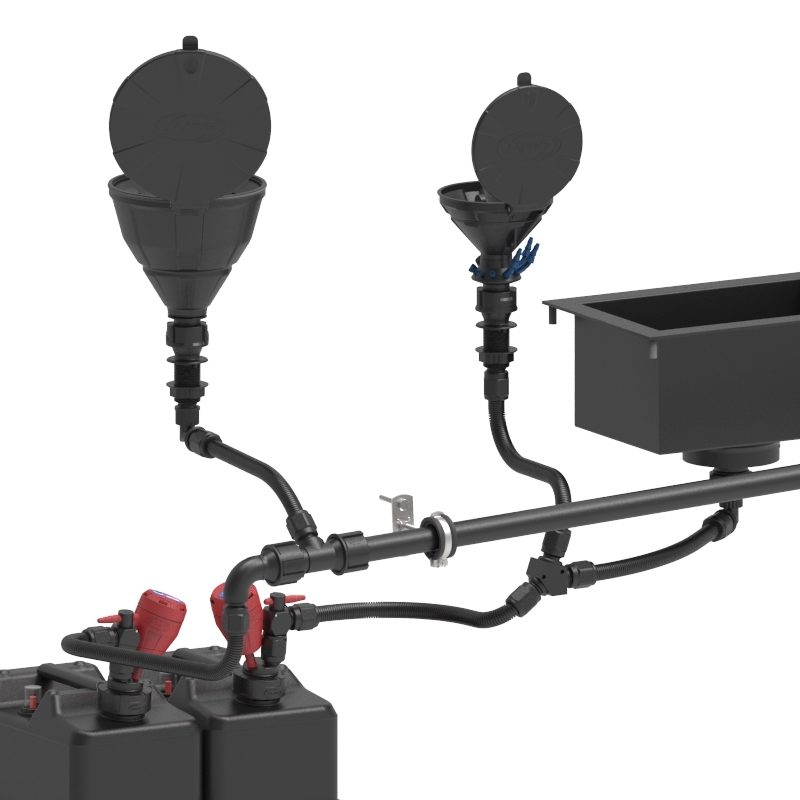

The SCAT SymLine FlexTube Pro is a flexibly adaptable hose system for the safe discharge of liquid solvent waste in the laboratory. The externally spiral-shaped and internally smooth design supports safe line routing and reduces deposits inside the hose. The electrically conductive PTFE high-performance hose is highly chemically resistant in accordance with SEFA 3 & 8 and suitable for ATEX zones 0, 1 and 2. Ideal for demanding SymLine installations with increased requirements for cleanliness and operational safety.

Product information "SymLine FlexTube Pro, Length 1500 mm"

SymLine FlexTube Pro 1500

- Length = 1500 mm

- PTFE electrostatic conductive and flexibly adaptable

ID = 13.4 - 13.9 mm, OD = 16.0 - 16.9 mm - outside spiral formed and inside smooth

- 2x GL25 screw connection - PTFE electrostatic conductive (106591)

- 1x Tube holder for SymLine FlexTube Pro, suitable for all cabinets (106558)

Specifications
Electrostatic conductive plastic: Yes
Main material: PTFE-el
Skip product gallery

Pipes

Curved element, (ID) 32 mm to GL25 (m)
Curved element, (ID) 32 mm to GL25 (m)
Product no.: 106456
Curved element for pipe system, (ID) 32 mm to  GL25 (m) - 1 x sealing ring PTFE-EL - 1 x knurled nut - tensile strength (Rm) = 400 N, tightening torque = 10 - 15 Nm - PE-HD electrostatic conductive

US$206.30*
Elbow piece, (ID) 32 mm to GL25 (m)
Elbow piece, (ID) 32 mm to GL25 (m)
Product no.: 106457
Curved element for pipe system, (ID) 32 mm to  GL25 (m) - 3% slope - 1 x sealing ring PTFE-EL - 1 x knurled nut - tensile strength (Rm) = 400 N, tightening torque = 10 - 15 Nm - PE-HD electrostatic conductive

US$234.82*
SymLine FLEX- Basic 32 pipe, GL45 + GL25
SymLine FLEX- Basic 32 pipe, GL45 + GL25
Product no.: 106688
SymLine FLEX -  Basic 32 pipe - 1x GL45 (m) - 1x GL25 (m) - 1 x sealing ring PTFE-EL - 1 x knurled nut - Length = 310 mm -  tensile strength (Rm) = 400 N, tightening torque = 10 - 15 Nm - PE-HD electrostatic conductive

US$387.08*
T-piece, 2x (ID) 32 mm, 1x GL25 (m)
T-piece, 2x (ID) 32 mm, 1x GL25 (m)
Product no.: 106458
T-piece for pipe, 2x (ID) 32 mm, 1x GL25 (m) - 2 x sealing ring PTFE-EL - 2 x knurled nut - tensile strength (Rm) = 400 N, tightening torque = 10 - 15 Nm - PE-HD electrostatic conductive

US$340.68*
T-piece, 2x (ID) 32 mm, 1x GL25 (m)
T-piece, 2x (ID) 32 mm, 1x GL25 (m)
Product no.: 106725
T-piece for pipe with 3° angle bothsides for pipe, 2x (ID) 32 mm, 1x GL25 (m) - 2 x sealing ring PTFE-EL - 2 x knurled nut - tensile strength (Rm) = 400 N, tightening torque = 10 - 15 Nm - PE-HD electrostatic conductive

US$340.68*
T-piece,1x(ID)32mm,1x(OD)32mm,1x GL25(m)
T-piece,1x(ID)32mm,1x(OD)32mm,1x GL25(m)
Product no.: 106711
T-piece for pipe, 1x (ID) 32 mm, 1x (OD) 32 mm, 1x GL25 (m) - 1 x sealing ring PTFE-EL - 1 x knurled nut - tensile strength (Rm) = 400 N, tightening torque = 10 - 15 Nm - PE-HD electrostatic conductive

US$323.07*
Skip product gallery

Safety Waste Caps

Safety Waste Cap S55, GL25 (m), el
Safety Waste Cap S55, GL25 (m), el
Product no.: 106522
Safety Waste Cap, S55, GL25(m) - immersed filling lance - connector for exhaust filter GL14 (f) - PTFE electrostatic conductive

US$220.74*
Safety Waste Cap S60/61, 1x GL25 el
Safety Waste Cap S60/61, 1x GL25 el
Product no.: 306482
Safety Waste Cap, S60/61, GL25 (m) - connector for exhaust filter GL14 (f) - PTFE electrostatic conductive

US$313.44*
Safety Waste Cap, GL45, GL25 (m), el
Safety Waste Cap, GL45, GL25 (m), el
Product no.: 106527
Safety Waste Cap, GL45, GL25(m) - immersed filling lance - connector for exhaust filter GL14 (f) - PTFE electrostatic conductive

US$209.88*
Safety Waste Cap, S55, GL25 (m), eleC
Safety Waste Cap, S55, GL25 (m), eleC
Product no.: 106478
Safety Waste Cap, S55, GL25(m) - electronic level control - immersed filling lance - connector for exhaust filter GL14 (f) - PTFE electrostatic conductive - ATEX-compliant

US$482.02*
Safety Waste Cap, S60/61, CS, 2m
Safety Waste Cap, S60/61, CS, 2m
Product no.: 306637
Safety Waste Cap, S60/61, GL25(m) - adjustable capacitive level control made of PTFE - cable connection M8 - connector for exhaust filter GL14 (f) - PTFE electrostatic conductive - ATEX-compliant

US$764.39*
Safety Waste Cap, S60/61, CS, 5m
Safety Waste Cap, S60/61, CS, 5m
Product no.: 306659
Safety Waste Cap, S60/61, GL25(m) - adjustable capacitive level control made of PTFE - cable connection open (Length = 5 m) - connector for exhaust filter GL14 (f) - PTFE electrostatic conductive - ATEX-compliant

US$923.07*
Safety Waste Cap, S60/61, CS, M8
Safety Waste Cap, S60/61, CS, M8
Product no.: 306581
Safety Waste Cap, S60/61, GL25(m) - adjustable capacitive level control made of PTFE - cable connection open (Length = 2 m) - connector for exhaust filter GL14 (f) - PTFE electrostatic conductive - ATEX-compliant

US$723.79*
Safety Waste Cap, S60/61, GL25 (m), eleC
Safety Waste Cap, S60/61, GL25 (m), eleC
Product no.: 106480
Safety Waste Cap, S60/61, GL25(m) - electronic level control - connector for exhaust filter GL14 (f) - PTFE electrostatic conductive - ATEX-compliant

US$491.00*
Safety Waste Cap, S90, GL25 (m), eleC
Safety Waste Cap, S90, GL25 (m), eleC
Product no.: 106484
Safety Waste Cap, S90, GL25 (m) - electronic level control - connector for exhaust filter GL14 (f) - PTFE electrostatic conductive - ATEX-compliant

US$634.01*
SafetyWasteCap,S55,with shut-off GL25(m)
SafetyWasteCap,S55,with shut-off GL25(m)
Product no.: 106719
Safety Waste Cap, S55, GL25 (m) - electronic level control - with shut-off GL25(m) - connector for exhaust filter GL14 (f) - PTFE electrostatic conductive - ATEX-compliant

US$695.39*
SafetyWasteCap,S60/61,shut-off GL25(m)
SafetyWasteCap,S60/61,shut-off GL25(m)
Product no.: 106718
Safety Waste Cap, S60/61, GL25 (m) - electronic level control - with shut-off GL25(m) - connector for exhaust filter GL14 (f) - PTFE electrostatic conductive - ATEX-compliant

US$695.39*
SafetyWasteCap,S90, shut-off GL25 (m)
SafetyWasteCap,S90, shut-off GL25 (m)
Product no.: 106720
Safety Waste Cap, S90, GL25 (m) - electronic level control - with shut-off GL25(m) - connector for exhaust filter GL14 (f) - PTFE electrostatic conductive - ATEX-compliant

US$856.50*
Skip product gallery

Connection Pieces

Adapter, PEHD ec, GL25(m)-pipe 50 mm OD
Adapter, PEHD ec, GL25(m)-pipe 50 mm OD
Product no.: 108293
Thread adapter, PE-HD ec, GL25 (m) -pipe 50 mm OD

US$111.61*
Angled adapter, 2x GL25 (f-m)
Angled adapter, 2x GL25 (f-m)
Product no.: 106680
Angled adapter GL25 (f) to GL25 (m) - PE-HD electrostatic conductive - for mounting on Desktop mounts with GL25 connection

US$119.99*
Angled adapter, 2x GL25 (m-f)
Angled adapter, 2x GL25 (m-f)
Product no.: 106620
Angled adapter GL25 (f) to GL25 (m) - PE-HD electrostatic conductive - for mounting on Safety Waste Caps with GL25 connection

US$119.99*
Manifold, 1x GL25 (w) auf 2x GL25 (m)
Manifold, 1x GL25 (w) auf 2x GL25 (m)
Product no.: 107125
Manifold, 1x GL25 (f) to 2x GL25 (m) - PE electrostatic conductive

US$220.42*
Manifold, 3x GL25 (m), PE el
Manifold, 3x GL25 (m), PE el
Product no.: 106476
Manifold, 3x GL25 (m), - PE-HD electrostatic conductive - with 2 fixation holes

US$202.26*
Shut-off, angled
Shut-off, angled
Product no.: 106475
Shut-off, angled, GL25 (f) to GL25 (m) - PTFE electrostatic conductive

US$353.96*
Thread adapter, 2x GL25 (m), PE el
Thread adapter, 2x GL25 (m), PE el
Product no.: 106417
Thread adapter,  GL25 (m) to GL25 (m) - PE-HD electrostatic conductive

US$61.48*
Thread adapter, 2x GL25 (w), PE el
Thread adapter, 2x GL25 (w), PE el
Product no.: 106523
Thread adapter, GL25 (f) to GL25 (f) - PE-HD electrostatic conductive

US$143.55*
Thread adapter, GL25(m)- G1/2"(m), PE el
Thread adapter, GL25(m)- G1/2"(m), PE el
Product no.: 106415
Thread adapter, GL25 (m) to G1/2" (m) - PE-HD electrostatic conductive

US$61.34*
Thread adapter, GL25(m)- G1/2"(w), PE el
Thread adapter, GL25(m)- G1/2"(w), PE el
Product no.: 106447
Thread adapter, G1/2" (f) to GL25 (m) - PE-HD electrostatic conductive - with O-ring EPDM

US$110.40*
Thread adapter, GL25(m)- G3/4"(m), PE el
Thread adapter, GL25(m)- G3/4"(m), PE el
Product no.: 106539
Thread adapter, GL25 (m) to G3/4" (m) - PE-HD electrostatic conductive

US$87.14*
