Safety Waste Cap, S55, GL25 (m), eleC

Skip image gallery

US$482.02*

Content: 1
Information on prices, delivery- and payment-terms
Product number: 106478

Delivery Time: 7-10 days

We make your Lab a safer Place!

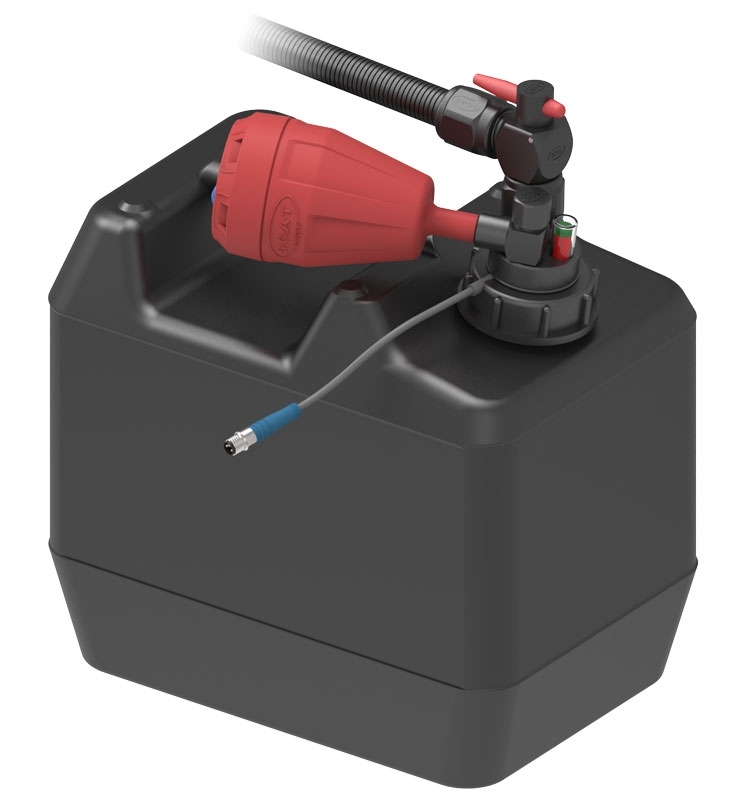

The SCAT SymLine Safety Waste Cap is a hermetically sealing safety closure for the safe collection of liquid laboratory waste. As a standardized interface between the collection container and the SymLine hose system, it enables the safe connection of HPLC waste lines as well as controlled ventilation via exhaust filters or central exhaust systems. The integrated electronic level control supports safe monitoring of the container and helps prevent overfilling and solvent emissions in the laboratory.

Product information "Safety Waste Cap, S55, GL25 (m), eleC"

Safety Waste Cap, S55, GL25(m)

- electronic level control

- immersed filling lance

- connector for exhaust filter GL14 (f)

- PTFE electrostatic conductive

- ATEX-compliant

Specifications
Electronic level control: Yes
Electrostatic conductive plastic: Yes
Main material: PTFE-el
Safety lance: Yes
Thread size: S55
Skip product gallery

Flex Tubes

SymLine FlexTube Pro, Length 1000 mm
SymLine FlexTube Pro, Length 1000 mm
Product no.: 106574
SymLine FlexTube Pro 1000 - Length = 1000mm - PTFE electrostatic conductive and flexible ODaptable ID = 13.4 - 13.9 mm, OD = 16.0 - 16.9 mm - outside spiral formed and inside smooth - 2x GL25 screw connection - PTFE electrostatic conductive (106591) - 1x Tube holder for SymLine FlexTube Pro, suitable for all cabinets (106558)

US$284.75*
SymLine FlexTube Pro, Length 1500 mm
SymLine FlexTube Pro, Length 1500 mm
Product no.: 106573
SymLine FlexTube Pro 1500 - Length = 1500 mm - PTFE electrostatic conductive and flexibly adaptable ID = 13.4 - 13.9 mm, OD = 16.0 - 16.9 mm - outside spiral formed and inside smooth - 2x GL25 screw connection - PTFE electrostatic conductive (106591) - 1x Tube holder for SymLine FlexTube Pro, suitable for all cabinets (106558)

US$376.31*
SymLine FlexTube Pro, Length 2500 mm
SymLine FlexTube Pro, Length 2500 mm
Product no.: 106572
SymLine FlexTube Pro 2500 - Length = 2500mm - PTFE electrostatic conductive and flexible ODaptable ID = 13.4 - 13.9 mm, OD = 16.0 - 16.9 mm - outside spiral formed and inside smooth - 2x GL25 screw connection - PTFE electrostatic conductive (106591) - 1x Tube holder for SymLine FlexTube Pro, suitable for all cabinets (106558)

US$559.05*
SymLine FlexTube Pro, Length 600 mm
SymLine FlexTube Pro, Length 600 mm
Product no.: 106575
SymLine FlexTube Pro 600 - Length = 600mm - PTFE electrostatic conductive and flexible ODaptable ID = 13.4 - 13.9 mm, OD = 16.0 - 16.9 mm - outside spiral formed and inside smooth - 2x GL25 screw connection - PTFE electrostatic conductive (106591) - 1x Tube holder for SymLine FlexTube Pro, suitable for all cabinets (106558)

US$211.80*
SymLine FlexTube, length 1000 mm
SymLine FlexTube, length 1000 mm
Product no.: 106568
SymLine FlexTube 1000: - Length = 1000 mm - PTFE electrostatic conductive and flexibly adaptable, ID = 14.3 - 14.8 mm, OD = 19.0 - 19.8 mm - spiral formed - 2x GL25 screw connection - PTFE electrostatic conductive (106579) - 1x Tube holder for SymLine FlexTube, suitable for all cabinets (106562)

US$162.92*
SymLine FlexTube, length 1500 mm
SymLine FlexTube, length 1500 mm
Product no.: 106567
SymLine FlexTube 1500: - Length = 1500 mm - PTFE electrostatic conductive and flexibly adaptable, ID = 14.3 - 14.8 mm, OD = 19.0 - 19.8 mm - spiral formed - 2x GL25 screw connection - PTFE electrostatic conductive (106579) - 1x Tube holder for SymLine FlexTube, suitable for all cabinets (106562)

US$183.22*
SymLine FlexTube, length 2500 mm
SymLine FlexTube, length 2500 mm
Product no.: 106566
SymLine FlexTube 2500: - Length = 2500 mm - PTFE electrostatic conductive and flexibly adaptable, ID = 14.3 - 14.8 mm, OD = 19.0 - 19.8 mm - spiral formed - 2x GL25 screw connection - PTFE electrostatic conductive (106579) - 1x Tube holder for SymLine FlexTube, suitable for all cabinets (106562)

US$223.36*
SymLine FlexTube, length 600 mm
SymLine FlexTube, length 600 mm
Product no.: 106569
SymLine FlexTube 600: - Length = 600 mm - PTFE electrostatic conductive and flexibly adaptable, ID = 14.3 - 14.8 mm, OD = 19.0 - 19.8 mm - spiral formed - 2x GL25 screw connection - PTFE electrostatic conductive (106579) - 1x Tube holder for SymLine FlexTube, suitable for all cabinets (106562)

US$146.74*
Skip product gallery

Exhaust Filters

Act. carbon exhaust filter L, 12M, dis 1
Act. carbon exhaust filter L, 12M, dis 1
Product no.: 407986
Activated carbon exhaust filter L, GL14 - with splash guard and change indicator - service life 12 months

US$205.97*
Act. carbon exhaust filter L, 12M, dis 2
Act. carbon exhaust filter L, 12M, dis 2
Product no.: 490986
Activated carbon exhaust filter L, GL14 - economy package - with splash guard and change indicator - service life 12 months - quantity = 2 pieces

US$317.76*
Act. carbon exhaust filter L, 12M, lab 1
Act. carbon exhaust filter L, 12M, lab 1
Product no.: 407983
Activated carbon exhaust filter L, GL14 - with splash guard and change label - service life 12 months

US$198.00*
Act. carbon exhaust filter L, 12M, lab 2
Act. carbon exhaust filter L, 12M, lab 2
Product no.: 490915
Activated carbon exhaust filter L, GL14 - economy package - with splash guard and change label - service life 12 months - quantity = 2 pieces

US$304.98*
Act. carbon exhaust filter M 6M, dis, 1
Act. carbon exhaust filter M 6M, dis, 1
Product no.: 410535
Activated carbon exhaust filter M, GL14 - with splash guard and change indicator, - service life 6 months

US$148.34*
Act. carbon exhaust filter M 6M, lab, 1
Act. carbon exhaust filter M 6M, lab, 1
Product no.: 407982
Activated carbon exhaust filter M, GL14 - with splash guard and change label - service life 6 months

US$141.95*
Act. carbon exhaust filter M, 6M, dis, 2
Act. carbon exhaust filter M, 6M, dis, 2
Product no.: 490914
Activated carbon exhaust filter M, GL14 - economy package - with splash guard and change label - service life 6 months - quantity = 2 pieces

US$258.68*
Act. carbon exhaust filter M, 6M, lab, 2
Act. carbon exhaust filter M, 6M, lab, 2
Product no.: 490336
Activated carbon exhaust filter M, GL14 - economy package - with splash guard and change indicator - service life 6 months - quantity = 2 pieces

US$269.85*
Act. carbon exhaust filter S 3M, dis, 1
Act. carbon exhaust filter S 3M, dis, 1
Product no.: 410534
Activated carbon exhaust filter S, GL14, with splash guard and change indicator, service life 3 months

US$95.65*
Act. carbon exhaust filter S 3M, dis, 4
Act. carbon exhaust filter S 3M, dis, 4
Product no.: 490335
Activated carbon exhaust filter S, GL14 - economy package - with splash guard and change indicator - service life 3 months, - quantity = 4 pieces

US$333.72*
Skip product gallery

Adapter

Adapter, PEHD ec, GL25(m)-pipe 50 mm OD
Adapter, PEHD ec, GL25(m)-pipe 50 mm OD
Product no.: 108293
Thread adapter, PE-HD ec, GL25 (m) -pipe 50 mm OD

US$111.61*
Angled adapter, 2x GL25 (f-m)
Angled adapter, 2x GL25 (f-m)
Product no.: 106680
Angled adapter GL25 (f) to GL25 (m) - PE-HD electrostatic conductive - for mounting on Desktop mounts with GL25 connection

US$119.99*
Angled adapter, 2x GL25 (m-f)
Angled adapter, 2x GL25 (m-f)
Product no.: 106620
Angled adapter GL25 (f) to GL25 (m) - PE-HD electrostatic conductive - for mounting on Safety Waste Caps with GL25 connection

US$119.99*
Manifold, 1x GL25 (w) auf 2x GL25 (m)
Manifold, 1x GL25 (w) auf 2x GL25 (m)
Product no.: 107125
Manifold, 1x GL25 (f) to 2x GL25 (m) - PE electrostatic conductive

US$220.42*
Manifold, 3x GL25 (m), PE el
Manifold, 3x GL25 (m), PE el
Product no.: 106476
Manifold, 3x GL25 (m), - PE-HD electrostatic conductive - with 2 fixation holes

US$202.26*
Shut-off, angled
Shut-off, angled
Product no.: 106475
Shut-off, angled, GL25 (f) to GL25 (m) - PTFE electrostatic conductive

US$353.96*
Thread adapter, 2x GL25 (m), PE el
Thread adapter, 2x GL25 (m), PE el
Product no.: 106417
Thread adapter,  GL25 (m) to GL25 (m) - PE-HD electrostatic conductive

US$61.48*
Thread adapter, 2x GL25 (w), PE el
Thread adapter, 2x GL25 (w), PE el
Product no.: 106523
Thread adapter, GL25 (f) to GL25 (f) - PE-HD electrostatic conductive

US$143.55*
Thread adapter, GL25(m)- G1/2"(m), PE el
Thread adapter, GL25(m)- G1/2"(m), PE el
Product no.: 106415
Thread adapter, GL25 (m) to G1/2" (m) - PE-HD electrostatic conductive

US$61.34*
Thread adapter, GL25(m)- G1/2"(w), PE el
Thread adapter, GL25(m)- G1/2"(w), PE el
Product no.: 106447
Thread adapter, G1/2" (f) to GL25 (m) - PE-HD electrostatic conductive - with O-ring EPDM

US$110.40*
Thread adapter, GL25(m)- G3/4"(m), PE el
Thread adapter, GL25(m)- G3/4"(m), PE el
Product no.: 106539
Thread adapter, GL25 (m) to G3/4" (m) - PE-HD electrostatic conductive

US$87.14*
Skip product gallery

Signalboxes

Built-in Signalbox1
Built-in Signalbox1
Product no.: 106741
Built-in Signalbox1, EU / UK /US, 1-channel - for Safety Waste Cap and other electronical level controlers - touchless alarm-resetting fields for one container - one switch input and one switch output for peripheral units - incl.B40:E96 24 V power supply

US$513.25*
Built-in Signalbox2
Built-in Signalbox2
Product no.: 106548
Built-in Signalbox2, EU / UK /US, 2-channel - for Safety Waste Cap and other electronical level controlers - touchless alarm-resetting fields for two containers - two switch inputs and two switch outputs for peripheral units - incl. 24 V power supply

US$769.87*
Built-in Signalbox5
Built-in Signalbox5
Product no.: 106735
Built-in Signalbox5, EU / UK /US, 5-channel - for Safety Waste Cap and other electronical level controlers - touchless alarm-resetting fields for five containers - five switch inputs and five switch outputs for peripheral units - incl. 24 V power supply

US$975.17*
Table signal box T1, 1 sensor input
Table signal box T1, 1 sensor input
Product no.: 108087
Table signal box T1 - EU / UK / US, with 1 sensor input and 1 potential-free output (can be used to control external devices). Display: LED, power supply: 24V DC EU / UK / US plug, switching power: 24V/2A, power consumption: max. 4W, dimensions (WxHxD): ca. 180x105x55 mm, weight: ca 0.65 kg, operating temperature: +5°C to +40°C.

US$545.75*
Table signal box T5, 5 sensor inputs
Table signal box T5, 5 sensor inputs
Product no.: 108088
Table signal box T5 - EU / UK / US, with 5 sensor inputs and 6 potential-free outputs (can be used to control external devices). Display: LED, power supply: 24V DC EU / UK / US plug, switching power: 24V/2A, power consumption: max. 4W, Dimensions (WxHxD): ca. 180x105x55 mm, weight: ca 0.65 kg, operating temperature: +5°C bis +40°C.

US$1,024.78*
