SymLine FLEX - Extension 1

Skip image gallery

US$199.60*

Content: 1
Information on prices, delivery- and payment-terms
Product number: 106690

Delivery Time: 7-10 days

We make your Lab a safer Place!

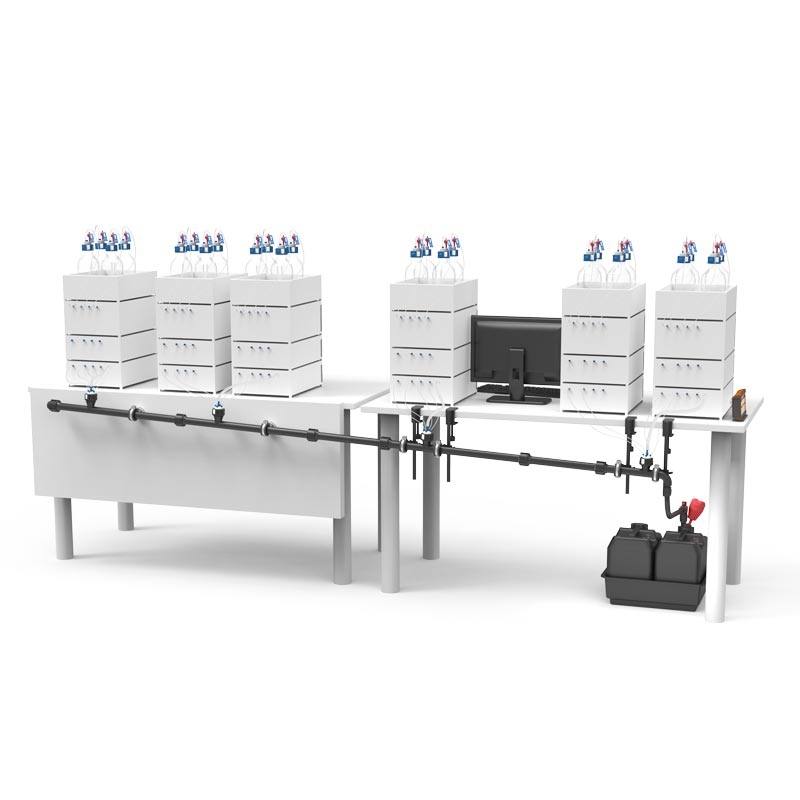

The SCAT SymLine FLEX extension expands modular pipe systems for the safe discharge of liquid laboratory waste. It enables flexible adaptation of line routes within existing SymLine installations. The electrically conductive PE-HD high-performance plastic is chemically resistant and supports safe use in fume hoods, safety cabinets and central collection systems.

Product information "SymLine FLEX - Extension 1"

SymLine FLEX - Extension

- 1 x sealing ring PTFE-EL

- 1 x knurled nut

- Length = 600 mm

-  tensile strength (Rm) = 400 N, tightening torque = 10 - 15 Nm

- PE-HD electrostatic conductive

Specifications
Electrostatic conductive plastic: Yes
Main material: HDPE-el
Skip product gallery

Extension pipe

SymLine FLEX - Extension 2
SymLine FLEX - Extension 2
Product no.: 106689
SymLine FLEX - Extension - 1x GL45 (m) - 1 x sealing ring PTFE-EL - 1 x knurled nut - Length = 600 mm -  tensile strength (Rm) = 400 N, tightening torque = 10 - 15 Nm - PE-HD electrostatic conductive

US$269.69*
SymLine FLEX extension 1200 mm
SymLine FLEX extension 1200 mm
Product no.: 106700
SymLine FLEX - Extension - 1 x sealing ring PTFE-EL - 1 x knurled nut - Length = 1200 mm -  tensile strength (Rm) = 400 N, tightening torque = 10 - 15 Nm - PE-HD electrostatic conductive

US$284.22*
SymLine FLEX - Extension 4
SymLine FLEX - Extension 4
Product no.: 106732
SymLine FLEX - Extension - 1x GL45 (m) - 1 x sealing ring PTFE-EL - 1 x knurled nut - Length = 1200 mm -  tensile strength (Rm) = 400 N, tightening torque = 10 - 15 Nm - PE-HD electrostatic conductive

US$354.32*
Skip product gallery

Curved element

Curved element, (ID) 32 mm to (OD) 32 mm
Curved element, (ID) 32 mm to (OD) 32 mm
Product no.: 106421
Curved element for pipe system, (ID) 32 mm to  (OD) 32 mm - 1 x sealing ring PTFE-EL - 1 x knurled nut - tensile strength (Rm) = 400 N, tightening torque = 10 - 15 Nm - PE-HD electrostatic conductive

US$173.50*
Curved element, (ID) 32 mm to GL25 (m)
Curved element, (ID) 32 mm to GL25 (m)
Product no.: 106456
Curved element for pipe system, (ID) 32 mm to  GL25 (m) - 1 x sealing ring PTFE-EL - 1 x knurled nut - tensile strength (Rm) = 400 N, tightening torque = 10 - 15 Nm - PE-HD electrostatic conductive

US$206.30*
Elbow piece, (ID) 32 mm to GL25 (m)
Elbow piece, (ID) 32 mm to GL25 (m)
Product no.: 106457
Curved element for pipe system, (ID) 32 mm to  GL25 (m) - 3% slope - 1 x sealing ring PTFE-EL - 1 x knurled nut - tensile strength (Rm) = 400 N, tightening torque = 10 - 15 Nm - PE-HD electrostatic conductive

US$234.82*
SymLine FLEX- Basic 32 pipe, GL45 + GL25
SymLine FLEX- Basic 32 pipe, GL45 + GL25
Product no.: 106688
SymLine FLEX -  Basic 32 pipe - 1x GL45 (m) - 1x GL25 (m) - 1 x sealing ring PTFE-EL - 1 x knurled nut - Length = 310 mm -  tensile strength (Rm) = 400 N, tightening torque = 10 - 15 Nm - PE-HD electrostatic conductive

US$387.08*
Skip product gallery

T-piece

T-piece,1x(ID)32mm,1x(OD)32mm,1x GL25(m)
T-piece,1x(ID)32mm,1x(OD)32mm,1x GL25(m)
Product no.: 106711
T-piece for pipe, 1x (ID) 32 mm, 1x (OD) 32 mm, 1x GL25 (m) - 1 x sealing ring PTFE-EL - 1 x knurled nut - tensile strength (Rm) = 400 N, tightening torque = 10 - 15 Nm - PE-HD electrostatic conductive

US$323.07*
T-piece,1x(ID)32mm,1x(OD)32mm,1x GL45(m)
T-piece,1x(ID)32mm,1x(OD)32mm,1x GL45(m)
Product no.: 106713
T-piece for pipe, 1x (ID) 32 mm, 1x (OD) 32 mm, 1x GL45 (m) - 1 x sealing ring PTFE-EL - 1 x knurled nut - tensile strength (Rm) = 400 N, tightening torque = 10 - 15 Nm - PE-HD electrostatic conductive

US$323.07*
T-piece, 2x (ID) 32 mm, 1x GL25 (m)
T-piece, 2x (ID) 32 mm, 1x GL25 (m)
Product no.: 106458
T-piece for pipe, 2x (ID) 32 mm, 1x GL25 (m) - 2 x sealing ring PTFE-EL - 2 x knurled nut - tensile strength (Rm) = 400 N, tightening torque = 10 - 15 Nm - PE-HD electrostatic conductive

US$340.68*
T-piece, 3x (ID) 32 mm
T-piece, 3x (ID) 32 mm
Product no.: 106426
T-piece for pipe, 3x (ID) 32 mm - 3 x sealing ring PTFE-EL - 3 x knurled nut - tensile strength (Rm) = 400 N, tightening torque = 10 - 15 Nm - PE-HD electrostatic conductive

US$323.07*
T-piece, 2x (ID) 32 mm, 1x (OD) 32 mm
T-piece, 2x (ID) 32 mm, 1x (OD) 32 mm
Product no.: 106712
T-piece for pipe, 2x (ID) 32 mm, 1x (OD) 32 mm - 2 x sealing ring PTFE-EL - 2 x knurled nut - tensile strength (Rm) = 400 N, tightening torque = 10 - 15 Nm - PE-HD electrostatic conductive

US$323.07*
T-piece, 2x (ID) 32 mm, 1x GL25 (m)
T-piece, 2x (ID) 32 mm, 1x GL25 (m)
Product no.: 106725
T-piece for pipe with 3° angle bothsides for pipe, 2x (ID) 32 mm, 1x GL25 (m) - 2 x sealing ring PTFE-EL - 2 x knurled nut - tensile strength (Rm) = 400 N, tightening torque = 10 - 15 Nm - PE-HD electrostatic conductive

US$340.68*
Connector, straight, 2x (ID) 32 mm
Connector, straight, 2x (ID) 32 mm
Product no.: 106427
Connector for pipes, straight, (ID) 32mm - PE-HD electrostatic conductive - 1 x sealing ring PTFE-EL - 1 x knurled nut - tensile strength (Rm) = 400 N, tightening torque = 10 - 15 Nm

US$188.14*
Skip product gallery

Mounting Pipe System

Mounting for Pipe System
Mounting for Pipe System
Product no.: 106609
Mounting for piping system 32 mm (OD) - bolts and nuts included

US$34.81*
SymLine FLEX - Table mount
SymLine FLEX - Table mount
Product no.: 106691
SymLine FLEX - Table mount for piping system 32 mm (OD) - adjustable height

US$143.71*
SymLine FLEX - Universal wall mount
SymLine FLEX - Universal wall mount
Product no.: 106695
SymLine FLEX - Universal mountable wall mount   - Screw fastening: suitable for wooden and plastic substrates. - Self-adhesive: suitable for almost all substrates.  - Magnetic: suitable for substrates made of metal.

US$57.03*
Skip product gallery

Lab sink

Lab sink, drain,Pipe 32mm (OD),angled
Lab sink, drain,Pipe 32mm (OD),angled
Product no.: 118025
Lab sink with drain and mounting sleeve with Pipe 32mm (OD), angled with 3° slope - PE-HD electrostatic conductive - incl. grounding cable - dimensions: (W x H x D): 400 x 300 x 190 mm, wall - thickness: 6 mm

US$926.12*
Skip product gallery

Grounding

Grounding for Ø 32 pipe, ID 5mm, 3m
Grounding for Ø 32 pipe, ID 5mm, 3m
Product no.: 108262
Grounding cable - 1x clip for Ø 32 mm pipe - 1x ring connector ID 5 mm - length = 3 m

US$47.24*
Grounding for Ø 32 pipe, clamp, 3m
Grounding for Ø 32 pipe, clamp, 3m
Product no.: 108176
Grounding cable - 1x clip for Ø 32 mm pipe - 1x clamp - length = 3 m

US$56.48*
Grounding for Ø 32 pipe, ID 6mm, 1.5m
Grounding for Ø 32 pipe, ID 6mm, 1.5m
Product no.: 108285
Grounding cable - 1x clamp - 1x ring connector ID 6 mm - length = 1.5 m

US$63.71*
Skip product gallery

Accessories

Collector-Plug, pipe system, 32mm(OD)
Collector-Plug, pipe system, 32mm(OD)
Product no.: 106729
Collector-Plug for the Symline pipe system, 32mm OD - 2x PFA fittings for capillary with (OD) 1.6/2.3/3.2 mm incl. blind plugs - 2x tube connector for tube with (ID) 5.0 - 11.5mm incl. blind plugs - PE-HD electrostatic conductive

US$102.03*
Hook wrench with nose
Hook wrench with nose
Product no.: 106724
Hook wrench with nose - for mounting the union nut on SymLine pipe systems (Ø 52 - 55 mm)

US$31.71*
Adapter, PEHD ec, GL25(m)-pipe 50 mm OD
Adapter, PEHD ec, GL25(m)-pipe 50 mm OD
Product no.: 108293
Thread adapter, PE-HD ec, GL25 (m) -pipe 50 mm OD

US$111.61*
