SymLine FLEX - Extension 4

Skip image gallery

US$354.32*

Content: 1
Information on prices, delivery- and payment-terms
Product number: 106732

Delivery Time: 7-10 days

We make your Lab a safer Place!

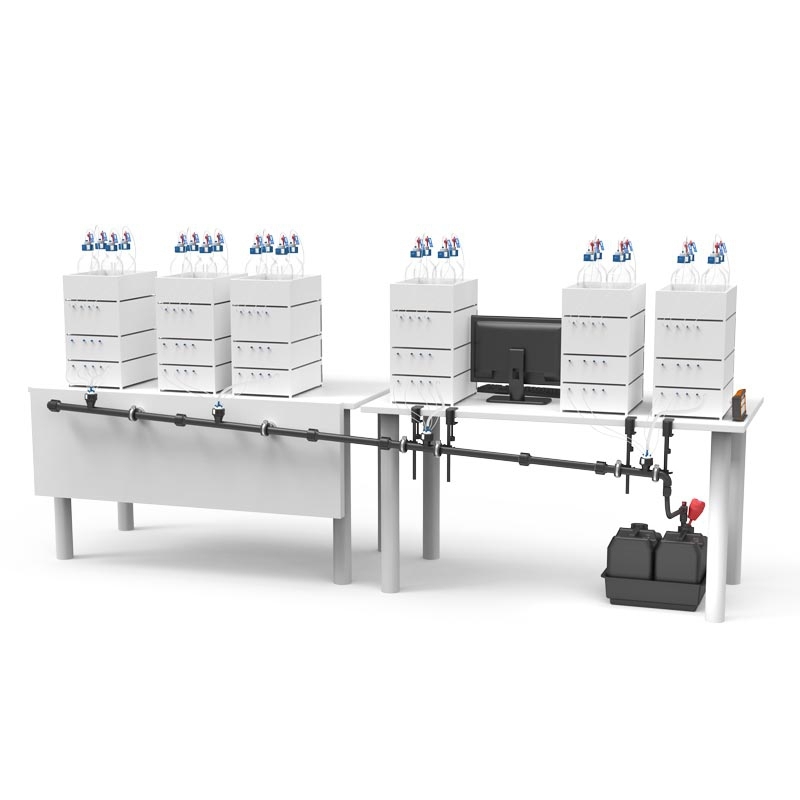

The SCAT SymLine FLEX extension with a length of 1200 mm expands modular pipe systems for the safe discharge of liquid laboratory waste. The GL45 connection enables the integration of filling units and system components into existing SymLine installations. The electrically conductive PE-HD high-performance plastic is chemically resistant and supports safe use in fume hoods, safety cabinets and central collection systems.

Product information "SymLine FLEX - Extension 4"

SymLine FLEX - Extension

- 1x GL45 (m)

- 1 x sealing ring PTFE-EL

- 1 x knurled nut

- Length = 1200 mm

-  tensile strength (Rm) = 400 N, tightening torque = 10 - 15 Nm

- PE-HD electrostatic conductive

Specifications
Electrostatic conductive plastic: Yes
Main material: HDPE-el
