Safety Waste Cap, S60/61, conti.

Skip image gallery

US$637.20*

Content: 1
Information on prices, delivery- and payment-terms
Product number: 106507
We make your Lab a safer Place!

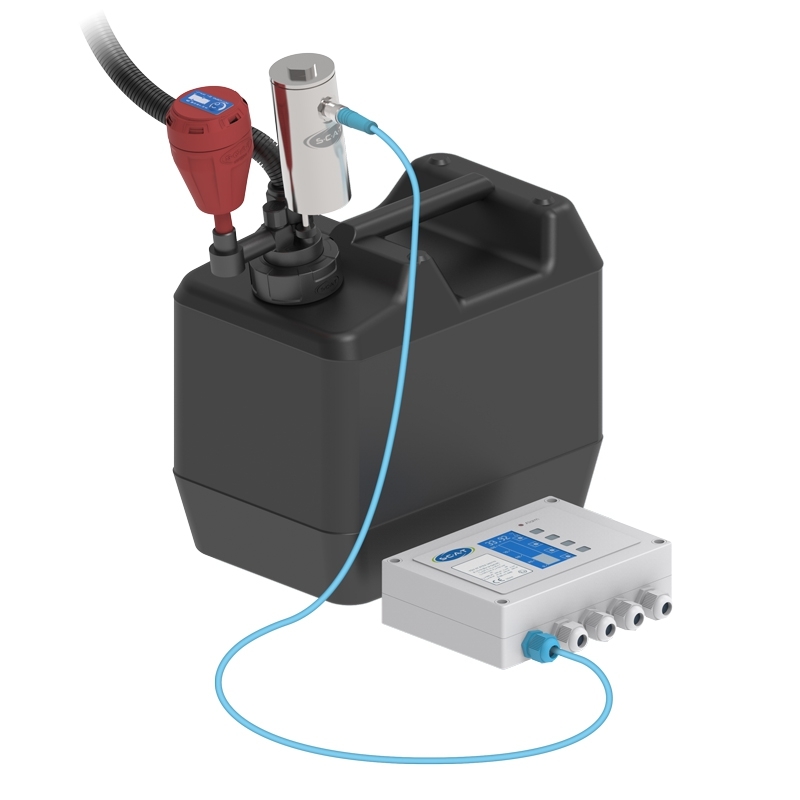

The SCAT SymLine Safety Waste Cap S60/61 is a hermetically sealing safety closure for the safe collection of liquid laboratory waste. It is prepared for use with the continuous SCAT level control 502042 and enables permanent monitoring of the container fill level. As a standardized interface between the collection container and the SymLine tubing system, it supports the safe discharge of liquid solvent waste. Venting is carried out either via SCAT exhaust filters or by direct connection to a central exhaust system.

Product information "Safety Waste Cap, S60/61, conti."

Safety Waste Cap, S60/61, GL25 (m) for continuous level control

- fitting for continuous level control (502042)

- connector for exhaust filter

- PE-HD electrostatic conductive

Specifications
Electrostatic conductive plastic: Yes
Main material: HDPE-el
Thread size: S60/61
Skip product gallery

Canisters

Canister, 10 L, S60/61, el
Canister, 10 L, S60/61, el
Product no.: 107953
Canister 10 L, S60/61 - PE-HD electrostatic conductive - UN-Y approval - dimensions (W x H x D): 200 x 258 x 300 mm   Note: Canisters are marked with production date (month / year) and will normally be delivered by us within 6 months from the production date.

US$87.66*
Skip product gallery

Flex Tubes

SymLine FlexTube Pro, Length 1000 mm
SymLine FlexTube Pro, Length 1000 mm
Product no.: 106574
SymLine FlexTube Pro 1000 - Length = 1000mm - PTFE electrostatic conductive and flexible ODaptable ID = 13.4 - 13.9 mm, OD = 16.0 - 16.9 mm - outside spiral formed and inside smooth - 2x GL25 screw connection - PTFE electrostatic conductive (106591) - 1x Tube holder for SymLine FlexTube Pro, suitable for all cabinets (106558)

US$284.75*
SymLine FlexTube Pro, Length 1500 mm
SymLine FlexTube Pro, Length 1500 mm
Product no.: 106573
SymLine FlexTube Pro 1500 - Length = 1500 mm - PTFE electrostatic conductive and flexibly adaptable ID = 13.4 - 13.9 mm, OD = 16.0 - 16.9 mm - outside spiral formed and inside smooth - 2x GL25 screw connection - PTFE electrostatic conductive (106591) - 1x Tube holder for SymLine FlexTube Pro, suitable for all cabinets (106558)

US$376.31*
SymLine FlexTube Pro, Length 2500 mm
SymLine FlexTube Pro, Length 2500 mm
Product no.: 106572
SymLine FlexTube Pro 2500 - Length = 2500mm - PTFE electrostatic conductive and flexible ODaptable ID = 13.4 - 13.9 mm, OD = 16.0 - 16.9 mm - outside spiral formed and inside smooth - 2x GL25 screw connection - PTFE electrostatic conductive (106591) - 1x Tube holder for SymLine FlexTube Pro, suitable for all cabinets (106558)

US$559.05*
SymLine FlexTube Pro, Length 600 mm
SymLine FlexTube Pro, Length 600 mm
Product no.: 106575
SymLine FlexTube Pro 600 - Length = 600mm - PTFE electrostatic conductive and flexible ODaptable ID = 13.4 - 13.9 mm, OD = 16.0 - 16.9 mm - outside spiral formed and inside smooth - 2x GL25 screw connection - PTFE electrostatic conductive (106591) - 1x Tube holder for SymLine FlexTube Pro, suitable for all cabinets (106558)

US$211.80*
SymLine FlexTube, length 1000 mm
SymLine FlexTube, length 1000 mm
Product no.: 106568
SymLine FlexTube 1000: - Length = 1000 mm - PTFE electrostatic conductive and flexibly adaptable, ID = 14.3 - 14.8 mm, OD = 19.0 - 19.8 mm - spiral formed - 2x GL25 screw connection - PTFE electrostatic conductive (106579) - 1x Tube holder for SymLine FlexTube, suitable for all cabinets (106562)

US$162.92*
SymLine FlexTube, length 1500 mm
SymLine FlexTube, length 1500 mm
Product no.: 106567
SymLine FlexTube 1500: - Length = 1500 mm - PTFE electrostatic conductive and flexibly adaptable, ID = 14.3 - 14.8 mm, OD = 19.0 - 19.8 mm - spiral formed - 2x GL25 screw connection - PTFE electrostatic conductive (106579) - 1x Tube holder for SymLine FlexTube, suitable for all cabinets (106562)

US$183.22*
SymLine FlexTube, length 2500 mm
SymLine FlexTube, length 2500 mm
Product no.: 106566
SymLine FlexTube 2500: - Length = 2500 mm - PTFE electrostatic conductive and flexibly adaptable, ID = 14.3 - 14.8 mm, OD = 19.0 - 19.8 mm - spiral formed - 2x GL25 screw connection - PTFE electrostatic conductive (106579) - 1x Tube holder for SymLine FlexTube, suitable for all cabinets (106562)

US$223.36*
SymLine FlexTube, length 600 mm
SymLine FlexTube, length 600 mm
Product no.: 106569
SymLine FlexTube 600: - Length = 600 mm - PTFE electrostatic conductive and flexibly adaptable, ID = 14.3 - 14.8 mm, OD = 19.0 - 19.8 mm - spiral formed - 2x GL25 screw connection - PTFE electrostatic conductive (106579) - 1x Tube holder for SymLine FlexTube, suitable for all cabinets (106562)

US$146.74*
Skip product gallery

Exhaust filters

Act. carbon exhaust filter L, 12M, dis 1
Act. carbon exhaust filter L, 12M, dis 1
Product no.: 407986
Activated carbon exhaust filter L, GL14 - with splash guard and change indicator - service life 12 months

US$205.97*
Act. carbon exhaust filter L, 12M, dis 2
Act. carbon exhaust filter L, 12M, dis 2
Product no.: 490986
Activated carbon exhaust filter L, GL14 - economy package - with splash guard and change indicator - service life 12 months - quantity = 2 pieces

US$317.76*
Act. carbon exhaust filter L, 12M, lab 1
Act. carbon exhaust filter L, 12M, lab 1
Product no.: 407983
Activated carbon exhaust filter L, GL14 - with splash guard and change label - service life 12 months

US$198.00*
Act. carbon exhaust filter L, 12M, lab 2
Act. carbon exhaust filter L, 12M, lab 2
Product no.: 490915
Activated carbon exhaust filter L, GL14 - economy package - with splash guard and change label - service life 12 months - quantity = 2 pieces

US$304.98*
Act. carbon exhaust filter M 6M, dis, 1
Act. carbon exhaust filter M 6M, dis, 1
Product no.: 410535
Activated carbon exhaust filter M, GL14 - with splash guard and change indicator, - service life 6 months

US$148.34*
Act. carbon exhaust filter M 6M, lab, 1
Act. carbon exhaust filter M 6M, lab, 1
Product no.: 407982
Activated carbon exhaust filter M, GL14 - with splash guard and change label - service life 6 months

US$141.95*
Act. carbon exhaust filter M, 6M, dis, 2
Act. carbon exhaust filter M, 6M, dis, 2
Product no.: 490914
Activated carbon exhaust filter M, GL14 - economy package - with splash guard and change label - service life 6 months - quantity = 2 pieces

US$258.68*
Act. carbon exhaust filter M, 6M, lab, 2
Act. carbon exhaust filter M, 6M, lab, 2
Product no.: 490336
Activated carbon exhaust filter M, GL14 - economy package - with splash guard and change indicator - service life 6 months - quantity = 2 pieces

US$269.85*
Act. carbon exhaust filter S 3M, dis, 1
Act. carbon exhaust filter S 3M, dis, 1
Product no.: 410534
Activated carbon exhaust filter S, GL14, with splash guard and change indicator, service life 3 months

US$95.65*
Act. carbon exhaust filter S 3M, dis, 4
Act. carbon exhaust filter S 3M, dis, 4
Product no.: 490335
Activated carbon exhaust filter S, GL14 - economy package - with splash guard and change indicator - service life 3 months, - quantity = 4 pieces

US$333.72*
Skip product gallery

Continuous level control

Continuous level control
Continuous level control
Product no.: 502042
Set for continuous level control - With Signalbox UM-O-Ex with 230 VAC - With display unit and stainless steel sensor probe - Incl. cable with open ends - Pre-alarm at 75% - Max. level at 95% of the container 107953 - Level sensor TORRIX Ex 6 B NT for bypass without HART - Probe head material: stainless steel 303/316L - Protection class: IP68 - Probe tube material: stainless steel 1.4571 - Probe length: 265 mm - Probe tube diameter: 6 mm - For canister 107953 and Safety Waste Cap 106507 - Accuracy: up to ±0.01%

US$2,790.94*
