HPLC Solvent Waste Container: RCRA, OSHA & NFPA Compliance Guide

Which container is suitable for HPLC waste disposal? A practical guide to waste profiles, materials, handling and safety

In US HPLC laboratories, solvent waste is generated daily from common mobile phases such as acetonitrile, methanol, and aqueous-organic mixtures. Proper management of this waste is essential to protect personnel from vapor exposure, prevent spills, and maintain compliance with federal regulations. The choice of collection container directly affects laboratory safety, air quality, handling efficiency, and regulatory performance under RCRA, OSHA, and NFPA standards. Container selection is not simply a matter of volume. A 5-gallon carboy or safety can can perform very differently depending on material compatibility, port configuration, venting method, static control measures, and how it integrates into your waste accumulation and disposal workflow. Larger containers may appear more economical but introduce new operational questions around safe handling, transport, and whether the container itself will be used for off-site shipment. This guide provides a systematic, US-focused approach to selecting and configuring an HPLC solvent waste collection system that supports both safety and compliance.

Quick Checklist: 10 Key Questions Before Choosing Your HPLC Waste Container

• Determine the composition of your HPLC waste and its RCRA characteristics
• Calculate generation rates and identify your generator status (VSQG, SQG, or LQG)
• Assess peak volumes and periods of unattended operation
• Define your accumulation approach (Satellite Accumulation Area or Central Accumulation Area)
• Select container material compatible with the waste stream
• Choose appropriate volume and physical footprint
• Plan for placement and secondary containment
• Configure multi-port safety cap and tubing connections
• Establish reliable level monitoring and overflow protection
• Clarify DOT packaging requirements if the container will leave the facility



1. Define Your Waste Profile

Begin with a clear understanding of the waste stream. Identify the solvents and mixtures being collected (e.g., acetonitrile-rich, methanol-containing, or aqueous buffers) and determine whether the waste exhibits RCRA hazardous characteristics, most commonly ignitability (D001). Quantify generation rates consistently — per hour, per day, per week, or per collection cycle. Account for peak periods when multiple instruments run in parallel and for unattended operation (overnight or weekend runs). Uncontrolled accumulation can lead to overfilling, back-pressure into HPLC systems, or spills that create both safety and compliance concerns.

Key Takeaway for US Labs: Accurate waste characterization and volume tracking form the foundation for all subsequent decisions on container size, material, monitoring, and accumulation limits.

2. Establish Your Disposal and Accumulation Strategy

Decide how filled containers will be managed within your facility’s waste program. Most laboratories accumulate waste in Satellite Accumulation Areas (SAAs) located at or near the point of generation and under the control of the operator. RCRA requires that containers in SAAs remain closed except when waste is actively being added.

When containers are moved to a Central Accumulation Area (CAA) or prepared for off-site transport, additional requirements apply. Many facilities prefer closed collection systems with quick-disconnect fittings that allow clean container changes without disconnecting tubing lines, thereby minimizing exposure and maintaining a closed system.

Work closely with your EHS department and permitted hazardous waste transporter to determine whether the collection container can remain in service until pickup or whether repacking into approved shipping containers is required.

Key Takeaway for US Labs: Align container selection and configuration with your RCRA accumulation strategy and hauler requirements from the outset.

3. Review Key US Safety and Regulatory Requirements

HPLC solvent waste is frequently flammable and may also present toxicity or other hazards. The primary federal frameworks that influence container selection and use are:

• RCRA (40 CFR Parts 260–273) — Hazardous waste determination, container management standards, Satellite and Central Accumulation Area requirements, and the closed-container rule.
• OSHA 29 CFR 1910.106 — Storage and handling of flammable and combustible liquids.
• NFPA 30 — Flammable and Combustible Liquids Code.
• NFPA 45 — Fire Protection for Laboratories Using Chemicals (including quantity limits within laboratory units).
• NFPA 77 — Recommended Practice on Static Electricity (widely followed as recognized good engineering practice for controlling ignition risks from static discharge during filling or transfer operations).

US practice is generally risk-based rather than prescriptive volume limits for non-conductive containers. Standard HDPE containers are commonly used when the overall system is properly grounded or when static-dissipative designs are selected following a hazard assessment per NFPA 77.

Key Takeaway for US Labs: Container selection should be part of a documented hazard assessment that incorporates RCRA, OSHA, and applicable NFPA standards. Consult your Chemical Hygiene Plan and EHS team.

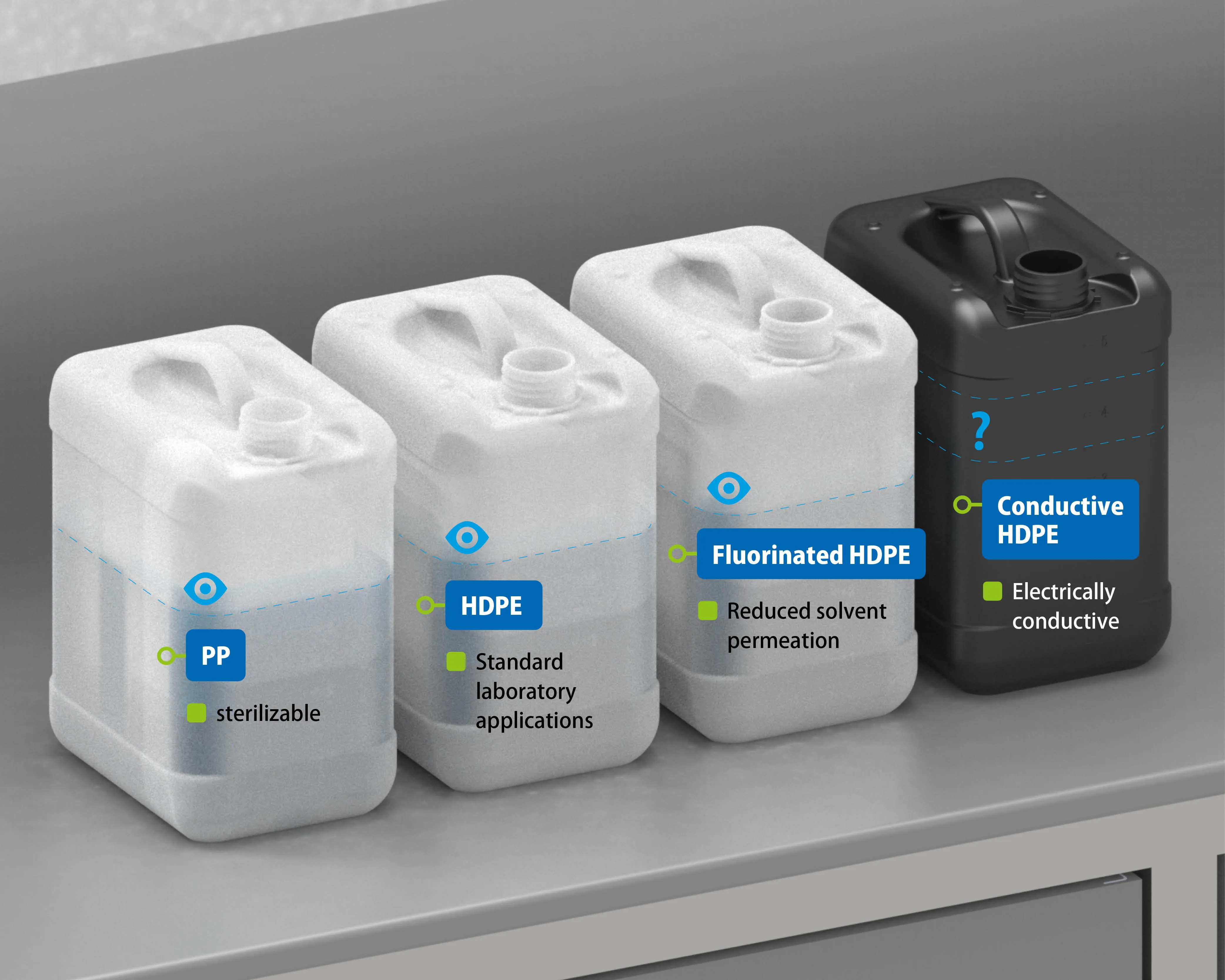

4. Select the Appropriate Container Material

High-density polyethylene (HDPE) is the most widely used material for HPLC waste collection due to its broad compatibility with typical reverse-phase solvents. Always confirm compatibility with your specific waste mixture using current chemical resistance charts.

Fluorinated HDPE provides enhanced barrier properties that reduce permeation, odor migration, and VOC loss — particularly beneficial when containers remain in service for extended periods.

Conductive or static-dissipative containers (or standard HDPE with verified grounding/bonding) should be evaluated when a NFPA 77 risk assessment indicates that static accumulation could present a concern, especially with larger volumes or during transfers.

Key Takeaway for US Labs: Choose material based on chemical compatibility, permeation control needs, and static electricity management in accordance with NFPA 77 guidance.

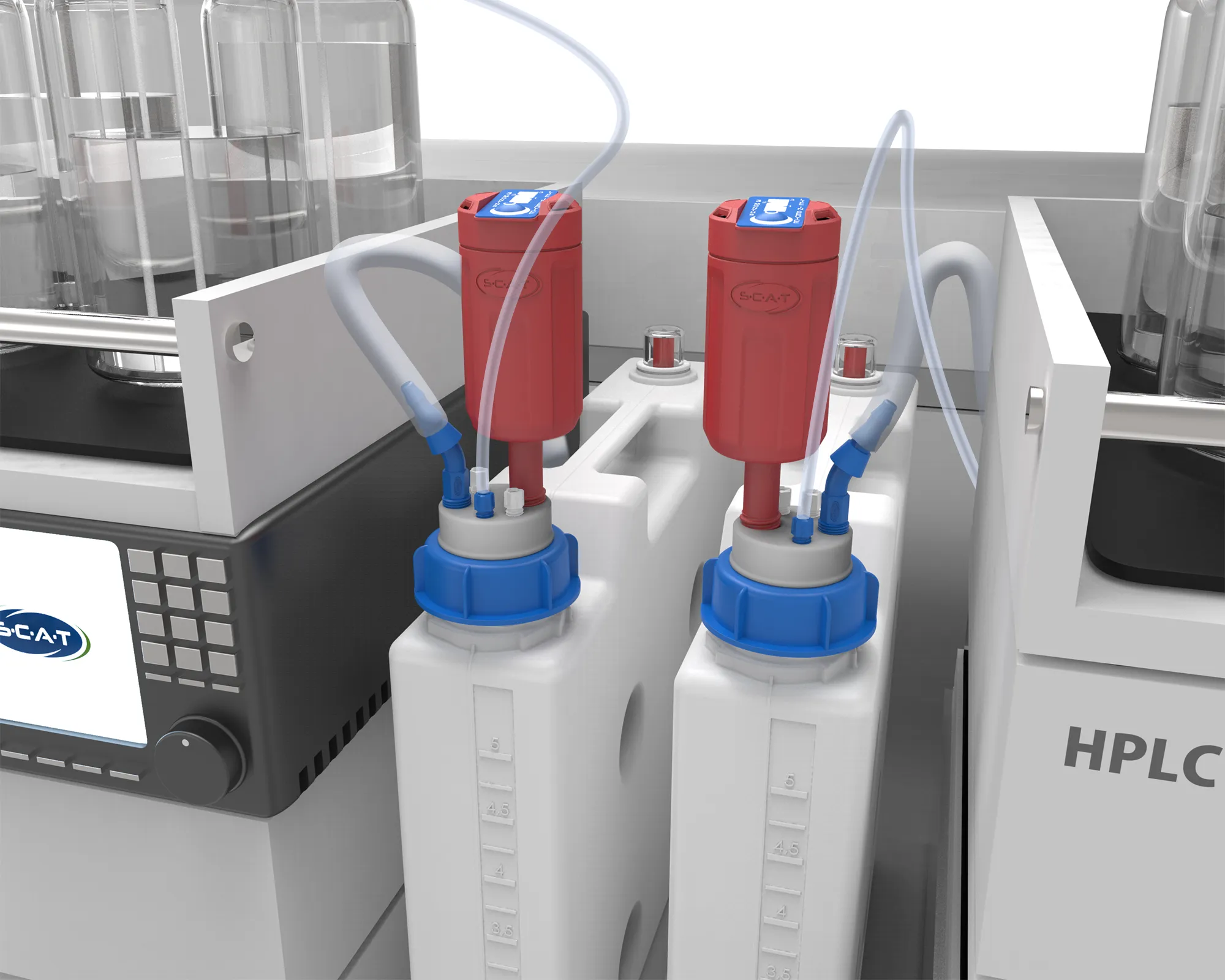

5. Determine Suitable Volume and Geometry

While smaller containers are appropriate for low-volume applications, 5-gallon (~19 L) carboys or safety cans are among the most practical and commonly used sizes in US HPLC laboratories. They offer a favorable balance between collection capacity, change frequency, handling weight, and storage considerations within flammable liquid limits.

Container geometry affects both stability and available footprint. Narrow designs save space but may require additional support when fitted with caps, filters, and multiple tubing lines. Wider designs generally provide better stability for floor placement.

Secondary containment (tray or basin) is strongly recommended and frequently required by institutional policy. The containment should be sized to hold at least 10% of the total volume stored or the capacity of the largest container, whichever is greater.

Key Takeaway for US Labs: Five-gallon containers are a frequent standard in US labs. Verify that the selected size and shape fit your physical space and handling capabilities.

6. Address Handling, Ergonomics, and Internal Transport

A full 5-gallon container of solvent waste typically weighs 35–45 lbs or more, depending on the specific gravity of the mixture. Consider lift height, transport distance, and whether carts or two-person procedures will be used. Systems with quick-disconnect fittings on the cap significantly reduce spill risk and exposure during container changes compared with traditional threaded connections.

Clear visual level indication and stable bases improve daily usability. Ensure procedures align with OSHA guidelines for safe lifting and material handling.

Key Takeaway for US Labs: Larger containers improve efficiency only when the full workflow — including safe handling and transport — remains practical and low-risk.

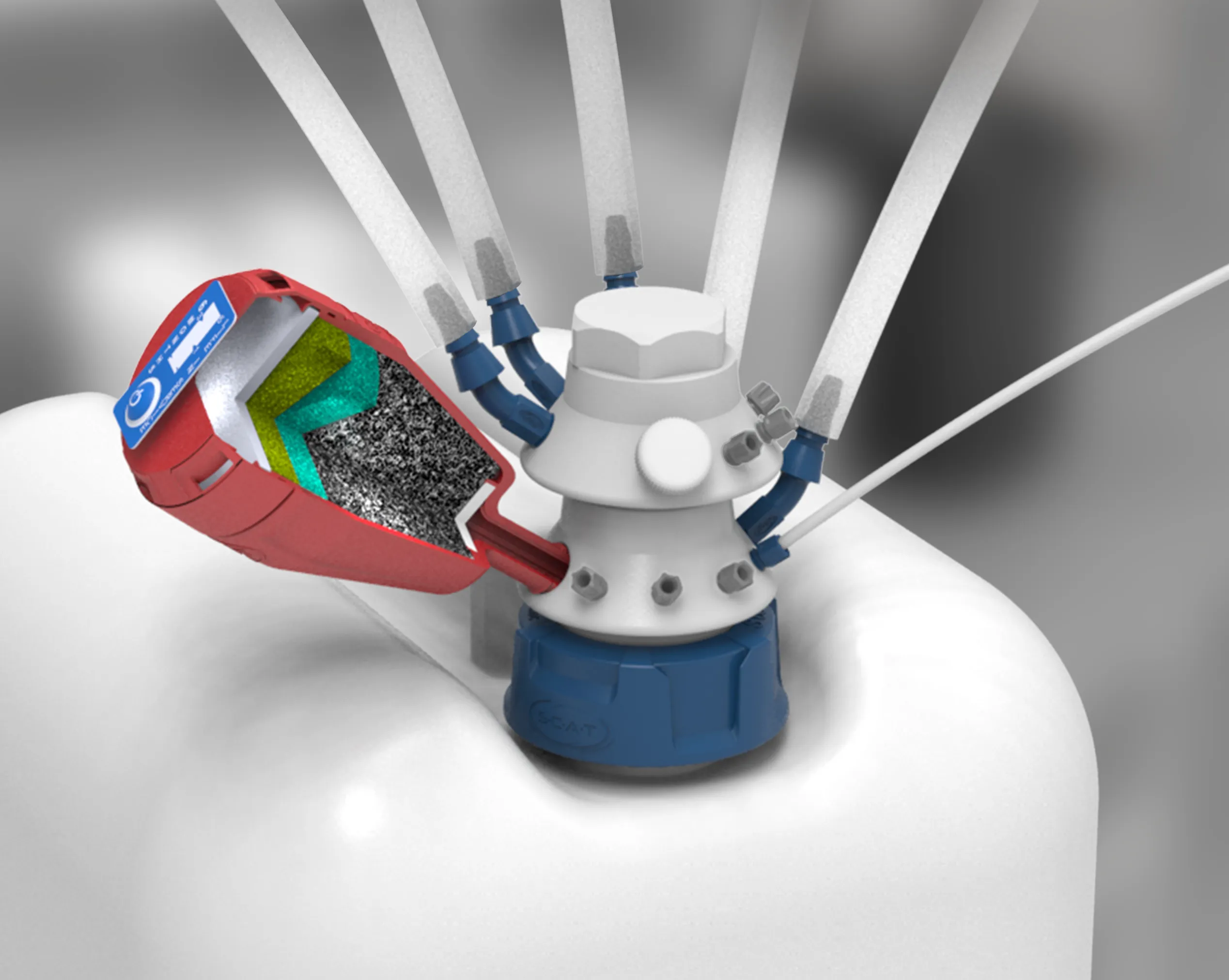

7. Configure the Safety Cap and Tubing Connections

The cap is a central element of any closed collection system. It must securely accept common US HPLC tubing sizes (typically 1/8" and 1/4" OD), provide controlled venting through an activated carbon filter to capture vapors, and maintain a closed condition when waste is not being added.

Multi-port designs that accommodate both current and future connections, with plugs for unused ports, offer flexibility. Quick-disconnect fittings (featured on several US systems) enable rapid, low-exposure container swaps. Thread configurations common in the US differ from European sawtooth designs; specify accordingly (e.g., 83 mm buttress-style or equivalent).

Key Takeaway for US Labs: Select a cap system matched to your tubing diameters, vapor control requirements, and need for future expansion. SCAT modular Safety Waste Caps and comparable US-configured systems can meet these needs when properly specified.

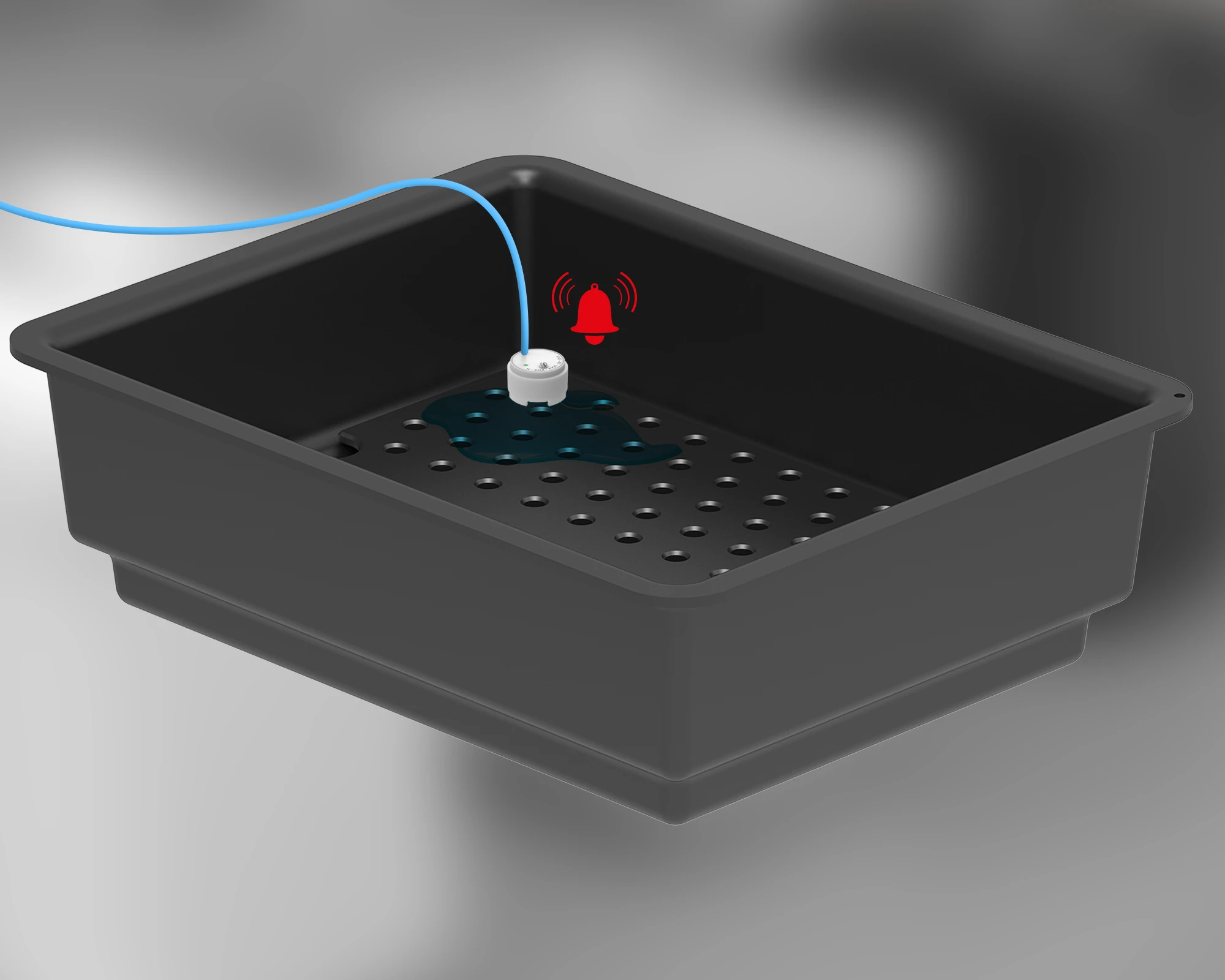

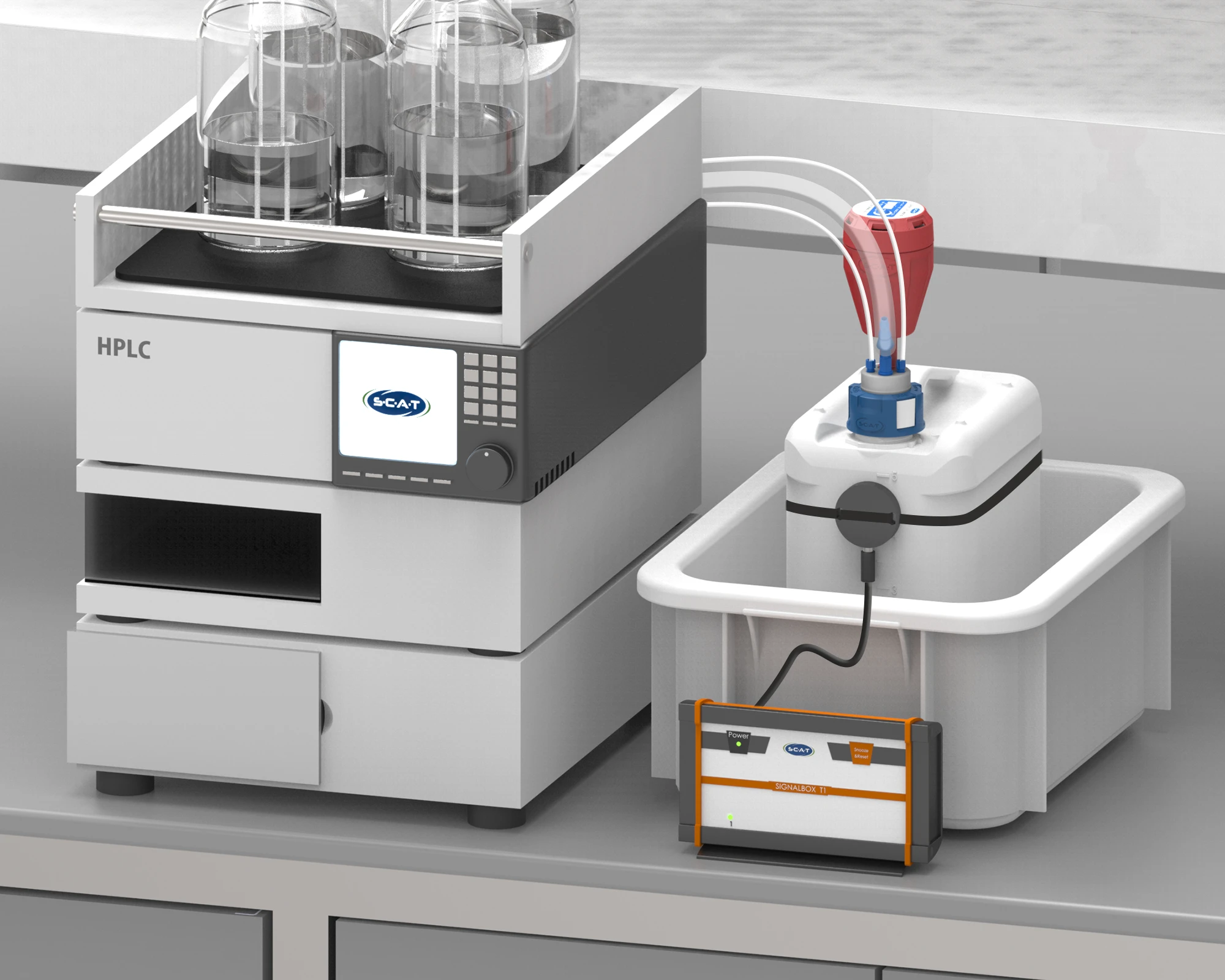

8. Implement Level Monitoring and Secondary Containment

Preventing overflow protects HPLC instruments from back-pressure and avoids environmental releases. Translucent HDPE allows straightforward visual checks. For concealed locations or higher-risk applications, external capacitive sensors with local or remote alarms provide additional protection.

Robust secondary containment is essential. Some facilities add leak detection within the containment tray. Electronic monitoring systems with signal boxes can support 24/7 or unattended operation.

Key Takeaway for US Labs: Combine appropriate level monitoring with reliable secondary containment to detect problems before overflow or backflow occurs.

9. Address DOT Requirements for Off-Site Transport

If the collection container itself will be used as the primary packaging for off-site transportation, it must meet applicable DOT/UN specification packaging standards and carry proper markings and labels. In many laboratories, the collection container remains on-site and the licensed hauler repacks the waste into approved shipping containers (lab pack). Confirm exact requirements with your transporter and EHS team.

Key Takeaway for US Labs: DOT compliance is required only when the container serves as shipping packaging. Coordinate requirements with your permitted hauler.

Conclusion

Selecting an HPLC solvent waste container for US laboratory use requires balancing chemical compatibility, closed-system design, vapor control, static electricity management (NFPA 77), RCRA accumulation rules, and practical handling considerations. A well-configured system — commonly based on a 5-gallon HDPE carboy or safety can with a multi-port cap and carbon filter — helps reduce exposure, supports regulatory compliance, and improves daily laboratory operations.

SCAT Americas offers modular Safety Waste Caps, containers, exhaust filters, and related accessories designed to support safety and environmental compliance in US laboratory environments. Whether you are standardizing across multiple HPLC systems or upgrading an existing setup, a systematic evaluation helps create safer and more efficient waste management.

Need assistance configuring a compliant system for your laboratory?
