Safety Cap I, GL/S40

Name: Safety Cap I, GL/S40
Brand: SCAT
SKU: 307100
Price: 143.55 USD
Availability: InStock

SCAT

US$143.55*

Content: 1

Information on prices, delivery- and payment-terms

Product number: 307100

Delivery Time: 7-10 days

We make your Lab a safer Place!

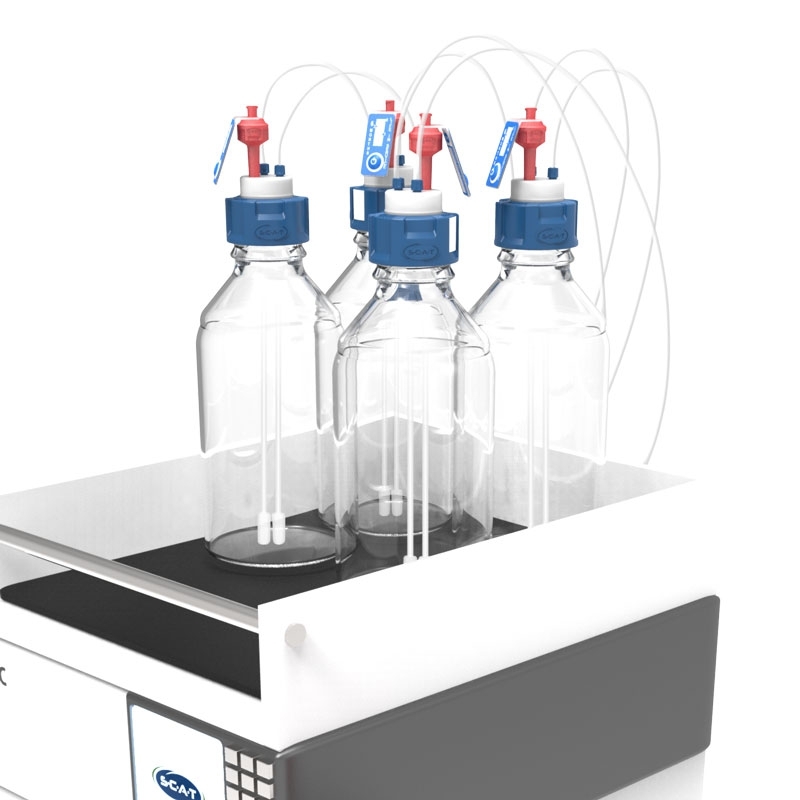

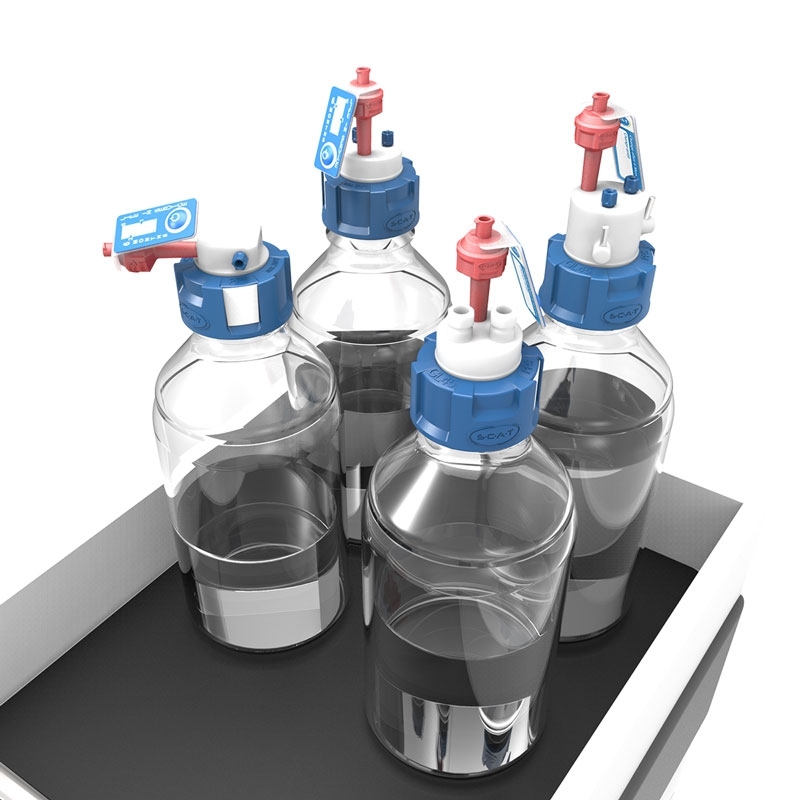

The SCAT Safety Cap I, GL/S40 is a hermetically sealing safety cap for safe HPLC solvent supply on laboratory bottles with GL/S40 thread. 1 capillary port enables clean routing of solvent tubing directly to the HPLC system. The installed air valve opens under vacuum and provides controlled, filtered air intake into the bottle. This reduces solvent vapors, improves occupational safety and optimizes laboratory processes in analytics, chemistry and pharma.

Product information "Safety Cap I, GL/S40"

Safety Cap I, GL/S40

- 1 x air valve, UNF 1/4“ 28G

- 1 x change indicator

- 1 x PFA fitting 1.6 mm OD, UNF 1/4“ 28G

- 1 x PFA fitting 2.3 mm OD, UNF 1/4“ 28G

- 1 x PFA fitting 3.2 mm OD, UNF 1/4“ 28G

Specifications

Air valve:	1
Main material:	PTFE
No. of capillary connections:	1
Thread size:	GL/S40

Details

The SCAT Safety Cap I with GL/S40 thread is a safety cap for HPLC solvent supply from laboratory bottles. With a capillary connection, this cap type is suitable for supply tasks where a single solvent line is routed directly to the HPLC system. Typical areas of use are laboratory workstations in analytics, chemistry, pharma and research, where organic solvents or HPLC eluents are supplied from laboratory bottles. The Safety Cap I with a capillary connection covers applications where a single solvent channel is sufficient. For supply tasks with multiple capillary connections, the SCAT Safety Cap family offers further cap types. The Safety Cap I is screwed on to laboratory bottles with GL/S40 thread. The delivery includes three PFA fittings with outer diameters of 1.6 mm, 2.3 mm and 3.2 mm, all for the UNF-1/4"-28G connection. The ventilation valve opens under negative pressure, allows filtered air to flow in and limits uncontrolled vapour release. In this way, the Cap I contributes to reducing exposure. The change indicator documents the replacement date of the ventilation valve and supports plannable maintenance intervals in laboratory operation. For laboratory bottles with GL/S40 thread, the Safety Cap I enables low-emission, closed media supply.

Air Valves

Air valve, UNF 1/4", PU=1

Product no.: 317010

Air valve, UNF 1/4" 28G - service life 6 months - quantity = 1 piece

US$39.76*

Air valve, UNF 1/4", PU=8

Product no.: 397008

Air valve, UNF1/4" 28G - service life 6 months - quantity = 8 pieces

US$301.79*

Air valve, UNF 1/4", PU=10

Product no.: 397010

Air valve, UNF1/4" 28G - service life 6 months - quantity = 10 pieces

US$357.67*

Air valve, UNF 1/4", PU=50

Product no.: 397050

Air valve, UNF1/4" 28G - service life 6 months - quantity = 50 pieces

US$1,595.17*

Air valve, UNF 1/4", PU=100

Product no.: 397100

Air valve, UNF1/4" 28G - service life 6 months - quantity = 100 pieces

US$2,233.87*

Fittings

Fitting with ferrule, 1.6 mm OD, green

Product no.: 107061

PFA fitting with integrated ferrule, 1.6 mm OD, quantity = 5 pieces, green

US$31.78*

Fitting with ferrule, 3.2 mm OD, blue

Product no.: 107063

PFA fitting with integrated ferrule, 3.2 mm OD, quantity = 5 pieces, blue

US$31.78*

Fitting with ferrule, 2.3 mm OD, purple

Product no.: 107059

PFA fitting with integrated ferrule, 2.3 mm OD, quantity = 5 pieces, violet

US$31.78*

Blind plug, PFA, colourless, PU=5

Product no.: 160502

Blind plug, PFA, for capillary connector, UNF1/4" 28G, colorless, quantity =5 pieces

US$31.78*

Capillaries

PTFE capillary 1.6 mm OD (1.0 mm ID)

Product no.: 461053

PTFE Capillary 1.6 mm OD (1.0 mm ID), length = 3 m

US$26.99*

PTFE capillary 2.3 mm OD (1.7 mm ID)

Product no.: 461054

PTFE Capillary 2.3 mm OD (1.7 mm ID), length = 3 m

US$26.99*

PTFE capillary 3.2 mm OD (1.6 mm ID)

Product no.: 461055

PTFE Capillary 3.2 mm OD (1.6 mm ID), length = 3 m

US$26.99*

Connector

Capillary connector, PTFE

Product no.: 160145

Capillary connector, PTFE, 2x 1.6/2.3/3.2 mm OD

US$55.73*

Quick-Lock Connector (f), incl. fitting

Product no.: 360179

Quick-Lock Connector (f), PP, nondrip, seal of EPDM, incl. 1x PFA-fitting 1.6/2.3/3.2 mm ID

US$55.73*

Quick-Lock Connector (m), incl. ferrule

Product no.: 360180

Quick-Lock Connector (m), PP, nondrip, seal of EPDM, incl. 1x PFA-ferrule 1.6/2.3/3.2 mm ID

US$55.73*

Quick-Lock Connector (m), incl. fitting

Product no.: 360190

Quick-Lock Connector (m), PP, nondrip, seal of EPDM, incl. 1x PFA-fitting 1.6/2.3/3.2 mm ID

US$55.73*

2-in-1 connector, 3x 3.2 mm OD

Product no.: 160134

2-in-1 connector, for capillary, 3x 3.2 mm OD, PTFE/PFA

US$71.69*

Quick-Lock Connector Set I

Product no.: 360189

Quick-Lock Connector Set I: for capillaries (1.6/2.3/3.2 mm OD), consist of: 360179 + 360190

US$111.61*

Quick-Lock Connector Set II

Product no.: 360183

Quick-Lock Connector Set II, consists of: Quick-Lock Connector (m), PP, nondrip, seal of EPDM, incl. 1x PFA-ferrule 1.6/2.3/3.2 mm ID, to be screwed into standard connector Quick-Lock Connector (f), PP, nondrip, seal of EPDM, incl. 1x PFA-fitting 1.6/2.3/3.2 mm ID consist of: 360180 + 360179

US$111.61*
