Safety Cap I, GLS80

Skip image gallery

US$158.08*

Content: 1
Information on prices, delivery- and payment-terms
Product number: 107030

Delivery Time: 7-10 days

We make your Lab a safer Place!

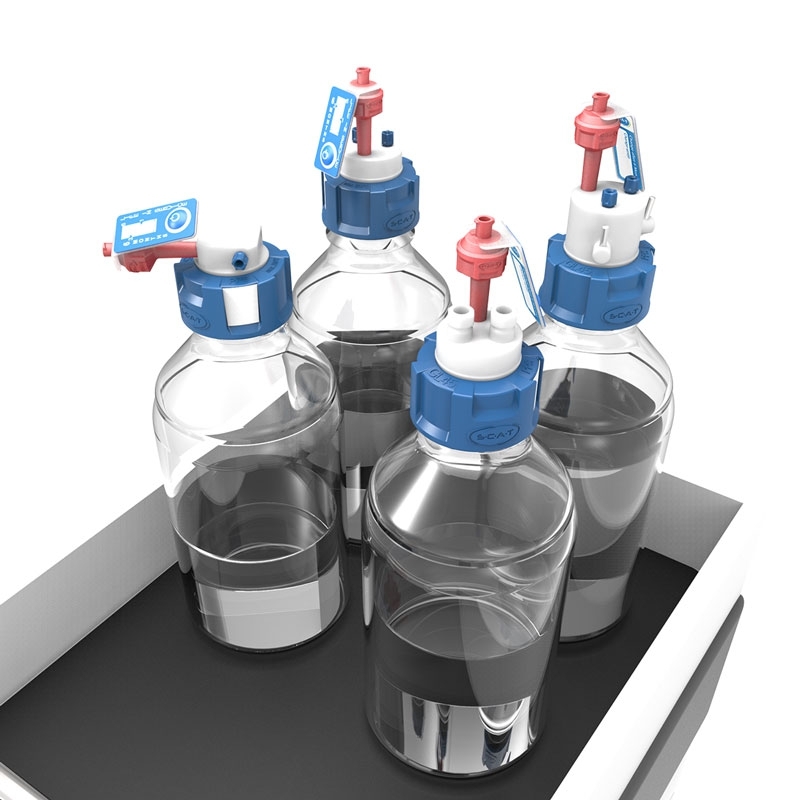

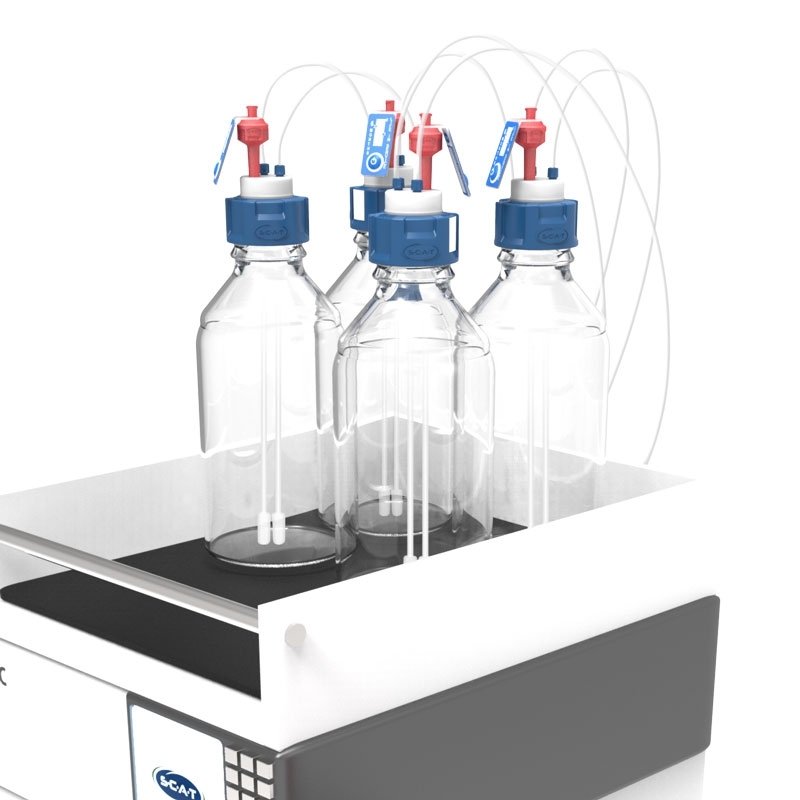

The SCAT Safety Cap I, GLS80 is a hermetically sealing safety cap for safe HPLC solvent supply on laboratory bottles with GLS80 thread. 1 capillary port enables clean routing of solvent tubing directly to the HPLC system. The installed air valve opens under vacuum and provides controlled, filtered air intake into the bottle. This reduces solvent vapors, improves occupational safety and optimizes laboratory processes in analytics, chemistry and pharma.

Product information "Safety Cap I, GLS80"

Safety Cap I, GLS80

- 1 x air valve, UNF 1/4“ 28G

- 1 x change indicator

- 1 x PFA fitting 1.6 mm OD, UNF 1/4“ 28G

- 1 x PFA fitting 2.3 mm OD, UNF 1/4“ 28G

- 1 x PFA fitting 3.2 mm OD, UNF 1/4“ 28G

Specifications
Air valve: 1
Main material: PTFE
No. of capillary connections: 1
Thread size: GLS80
Details
The SCAT Safety Cap I is a safety cap for HPLC solvent supply and fits laboratory bottles with GLS80 thread. The single capillary connection directs the solvent line directly to the HPLC system. The Cap I is used in analytics, chemistry and pharmaceuticals where a single solvent supply line from the storage bottle is required. Within the SCAT Safety Cap family, type I is designed for supply systems with one capillary connection. The GLS80 thread enables direct combination with laboratory bottles of this format. For applications with multiple capillary connections, caps with a higher number of connections are available. The Safety Cap I is screwed onto the laboratory bottle and forms a closed solvent supply system with it. The ventilation valve opens under negative pressure and allows filtered air to flow in; this limits uncontrolled vapour release from the interior of the bottle. Three PFA fittings with 1.6 mm, 2.3 mm and 3.2 mm outside diameter (each UNF 1/4" 28G) are included in the scope of delivery and enable connection with common capillary diameters. The change indicator documents the replacement date of the ventilation valve and facilitates plannable maintenance intervals. With a single capillary connection, the Cap I is simple to install and supports organised supply paths in the laboratory.
Skip product gallery

Bottles

DURAN lab bottle, GLS80, 500 ml, clear
DURAN lab bottle, GLS80, 500 ml, clear
Product no.: 501150
Laboratory bottle DURAN, GLS80, 500 ml - clear glass & round - with wide neck opening - with cap and pouring ring

US$42.95*
DURAN lab bottle, GLS80, 1000 ml, clear
DURAN lab bottle, GLS80, 1000 ml, clear
Product no.: 501151
Laboratory bottle DURAN, GLS80, 1000 ml - clear glass & round - with wide neck opening - with cap and pouring ring

US$66.90*
DURAN lab bottle, GLS80, 2000 ml, clear
DURAN lab bottle, GLS80, 2000 ml, clear
Product no.: 501152
Laboratory bottle DURAN, GLS80, 2000 ml - clear glass & round - with wide neck opening - with cap and pouring ring

US$127.58*
DURAN lab bottle, GLS80, 500 ml, brown
DURAN lab bottle, GLS80, 500 ml, brown
Product no.: 501156
Laboratory bottle DURAN, GLS80, 500 ml - brown glass  & round - with wide neck opening - with cap and pouring ring

US$127.58*
DURAN lab bottle, GLS80, 1000 ml, brown
DURAN lab bottle, GLS80, 1000 ml, brown
Product no.: 501157
Laboratory bottle DURAN, GLS80, 1000 ml - brown glass & round - with wide neck opening - cap and pouring ring

US$143.55*
DURAN lab bottle, GLS80, 2000 ml, brown
DURAN lab bottle, GLS80, 2000 ml, brown
Product no.: 501158
Laboratory bottle DURAN, GLS80, 2000 ml - brown glass & round - with wide neck opening - with cap and pouring ring

US$221.95*
DURAN lab bottle, GLS80, 5000 ml, clear
DURAN lab bottle, GLS80, 5000 ml, clear
Product no.: 501155
Laboratory bottle DURAN, GLS80, 5000 ml - clear glass & round - with wide neck opening - with cap and pouring ring

US$509.37*
Skip product gallery

Air Valves

Air valve, UNF 1/4", PU=1
Air valve, UNF 1/4", PU=1
Product no.: 317010
Air valve, UNF 1/4" 28G - service life 6 months - quantity = 1 piece

US$39.76*
Air valve, UNF 1/4", PU=8
Air valve, UNF 1/4", PU=8
Product no.: 397008
Air valve, UNF1/4" 28G - service life 6 months - quantity = 8 pieces

US$301.79*
Air valve, UNF 1/4", PU=10
Air valve, UNF 1/4", PU=10
Product no.: 397010
Air valve, UNF1/4" 28G - service life 6 months - quantity = 10 pieces

US$357.67*
Air valve, UNF 1/4", PU=50
Air valve, UNF 1/4", PU=50
Product no.: 397050
Air valve, UNF1/4" 28G - service life 6 months - quantity = 50 pieces

US$1,595.17*
Air valve, UNF 1/4", PU=100
Air valve, UNF 1/4", PU=100
Product no.: 397100
Air valve, UNF1/4" 28G - service life 6 months - quantity = 100 pieces

US$2,233.87*
Skip product gallery

Fittings

Fitting with ferrule, 1.6 mm OD, green
Fitting with ferrule, 1.6 mm OD, green
Product no.: 107061
PFA fitting with integrated ferrule, 1.6 mm OD, quantity = 5 pieces, green

US$31.78*
Fitting with ferrule, 3.2 mm OD, blue
Fitting with ferrule, 3.2 mm OD, blue
Product no.: 107063
PFA fitting with integrated ferrule, 3.2 mm OD, quantity = 5 pieces, blue

US$31.78*
Fitting with ferrule, 2.3 mm OD, purple
Fitting with ferrule, 2.3 mm OD, purple
Product no.: 107059
PFA fitting with integrated ferrule, 2.3 mm OD, quantity = 5 pieces, violet

US$31.78*
Blind plug, PFA, colourless, PU=5
Blind plug, PFA, colourless, PU=5
Product no.: 160502
Blind plug, PFA, for capillary connector, UNF1/4" 28G, colorless, quantity =5 pieces

US$31.78*
Skip product gallery

Capillaries

PTFE capillary 1.6 mm OD (1.0 mm ID)
PTFE capillary 1.6 mm OD (1.0 mm ID)
Product no.: 461053
PTFE Capillary 1.6 mm OD (1.0 mm ID), length = 3 m

US$26.99*
PTFE capillary 2.3 mm OD (1.7 mm ID)
PTFE capillary 2.3 mm OD (1.7 mm ID)
Product no.: 461054
PTFE Capillary 2.3 mm OD (1.7 mm ID), length = 3 m

US$26.99*
PTFE capillary 3.2 mm OD (1.6 mm ID)
PTFE capillary 3.2 mm OD (1.6 mm ID)
Product no.: 461055
PTFE Capillary 3.2 mm OD (1.6 mm ID), length = 3 m

US$26.99*
Skip product gallery

Connector

Capillary connector, PTFE
Capillary connector, PTFE
Product no.: 160145
Capillary connector, PTFE, 2x 1.6/2.3/3.2 mm OD

US$55.73*
Quick-Lock Connector (f), incl. fitting
Quick-Lock Connector (f), incl. fitting
Product no.: 360179
Quick-Lock Connector (f), PP, nondrip, seal of EPDM, incl. 1x PFA-fitting 1.6/2.3/3.2 mm ID

US$55.73*
Quick-Lock Connector (m), incl. ferrule
Quick-Lock Connector (m), incl. ferrule
Product no.: 360180
Quick-Lock Connector (m),  PP, nondrip, seal of EPDM, incl. 1x PFA-ferrule 1.6/2.3/3.2 mm ID

US$55.73*
Quick-Lock Connector (m), incl. fitting
Quick-Lock Connector (m), incl. fitting
Product no.: 360190
Quick-Lock Connector (m), PP, nondrip, seal of EPDM, incl. 1x PFA-fitting 1.6/2.3/3.2 mm ID

US$55.73*
2-in-1 connector, 3x 3.2 mm OD
2-in-1 connector, 3x 3.2 mm OD
Product no.: 160134
2-in-1 connector, for capillary, 3x 3.2 mm OD, PTFE/PFA

US$71.69*
Quick-Lock Connector Set I
Quick-Lock Connector Set I
Product no.: 360189
Quick-Lock Connector Set I: for capillaries (1.6/2.3/3.2 mm OD), consist of: 360179 + 360190

US$111.61*
Quick-Lock Connector Set II
Quick-Lock Connector Set II
Product no.: 360183
Quick-Lock Connector Set II, consists of: Quick-Lock Connector (m),  PP, nondrip, seal of EPDM, incl. 1x PFA-ferrule 1.6/2.3/3.2 mm ID, to be screwed into standard connector Quick-Lock Connector (f), PP, nondrip, seal of EPDM, incl. 1x PFA-fitting 1.6/2.3/3.2 mm ID consist of: 360180 + 360179

US$111.61*
Skip product gallery

Accessories

measuring template for capillaries&tubes
measuring template for capillaries&tubes
Product no.: 199936
SCAT measuring template for capillaries & tubes

US$0.00*
Installation wrench, for fitting
Installation wrench, for fitting
Product no.: 160530
Installation wrench, tool, POM, green, hexagonal, for PFA- and PE-fittings

US$31.78*
Capillary cutter incl. replacement blade
Capillary cutter incl. replacement blade
Product no.: 900103
Capillary cutter incl. spare blade

US$55.73*
Bottle tag, GL45, multipack, pack of 16
Bottle tag, GL45, multipack, pack of 16
Product no.: 501154
Bottle Tag, GL45, multipack, consists of 2x blue, 2x purple, 2x green, 2x red, 2x orange, 2x yellow, 2x black, 2x white, quantity = 16 pieces

US$71.69*
Suction filter for solvents, 20 µm
Suction filter for solvents, 20 µm
Product no.: 300021
HPLC suction filters for solvents, UHMW-PE, OD 1/8" (3.2 mm), pore size 20µm, quantity 5 pieces

US$79.68*
Suction filter for solvents, 5 µm
Suction filter for solvents, 5 µm
Product no.: 300022
HPLC suction filters for solvents, PFA/PTFE, OD 1/8" (3.2 mm), pore size 5 µm, quantity 5 pieces

US$111.61*
