Safety Cap II, 38-430 for Wheaton

Name: Safety Cap II, 38-430 for Wheaton
Brand: SCAT
SKU: 107637
Price: 159.52 USD
Availability: InStock

SCAT

US$159.52*

Content: 1

Information on prices, delivery- and payment-terms

Product number: 107637

Delivery Time: 7-10 days

We make your Lab a safer Place!

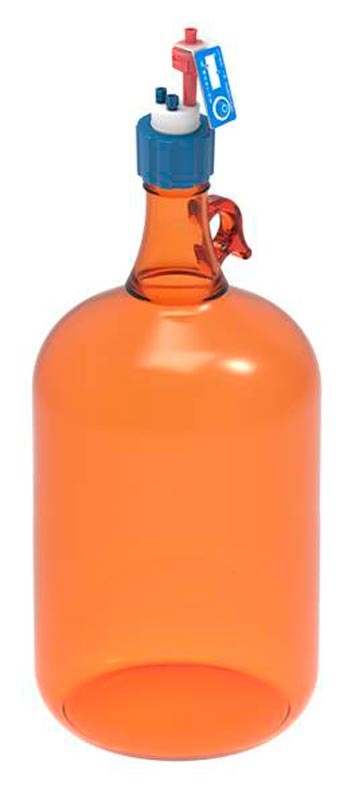

The SCAT Safety Cap II, 38-430 for Wheaton is a hermetically sealing safety cap for safe HPLC solvent supply on laboratory bottles with 38-430 for Wheaton thread. 2 capillary ports enable clean routing of solvent tubing directly to the HPLC system. The installed air valve opens under vacuum and provides controlled, filtered air intake into the bottle. This reduces solvent vapors, improves occupational safety and optimizes laboratory processes in analytics, chemistry and pharma.

Product information "Safety Cap II, 38-430 for Wheaton"

Safety Cap II, 38-430 for Wheaton bottles

- 1 x air valve, UNF 1/4“ 28G

- 1 x change indicator

- 2 x PFA fitting 1.6 mm OD, UNF 1/4“ 28G

- 2 x PFA fitting 2.3 mm OD, UNF 1/4“ 28G

- 2 x PFA fitting 3.2 mm OD, UNF 1/4“ 28G

- 1 x PFA blind plug, UNF 1/4“ 28G

Specifications

Air valve:	1
Main material:	PTFE
No. of capillary connections:	2
Thread size:	38-430

Details

The SCAT Safety Cap II with 38-430 thread is a supply cap for Wheaton laboratory bottles in HPLC solvent supply. Two capillary connections lead solvent lines directly to the HPLC system; the 38-430 thread restricts bottle selection to Wheaton containers with this external thread. In the Safety Cap family, Cap II stands for two capillary connections. In analytics, chemistry and pharmaceuticals, laboratories use Wheaton bottles as storage containers for eluent and solvent supply. The Safety Cap II helps reduce exposure to solvent vapours and supports a low-emission laboratory environment. The delivery includes six PFA fittings in three external diameters (1.6 mm, 2.3 mm and 3.2 mm) as well as one PFA blind plug; all use the UNF 1/4" 28G thread. The blind plug closes an unused connection. The vent valve opens under negative pressure and allows filtered air to flow in; it limits uncontrolled vapour release during solvent withdrawal. The Safety Cap is screwed onto the bottle thread. The change indicator documents the replacement date of the vent valve and facilitates plannable maintenance intervals. All supplied fittings and the blind plug are made of PFA. The 38-430 thread requires a Wheaton bottle; thread compatibility must be checked before use.

Air Valves

Air valve, UNF 1/4", PU=1

Product no.: 317010

Air valve, UNF 1/4" 28G - service life 6 months - quantity = 1 piece

US$39.76*

Air valve, UNF 1/4", PU=8

Product no.: 397008

Air valve, UNF1/4" 28G - service life 6 months - quantity = 8 pieces

US$301.79*

Air valve, UNF 1/4", PU=10

Product no.: 397010

Air valve, UNF1/4" 28G - service life 6 months - quantity = 10 pieces

US$357.67*

Air valve, UNF 1/4", PU=50

Product no.: 397050

Air valve, UNF1/4" 28G - service life 6 months - quantity = 50 pieces

US$1,595.17*

Air valve, UNF 1/4", PU=100

Product no.: 397100

Air valve, UNF1/4" 28G - service life 6 months - quantity = 100 pieces

US$2,233.87*

Fittings

Fitting with ferrule, 1.6 mm OD, green

Product no.: 107061

PFA fitting with integrated ferrule, 1.6 mm OD, quantity = 5 pieces, green

US$31.78*

Fitting with ferrule, 3.2 mm OD, blue

Product no.: 107063

PFA fitting with integrated ferrule, 3.2 mm OD, quantity = 5 pieces, blue

US$31.78*

Fitting with ferrule, 2.3 mm OD, purple

Product no.: 107059

PFA fitting with integrated ferrule, 2.3 mm OD, quantity = 5 pieces, violet

US$31.78*

Blind plug, PFA, colourless, PU=5

Product no.: 160502

Blind plug, PFA, for capillary connector, UNF1/4" 28G, colorless, quantity =5 pieces

US$31.78*

Capillaries

PTFE capillary 1.6 mm OD (1.0 mm ID)

Product no.: 461053

PTFE Capillary 1.6 mm OD (1.0 mm ID), length = 3 m

US$26.99*

PTFE capillary 2.3 mm OD (1.7 mm ID)

Product no.: 461054

PTFE Capillary 2.3 mm OD (1.7 mm ID), length = 3 m

US$26.99*

PTFE capillary 3.2 mm OD (1.6 mm ID)

Product no.: 461055

PTFE Capillary 3.2 mm OD (1.6 mm ID), length = 3 m

US$26.99*

Connector

Capillary connector, PTFE

Product no.: 160145

Capillary connector, PTFE, 2x 1.6/2.3/3.2 mm OD

US$55.73*

Quick-Lock Connector (f), incl. fitting

Product no.: 360179

Quick-Lock Connector (f), PP, nondrip, seal of EPDM, incl. 1x PFA-fitting 1.6/2.3/3.2 mm ID

US$55.73*

Quick-Lock Connector (m), incl. ferrule

Product no.: 360180

Quick-Lock Connector (m), PP, nondrip, seal of EPDM, incl. 1x PFA-ferrule 1.6/2.3/3.2 mm ID

US$55.73*

Quick-Lock Connector (m), incl. fitting

Product no.: 360190

Quick-Lock Connector (m), PP, nondrip, seal of EPDM, incl. 1x PFA-fitting 1.6/2.3/3.2 mm ID

US$55.73*

2-in-1 connector, 3x 3.2 mm OD

Product no.: 160134

2-in-1 connector, for capillary, 3x 3.2 mm OD, PTFE/PFA

US$71.69*

Quick-Lock Connector Set I

Product no.: 360189

Quick-Lock Connector Set I: for capillaries (1.6/2.3/3.2 mm OD), consist of: 360179 + 360190

US$111.61*

Quick-Lock Connector Set II

Product no.: 360183

Quick-Lock Connector Set II, consists of: Quick-Lock Connector (m), PP, nondrip, seal of EPDM, incl. 1x PFA-ferrule 1.6/2.3/3.2 mm ID, to be screwed into standard connector Quick-Lock Connector (f), PP, nondrip, seal of EPDM, incl. 1x PFA-fitting 1.6/2.3/3.2 mm ID consist of: 360180 + 360179

US$111.61*
