Safety Cap II, GL/S40

Name: Safety Cap II, GL/S40
Brand: SCAT
SKU: 307101
Price: 159.52 USD
Availability: OutOfStock

SCAT

US$159.52*

Content: 1

Information on prices, delivery- and payment-terms

Product number: 307101

We make your Lab a safer Place!

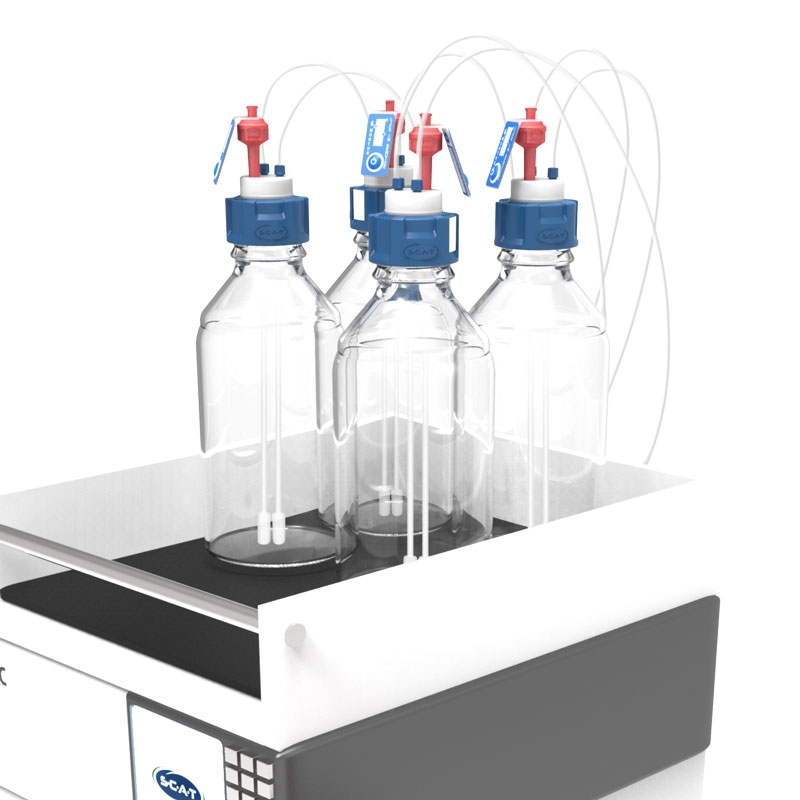

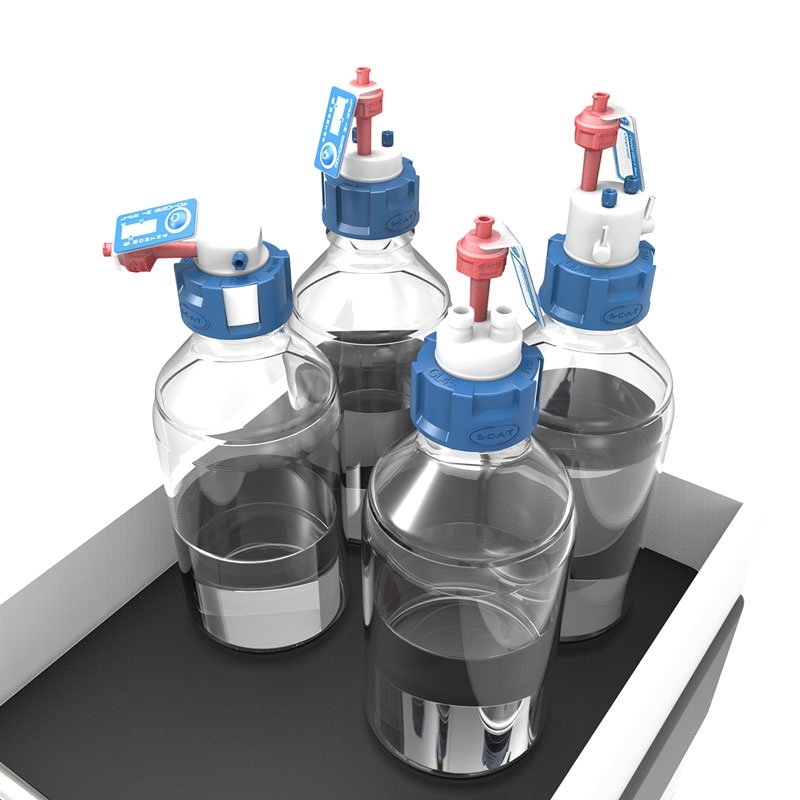

The SCAT Safety Cap II, GL/S40 is a hermetically sealing safety cap for safe HPLC solvent supply on laboratory bottles with GL/S40 thread. 2 capillary ports enable clean routing of solvent tubing directly to the HPLC system. The installed air valve opens under vacuum and provides controlled, filtered air intake into the bottle. This reduces solvent vapors, improves occupational safety and optimizes laboratory processes in analytics, chemistry and pharma.

Product information "Safety Cap II, GL/S40"

Safety Cap II, GL/S40

- 1 x air valve, UNF 1/4“ 28G

- 1 x change indicator

- 2 x PFA fitting 1.6 mm OD, UNF 1/4“ 28G

- 2 x PFA fitting 2.3 mm OD, UNF 1/4“ 28G

- 2 x PFA fitting 3.2 mm OD, UNF 1/4“ 28G

- 1 x PFA blind plug, UNF 1/4“ 28G

Specifications

Air valve:	1
Main material:	PTFE
No. of capillary connections:	2
Thread size:	GL/S40

Details

The SCAT Safety Cap II with GL/S40 thread is a safety cap for HPLC solvent supply on laboratory bottles. With two capillary connections, eluent or solvent lines can be led directly to an HPLC system. The application extends to HPLC laboratories in analytics, chemistry and pharmaceuticals. Within the Safety Cap family, the Cap II type is designed for setups with two simultaneous line connections. If only one connection is required, the supplied PFA blind plug closes the second capillary connection. For systems with more than two lines, Safety Caps with a higher number of connections are available. The Safety Cap II is screwed onto the GL/S40 thread of the laboratory bottle. The integrated ventilation valve with UNF 1/4" 28G connection opens under negative pressure and allows filtered air to flow into the bottle; this limits uncontrolled vapour release. The supplied PFA fittings in outer diameters of 1.6 mm, 2.3 mm and 3.2 mm enable adaptation to different capillaries and support low-emission solvent supply. The replacement indicator documents the replacement date of the ventilation valve and facilitates plannable maintenance intervals. With two capillary connections in GL/S40 format, this Safety Cap is ready for use in HPLC supply setups as soon as two line connections are required.

Air Valves

Air valve, UNF 1/4", PU=1

Product no.: 317010

Air valve, UNF 1/4" 28G - service life 6 months - quantity = 1 piece

US$39.76*

Air valve, UNF 1/4", PU=8

Product no.: 397008

Air valve, UNF1/4" 28G - service life 6 months - quantity = 8 pieces

US$301.79*

Air valve, UNF 1/4", PU=10

Product no.: 397010

Air valve, UNF1/4" 28G - service life 6 months - quantity = 10 pieces

US$357.67*

Air valve, UNF 1/4", PU=50

Product no.: 397050

Air valve, UNF1/4" 28G - service life 6 months - quantity = 50 pieces

US$1,595.17*

Air valve, UNF 1/4", PU=100

Product no.: 397100

Air valve, UNF1/4" 28G - service life 6 months - quantity = 100 pieces

US$2,233.87*

Fittings

Fitting with ferrule, 1.6 mm OD, green

Product no.: 107061

PFA fitting with integrated ferrule, 1.6 mm OD, quantity = 5 pieces, green

US$31.78*

Fitting with ferrule, 3.2 mm OD, blue

Product no.: 107063

PFA fitting with integrated ferrule, 3.2 mm OD, quantity = 5 pieces, blue

US$31.78*

Fitting with ferrule, 2.3 mm OD, purple

Product no.: 107059

PFA fitting with integrated ferrule, 2.3 mm OD, quantity = 5 pieces, violet

US$31.78*

Blind plug, PFA, colourless, PU=5

Product no.: 160502

Blind plug, PFA, for capillary connector, UNF1/4" 28G, colorless, quantity =5 pieces

US$31.78*

Capillaries

PTFE capillary 1.6 mm OD (1.0 mm ID)

Product no.: 461053

PTFE Capillary 1.6 mm OD (1.0 mm ID), length = 3 m

US$26.99*

PTFE capillary 2.3 mm OD (1.7 mm ID)

Product no.: 461054

PTFE Capillary 2.3 mm OD (1.7 mm ID), length = 3 m

US$26.99*

PTFE capillary 3.2 mm OD (1.6 mm ID)

Product no.: 461055

PTFE Capillary 3.2 mm OD (1.6 mm ID), length = 3 m

US$26.99*

Connector

Capillary connector, PTFE

Product no.: 160145

Capillary connector, PTFE, 2x 1.6/2.3/3.2 mm OD

US$55.73*

Quick-Lock Connector (f), incl. fitting

Product no.: 360179

Quick-Lock Connector (f), PP, nondrip, seal of EPDM, incl. 1x PFA-fitting 1.6/2.3/3.2 mm ID

US$55.73*

Quick-Lock Connector (m), incl. ferrule

Product no.: 360180

Quick-Lock Connector (m), PP, nondrip, seal of EPDM, incl. 1x PFA-ferrule 1.6/2.3/3.2 mm ID

US$55.73*

Quick-Lock Connector (m), incl. fitting

Product no.: 360190

Quick-Lock Connector (m), PP, nondrip, seal of EPDM, incl. 1x PFA-fitting 1.6/2.3/3.2 mm ID

US$55.73*

2-in-1 connector, 3x 3.2 mm OD

Product no.: 160134

2-in-1 connector, for capillary, 3x 3.2 mm OD, PTFE/PFA

US$71.69*

Quick-Lock Connector Set I

Product no.: 360189

Quick-Lock Connector Set I: for capillaries (1.6/2.3/3.2 mm OD), consist of: 360179 + 360190

US$111.61*

Quick-Lock Connector Set II

Product no.: 360183

Quick-Lock Connector Set II, consists of: Quick-Lock Connector (m), PP, nondrip, seal of EPDM, incl. 1x PFA-ferrule 1.6/2.3/3.2 mm ID, to be screwed into standard connector Quick-Lock Connector (f), PP, nondrip, seal of EPDM, incl. 1x PFA-fitting 1.6/2.3/3.2 mm ID consist of: 360180 + 360179

US$111.61*
