Safety Cap II, GL28-430

Name: Safety Cap II, GL28-430
SKU: 307005
Price: 159.52 USD
Availability: OutOfStock

US$159.52*

Content: 1

Information on prices, delivery- and payment-terms

Product number: 307005

We make your Lab a safer Place!

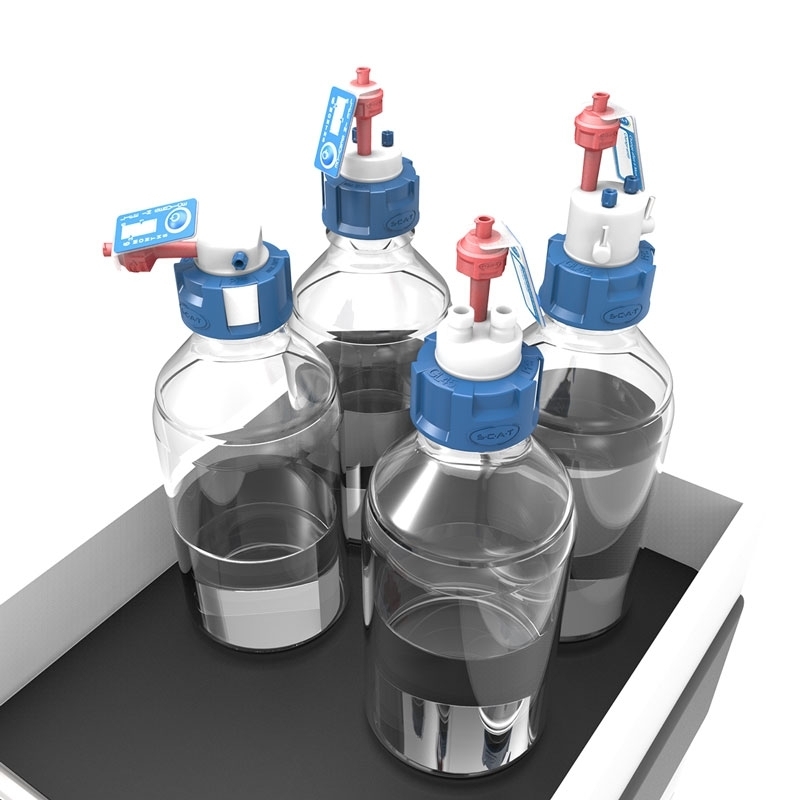

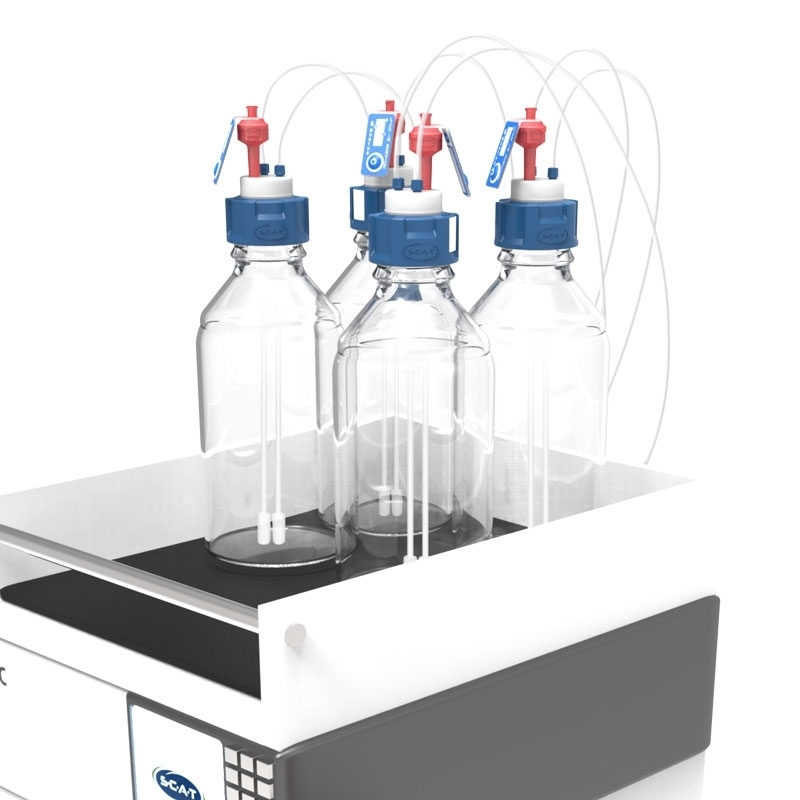

The SCAT Safety Cap II, GL28-430 is a hermetically sealing safety cap for safe HPLC solvent supply on laboratory bottles with GL28-430 thread. 2 capillary ports enable clean routing of solvent tubing directly to the HPLC system. The installed air valve opens under vacuum and provides controlled, filtered air intake into the bottle. This reduces solvent vapors, improves occupational safety and optimizes laboratory processes in analytics, chemistry and pharma.

Product information "Safety Cap II, GL28-430"

Safety Cap II, GL28-430

- 1 x air valve, UNF 1/4“ 28G

- 1 x change indicator

- 2 x PFA fitting 1.6 mm OD, UNF 1/4“ 28G

- 2 x PFA fitting 2.3 mm OD, UNF 1/4“ 28G

- 2 x PFA fitting 3.2 mm OD, UNF 1/4“ 28G

- 1 x PFA blind plug, UNF 1/4“ 28G

Specifications

Air valve:	1
Main material:	PTFE
No. of capillary connections:	2
Thread size:	GL28-430

Details

The Safety Cap II with GL28-430 thread is a safety cap for HPLC solvent supply from laboratory bottles. It is screwed onto bottles with GL28-430 thread and connects the storage bottle to the HPLC system via two capillary connections. The Cap II is suitable for applications in analytics, chemistry and pharmaceuticals where two capillary lines per bottle are required – for example two parallel intake paths or two media from one bottle. Screwed onto the laboratory bottle, the Safety Cap II with GL28-430 thread forms a closed supply system. The delivery includes PFA fittings in three outer diameters – 1.6 mm, 2.3 mm and 3.2 mm OD – for common capillary sizes. The vent valve opens under negative pressure and allows filtered air to flow in; it limits the uncontrolled release of solvent vapours and helps reduce exposure. If only one capillary connection is used, the included PFA blind plug closes the second connection. The change indicator documents the replacement date of the vent valve and facilitates plannable maintenance intervals. It refers to the vent valve, not to the entire Safety Cap.

Air Valves

Air valve, UNF 1/4", PU=1

Product no.: 317010

Air valve, UNF 1/4" 28G - service life 6 months - quantity = 1 piece

US$39.76*

Air valve, UNF 1/4", PU=8

Product no.: 397008

Air valve, UNF1/4" 28G - service life 6 months - quantity = 8 pieces

US$301.79*

Air valve, UNF 1/4", PU=10

Product no.: 397010

Air valve, UNF1/4" 28G - service life 6 months - quantity = 10 pieces

US$357.67*

Air valve, UNF 1/4", PU=50

Product no.: 397050

Air valve, UNF1/4" 28G - service life 6 months - quantity = 50 pieces

US$1,595.17*

Air valve, UNF 1/4", PU=100

Product no.: 397100

Air valve, UNF1/4" 28G - service life 6 months - quantity = 100 pieces

US$2,233.87*

Fittings

Fitting with ferrule, 1.6 mm OD, green

Product no.: 107061

PFA fitting with integrated ferrule, 1.6 mm OD, quantity = 5 pieces, green

US$31.78*

Fitting with ferrule, 3.2 mm OD, blue

Product no.: 107063

PFA fitting with integrated ferrule, 3.2 mm OD, quantity = 5 pieces, blue

US$31.78*

Fitting with ferrule, 2.3 mm OD, purple

Product no.: 107059

PFA fitting with integrated ferrule, 2.3 mm OD, quantity = 5 pieces, violet

US$31.78*

Blind plug, PFA, colourless, PU=5

Product no.: 160502

Blind plug, PFA, for capillary connector, UNF1/4" 28G, colorless, quantity =5 pieces

US$31.78*

Capillaries

PTFE capillary 1.6 mm OD (1.0 mm ID)

Product no.: 461053

PTFE Capillary 1.6 mm OD (1.0 mm ID), length = 3 m

US$26.99*

PTFE capillary 2.3 mm OD (1.7 mm ID)

Product no.: 461054

PTFE Capillary 2.3 mm OD (1.7 mm ID), length = 3 m

US$26.99*

PTFE capillary 3.2 mm OD (1.6 mm ID)

Product no.: 461055

PTFE Capillary 3.2 mm OD (1.6 mm ID), length = 3 m

US$26.99*

Connector

Capillary connector, PTFE

Product no.: 160145

Capillary connector, PTFE, 2x 1.6/2.3/3.2 mm OD

US$55.73*

Quick-Lock Connector (f), incl. fitting

Product no.: 360179

Quick-Lock Connector (f), PP, nondrip, seal of EPDM, incl. 1x PFA-fitting 1.6/2.3/3.2 mm ID

US$55.73*

Quick-Lock Connector (m), incl. ferrule

Product no.: 360180

Quick-Lock Connector (m), PP, nondrip, seal of EPDM, incl. 1x PFA-ferrule 1.6/2.3/3.2 mm ID

US$55.73*

Quick-Lock Connector (m), incl. fitting

Product no.: 360190

Quick-Lock Connector (m), PP, nondrip, seal of EPDM, incl. 1x PFA-fitting 1.6/2.3/3.2 mm ID

US$55.73*

2-in-1 connector, 3x 3.2 mm OD

Product no.: 160134

2-in-1 connector, for capillary, 3x 3.2 mm OD, PTFE/PFA

US$71.69*

Quick-Lock Connector Set I

Product no.: 360189

Quick-Lock Connector Set I: for capillaries (1.6/2.3/3.2 mm OD), consist of: 360179 + 360190

US$111.61*

Quick-Lock Connector Set II

Product no.: 360183

Quick-Lock Connector Set II, consists of: Quick-Lock Connector (m), PP, nondrip, seal of EPDM, incl. 1x PFA-ferrule 1.6/2.3/3.2 mm ID, to be screwed into standard connector Quick-Lock Connector (f), PP, nondrip, seal of EPDM, incl. 1x PFA-fitting 1.6/2.3/3.2 mm ID consist of: 360180 + 360179

US$111.61*
