Safety Cap II, GL32

Name: Safety Cap II, GL32
Brand: SCAT
SKU: 107511
Price: 159.52 USD
Availability: OutOfStock

SCAT

US$159.52*

Content: 1

Information on prices, delivery- and payment-terms

Product number: 107511

We make your Lab a safer Place!

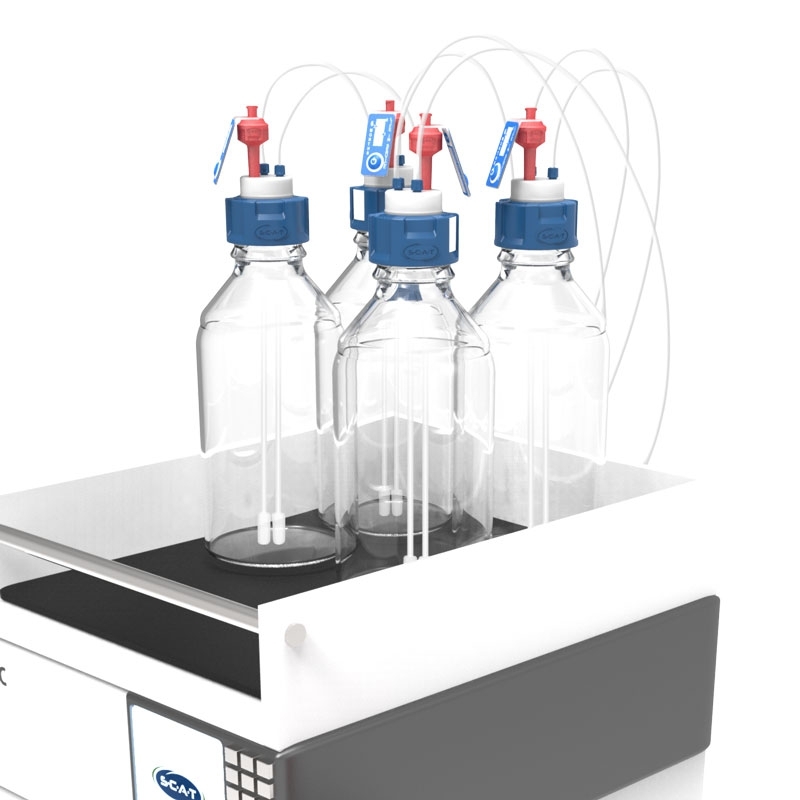

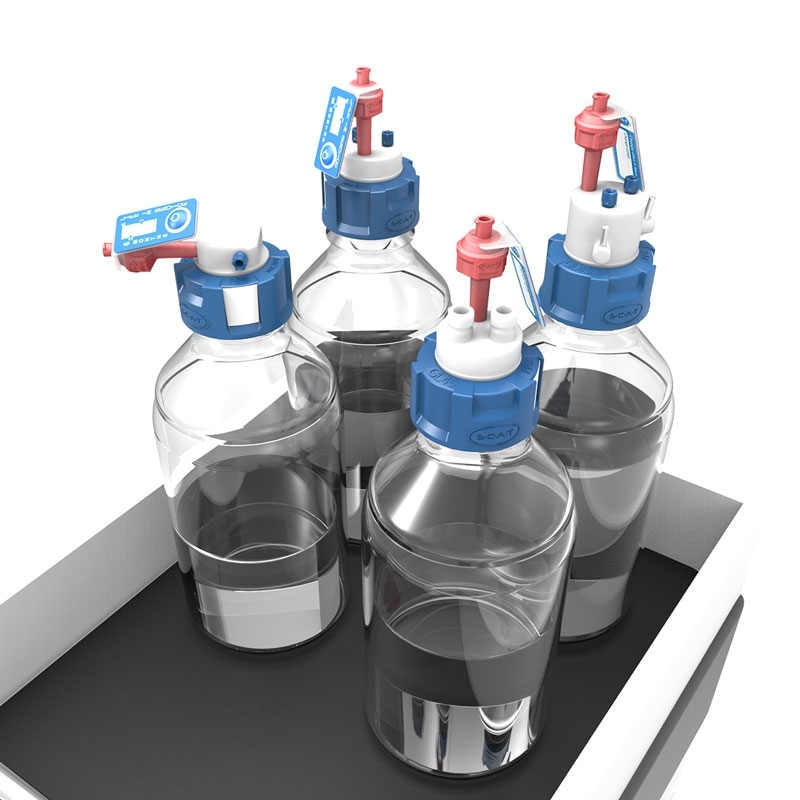

The SCAT Safety Cap II, GL32 is a hermetically sealing safety cap for safe HPLC solvent supply on laboratory bottles with GL32 thread. 2 capillary ports enable clean routing of solvent tubing directly to the HPLC system. The installed air valve opens under vacuum and provides controlled, filtered air intake into the bottle. This reduces solvent vapors, improves occupational safety and optimizes laboratory processes in analytics, chemistry and pharma.

Product information "Safety Cap II, GL32"

Safety Cap II, GL32

- 1 x air valve, UNF 1/4“ 28G

- 1 x change indicator

- 2 x PFA fitting 1.6 mm OD, UNF 1/4“ 28G

- 2 x PFA fitting 2.3 mm OD, UNF 1/4“ 28G

- 2 x PFA fitting 3.2 mm OD, UNF 1/4“ 28G

- 1 x PFA blind plug, UNF 1/4“ 28G

Specifications

Air valve:	1
Main material:	PTFE
No. of capillary connections:	2
Thread size:	GL32

Details

The Safety Cap II with GL32 thread is a safety cap for HPLC solvent supply on laboratory bottles with GL32 connection. With two capillary connections, it enables the simultaneous routing of two solvent lines directly to the HPLC system. The Cap II is positioned within the Safety Cap family for supply tasks with exactly two line connections. Typical applications are HPLC systems in analytics, chemistry, pharmaceuticals and research, where a laboratory bottle with GL32 thread serves as an eluent reservoir. If only one connection is used, the supplied PFA blind plug securely closes the free connection. The Safety Cap II is screwed onto the laboratory bottle and forms a low-emission supply system for solvent provision with it. All PFA fittings are included in three outer diameters (1.6 mm, 2.3 mm and 3.2 mm), so common capillary formats can be connected directly. The installed ventilation valve opens when there is negative pressure in the bottle and allows filtered air to flow in; uncontrolled vapour release is thereby limited. The supplied change indicator documents the replacement date of the ventilation valve and facilitates plannable maintenance intervals. For GL32 laboratory bottles, the Safety Cap II with its two capillary connections is a clearly dimensioned component in the HPLC supply system.

Bottles

DURAN square bottle, GL32, 100 ml, clear

Product no.: 501111

Laboratory bottle DURAN - GL32, 100 ml - Clear glass & square - with cap and spout

US$39.76*

Air Valves

Air valve, UNF 1/4", PU=1

Product no.: 317010

Air valve, UNF 1/4" 28G - service life 6 months - quantity = 1 piece

US$39.76*

Air valve, UNF 1/4", PU=8

Product no.: 397008

Air valve, UNF1/4" 28G - service life 6 months - quantity = 8 pieces

US$301.79*

Air valve, UNF 1/4", PU=10

Product no.: 397010

Air valve, UNF1/4" 28G - service life 6 months - quantity = 10 pieces

US$357.67*

Air valve, UNF 1/4", PU=50

Product no.: 397050

Air valve, UNF1/4" 28G - service life 6 months - quantity = 50 pieces

US$1,595.17*

Air valve, UNF 1/4", PU=100

Product no.: 397100

Air valve, UNF1/4" 28G - service life 6 months - quantity = 100 pieces

US$2,233.87*

Fittings

Fitting with ferrule, 1.6 mm OD, green

Product no.: 107061

PFA fitting with integrated ferrule, 1.6 mm OD, quantity = 5 pieces, green

US$31.78*

Fitting with ferrule, 3.2 mm OD, blue

Product no.: 107063

PFA fitting with integrated ferrule, 3.2 mm OD, quantity = 5 pieces, blue

US$31.78*

Fitting with ferrule, 2.3 mm OD, purple

Product no.: 107059

PFA fitting with integrated ferrule, 2.3 mm OD, quantity = 5 pieces, violet

US$31.78*

Blind plug, PFA, colourless, PU=5

Product no.: 160502

Blind plug, PFA, for capillary connector, UNF1/4" 28G, colorless, quantity =5 pieces

US$31.78*

Capillaries

PTFE capillary 1.6 mm OD (1.0 mm ID)

Product no.: 461053

PTFE Capillary 1.6 mm OD (1.0 mm ID), length = 3 m

US$26.99*

PTFE capillary 2.3 mm OD (1.7 mm ID)

Product no.: 461054

PTFE Capillary 2.3 mm OD (1.7 mm ID), length = 3 m

US$26.99*

PTFE capillary 3.2 mm OD (1.6 mm ID)

Product no.: 461055

PTFE Capillary 3.2 mm OD (1.6 mm ID), length = 3 m

US$26.99*

Connector

Capillary connector, PTFE

Product no.: 160145

Capillary connector, PTFE, 2x 1.6/2.3/3.2 mm OD

US$55.73*

Quick-Lock Connector (f), incl. fitting

Product no.: 360179

Quick-Lock Connector (f), PP, nondrip, seal of EPDM, incl. 1x PFA-fitting 1.6/2.3/3.2 mm ID

US$55.73*

Quick-Lock Connector (m), incl. ferrule

Product no.: 360180

Quick-Lock Connector (m), PP, nondrip, seal of EPDM, incl. 1x PFA-ferrule 1.6/2.3/3.2 mm ID

US$55.73*

Quick-Lock Connector (m), incl. fitting

Product no.: 360190

Quick-Lock Connector (m), PP, nondrip, seal of EPDM, incl. 1x PFA-fitting 1.6/2.3/3.2 mm ID

US$55.73*

2-in-1 connector, 3x 3.2 mm OD

Product no.: 160134

2-in-1 connector, for capillary, 3x 3.2 mm OD, PTFE/PFA

US$71.69*

Quick-Lock Connector Set I

Product no.: 360189

Quick-Lock Connector Set I: for capillaries (1.6/2.3/3.2 mm OD), consist of: 360179 + 360190

US$111.61*

Quick-Lock Connector Set II

Product no.: 360183

Quick-Lock Connector Set II, consists of: Quick-Lock Connector (m), PP, nondrip, seal of EPDM, incl. 1x PFA-ferrule 1.6/2.3/3.2 mm ID, to be screwed into standard connector Quick-Lock Connector (f), PP, nondrip, seal of EPDM, incl. 1x PFA-fitting 1.6/2.3/3.2 mm ID consist of: 360180 + 360179

US$111.61*
