Safety Waste Cap Mini-LISA, satellit

Skip image gallery

US$166.06*

Content: 1
Information on prices, delivery- and payment-terms
Product number: 160532
We make your Lab a safer Place!
The SCAT Safety Waste Cap Mini-LISA extension is a modular add-on for doubling connection options. It replaces the upper blind plug and expands the system with additional capillary, tube and exhaust filter ports.

Product information "Safety Waste Cap Mini-LISA, satellit"

Safety Waste Cap Mini-LISA, Extension, GL14, PTFE, 4x 1.6/2.3/3.2mm OD, 4x PFA-blindplug, 3x 5.0 - 11.5mm ID, 3x PP-blindplug

Specifications
Main material: PTFE
No. of capillary connections: 4
No. of tube connections: 3
Thread size: GL14
Skip product gallery

Capillaries

PTFE capillary 1.6 mm OD (1.0 mm ID)
PTFE capillary 1.6 mm OD (1.0 mm ID)
Product no.: 461053
PTFE Capillary 1.6 mm OD (1.0 mm ID), length = 3 m

US$26.99*
PTFE capillary 2.3 mm OD (1.7 mm ID)
PTFE capillary 2.3 mm OD (1.7 mm ID)
Product no.: 461054
PTFE Capillary 2.3 mm OD (1.7 mm ID), length = 3 m

US$26.99*
PTFE capillary 3.2 mm OD (1.6 mm ID)
PTFE capillary 3.2 mm OD (1.6 mm ID)
Product no.: 461055
PTFE Capillary 3.2 mm OD (1.6 mm ID), length = 3 m

US$26.99*
Skip product gallery

Tubes

PTFE tube, ID = 10 mm, OD = 12 mm, ec
PTFE tube, ID = 10 mm, OD = 12 mm, ec
Product no.: 108019
PTFE tube, electrostatic conductive, black, ID = 10 mm, OD = 12 mm, length = 1m

US$63.71*
PTFE tube, ID = 8 mm, OD = 10 mm, ec
PTFE tube, ID = 8 mm, OD = 10 mm, ec
Product no.: 108018
PTFE tube, electrostatic conductive, black, ID = 8 mm, OD = 10 mm, length = 1m

US$55.73*
PTFE tube, ID = 6 mm, OD = 8 mm, ec
PTFE tube, ID = 6 mm, OD = 8 mm, ec
Product no.: 108017
PTFE tube, electrostatic conductive, black, ID = 6 mm, OD = 8 mm, length = 1m

US$39.76*
Plastic Tube, PFA, ec, PU=1 m
Plastic Tube, PFA, ec, PU=1 m
Product no.: 108015
Electrostatic conductive PFA plastic tube, flexible (spiral), ID = 9 mm, OD = 13 mm, unit = 1 m

US$119.60*
Corrugated tube, flexible, PE, ID 6.5 mm
Corrugated tube, flexible, PE, ID 6.5 mm
Product no.: 461056
Corrugated tube, flexible, PP, ID 6.5 mm, length = 1 m, for HPLC instruments

US$31.78*
Skip product gallery

Accessories

Capillary cutter incl. replacement blade
Capillary cutter incl. replacement blade
Product no.: 900103
Capillary cutter incl. spare blade

US$55.73*
Installation wrench, for fitting
Installation wrench, for fitting
Product no.: 160530
Installation wrench, tool, POM, green, hexagonal, for PFA- and PE-fittings

US$31.78*
measuring template for capillaries&tubes
measuring template for capillaries&tubes
Product no.: 199936
SCAT measuring template for capillaries & tubes

US$0.00*
Skip product gallery

Mini-LISA

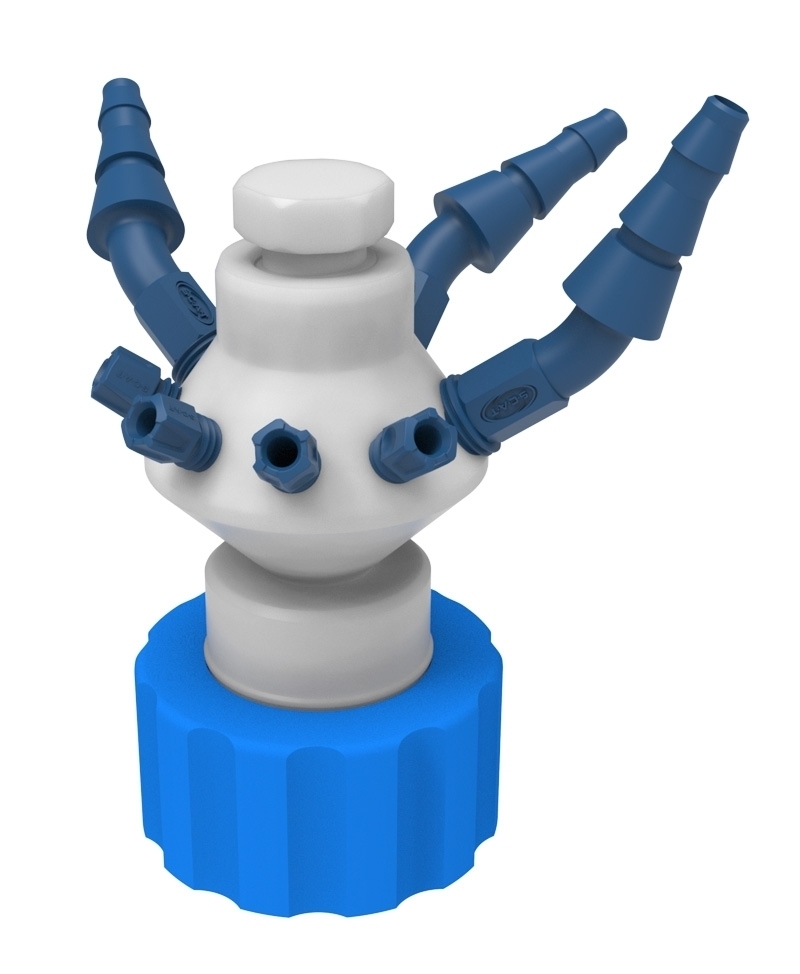

Safety Waste Cap Mini-LISA, 38-430
Safety Waste Cap Mini-LISA, 38-430
Product no.: 350038
Safety Waste Cap Mini-LISA, 38-430 / Wheaton - 3 x PP tube connectors 5 - 11.5 mm OD, NPT 1/8" - 4 x PFA fitting 1.6 mm OD, UNF 1/4“ 28G - 4 x PFA fitting 2.3 mm OD, UNF 1/4“ 28G - 4 x PFA fitting 3.2 mm OD, UNF 1/4“ 28G - 4 x PFA blind plugs for HPLC connections, UNF 1/4" - 3 x PP blind plugs for tubing connections, NPT 1/8" - 1 x PTFE blind plug for exhaust filter connection, GL14

US$261.87*

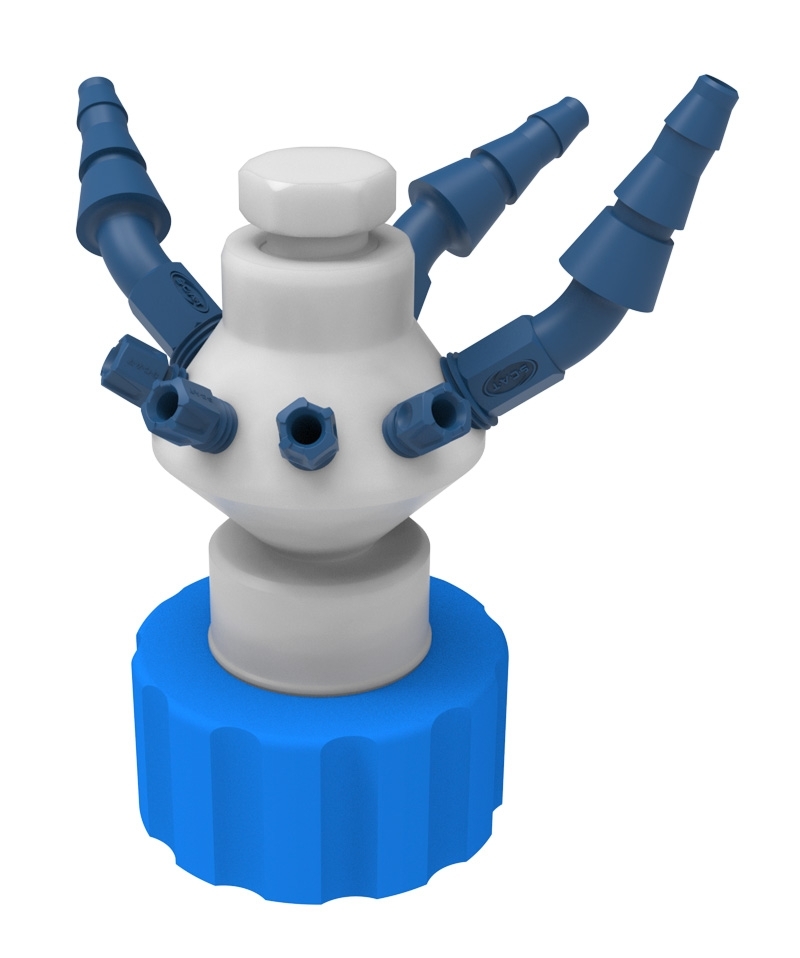

Safety Waste Cap Mini-LISA, S40
Safety Waste Cap Mini-LISA, S40
Product no.: 350040
Safety Waste Cap Mini-LISA, S40 - 3 x PP tube connectors 5 - 11.5 mm OD, NPT 1/8" - 4 x PFA fitting 1.6 mm OD, UNF 1/4“ 28G - 4 x PFA fitting 2.3 mm OD, UNF 1/4“ 28G - 4 x PFA fitting 3.2 mm OD, UNF 1/4“ 28G - 4 x PFA blind plugs for HPLC connections, UNF 1/4" - 3 x PP blind plugs for tubing connections, NPT 1/8" - 1 x PTFE blind plug for exhaust filter connection, GL14

US$261.87*

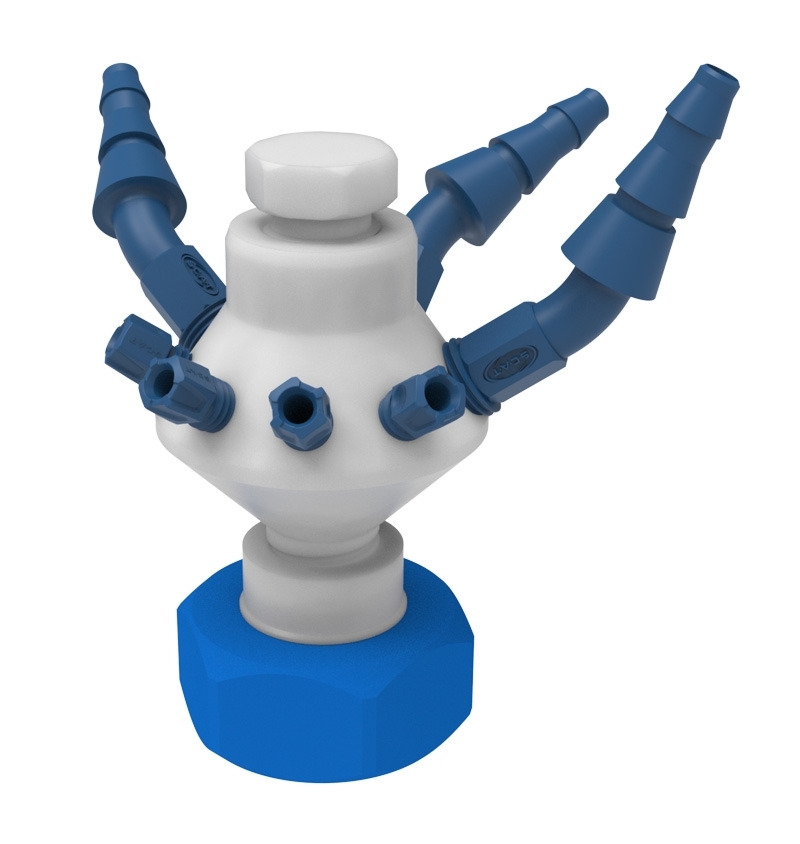

Safety Waste Cap Mini-LISA, GL28
Safety Waste Cap Mini-LISA, GL28
Product no.: 350028
Safety Waste Cap Mini-LISA, GL28 - 3 x PP tube connectors 5 - 11.5 mm OD, NPT 1/8" - 4 x PFA fitting 1.6 mm OD, UNF 1/4“ 28G - 4 x PFA fitting 2.3 mm OD, UNF 1/4“ 28G - 4 x PFA fitting 3.2 mm OD, UNF 1/4“ 28G - 4 x PFA blind plugs for HPLC connections, UNF 1/4" - 3 x PP blind plugs for tubing connections, NPT 1/8" - 1 x PTFE blind plug for exhaust filter connection, GL14

US$261.87*

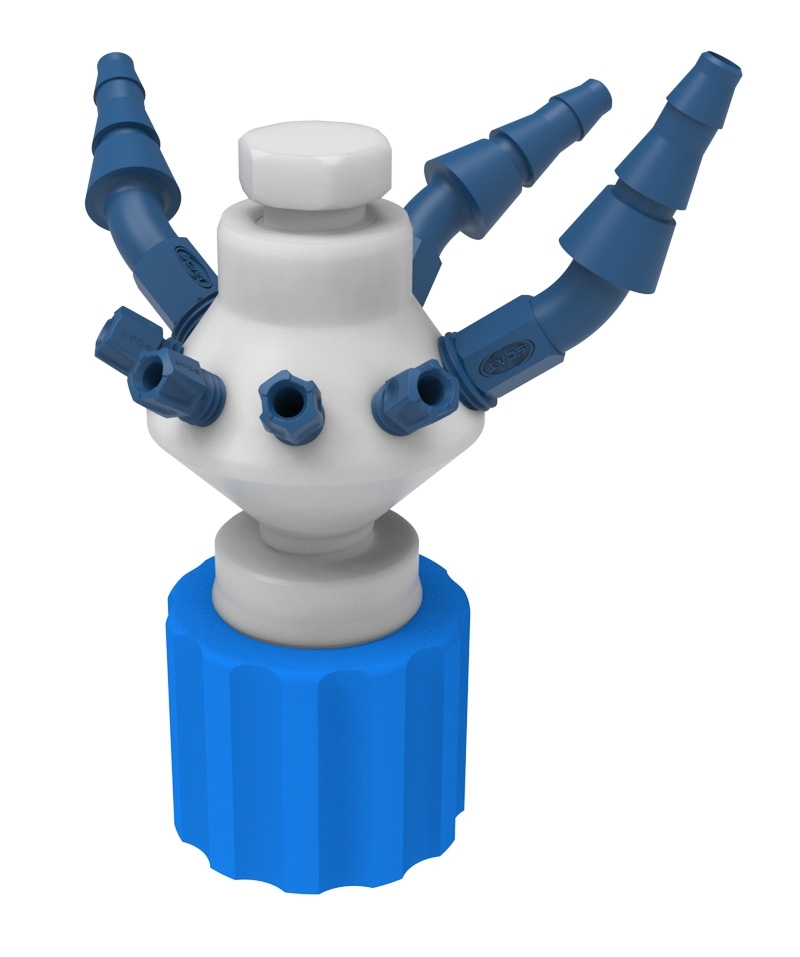

Safety Waste Cap Mini-LISA, GL32
Safety Waste Cap Mini-LISA, GL32
Product no.: 350032
Safety Waste Cap Mini-LISA, GL32 - 3 x PP tube connectors 5 - 11.5 mm OD, NPT 1/8" - 4 x PFA fitting 1.6 mm OD, UNF 1/4“ 28G - 4 x PFA fitting 2.3 mm OD, UNF 1/4“ 28G - 4 x PFA fitting 3.2 mm OD, UNF 1/4“ 28G - 4 x PFA blind plugs for HPLC connections, UNF 1/4" - 3 x PP blind plugs for tubing connections, NPT 1/8" - 1 x PTFE blind plug for exhaust filter connection, GL14

US$261.87*
Safety Waste Cap Mini-LISA, GL38
Safety Waste Cap Mini-LISA, GL38
Product no.: 350039
Safety Waste Cap Mini-LISA, GL38 - 3 x PP tube connectors 5 - 11.5 mm OD, NPT 1/8" - 4 x PFA fitting 1.6 mm OD, UNF 1/4“ 28G - 4 x PFA fitting 2.3 mm OD, UNF 1/4“ 28G - 4 x PFA fitting 3.2 mm OD, UNF 1/4“ 28G - 4 x PFA blind plugs for HPLC connections, UNF 1/4" - 3 x PP blind plugs for tubing connections, NPT 1/8" - 1 x PTFE blind plug for exhaust filter connection, GL14

US$261.87*
