3-way ball valve, 3xGL25

Name: 3-way ball valve, 3xGL25
Brand: SCAT
SKU: 160178
Price: 1014.95 USD
Availability: InStock

SCAT

US$1,014.95*

Content: 1

Information on prices, delivery- and payment-terms

Product number: 160178

Delivery Time: 7-10 days

We make your Lab a safer Place!

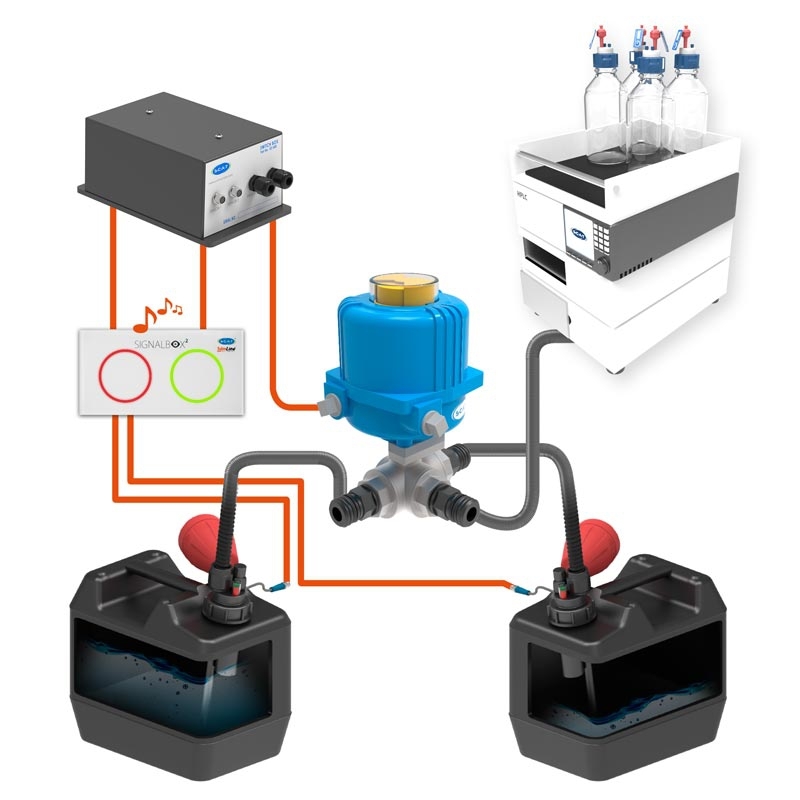

The SCAT 3-way ball valve is used for automatic switchover between two collection containers within the SymLine disposal system. In combination with Switchbox and level signals, the waste stream can be diverted automatically. This enables safe continued operation when one container reaches its critical fill level.

Product information "3-way ball valve, 3xGL25"

3-way ball valve, 3x GL25 (m)

- electrically operated

- stainless steel

Specifications

Main material:	Cast stainless steel CF8M
Thread size:	3 x GL25 (m), (3x ½" (f), ISO 228)

Flex Tubes

SymLine FlexTube Pro, Length 1000 mm

Product no.: 106574

SymLine FlexTube Pro 1000 - Length = 1000mm - PTFE electrostatic conductive and flexible ODaptable ID = 13.4 - 13.9 mm, OD = 16.0 - 16.9 mm - outside spiral formed and inside smooth - 2x GL25 screw connection - PTFE electrostatic conductive (106591) - 1x Tube holder for SymLine FlexTube Pro, suitable for all cabinets (106558)

US$284.75*

SymLine FlexTube Pro, Length 1500 mm

Product no.: 106573

SymLine FlexTube Pro 1500 - Length = 1500 mm - PTFE electrostatic conductive and flexibly adaptable ID = 13.4 - 13.9 mm, OD = 16.0 - 16.9 mm - outside spiral formed and inside smooth - 2x GL25 screw connection - PTFE electrostatic conductive (106591) - 1x Tube holder for SymLine FlexTube Pro, suitable for all cabinets (106558)

US$376.31*

SymLine FlexTube Pro, Length 2500 mm

Product no.: 106572

SymLine FlexTube Pro 2500 - Length = 2500mm - PTFE electrostatic conductive and flexible ODaptable ID = 13.4 - 13.9 mm, OD = 16.0 - 16.9 mm - outside spiral formed and inside smooth - 2x GL25 screw connection - PTFE electrostatic conductive (106591) - 1x Tube holder for SymLine FlexTube Pro, suitable for all cabinets (106558)

US$559.05*

SymLine FlexTube Pro, Length 600 mm

Product no.: 106575

SymLine FlexTube Pro 600 - Length = 600mm - PTFE electrostatic conductive and flexible ODaptable ID = 13.4 - 13.9 mm, OD = 16.0 - 16.9 mm - outside spiral formed and inside smooth - 2x GL25 screw connection - PTFE electrostatic conductive (106591) - 1x Tube holder for SymLine FlexTube Pro, suitable for all cabinets (106558)

US$211.80*

SymLine FlexTube, length 1000 mm

Product no.: 106568

SymLine FlexTube 1000: - Length = 1000 mm - PTFE electrostatic conductive and flexibly adaptable, ID = 14.3 - 14.8 mm, OD = 19.0 - 19.8 mm - spiral formed - 2x GL25 screw connection - PTFE electrostatic conductive (106579) - 1x Tube holder for SymLine FlexTube, suitable for all cabinets (106562)

US$162.92*

SymLine FlexTube, length 1500 mm

Product no.: 106567

SymLine FlexTube 1500: - Length = 1500 mm - PTFE electrostatic conductive and flexibly adaptable, ID = 14.3 - 14.8 mm, OD = 19.0 - 19.8 mm - spiral formed - 2x GL25 screw connection - PTFE electrostatic conductive (106579) - 1x Tube holder for SymLine FlexTube, suitable for all cabinets (106562)

US$183.22*

SymLine FlexTube, length 2500 mm

Product no.: 106566

SymLine FlexTube 2500: - Length = 2500 mm - PTFE electrostatic conductive and flexibly adaptable, ID = 14.3 - 14.8 mm, OD = 19.0 - 19.8 mm - spiral formed - 2x GL25 screw connection - PTFE electrostatic conductive (106579) - 1x Tube holder for SymLine FlexTube, suitable for all cabinets (106562)

US$223.36*

SymLine FlexTube, length 600 mm

Product no.: 106569

SymLine FlexTube 600: - Length = 600 mm - PTFE electrostatic conductive and flexibly adaptable, ID = 14.3 - 14.8 mm, OD = 19.0 - 19.8 mm - spiral formed - 2x GL25 screw connection - PTFE electrostatic conductive (106579) - 1x Tube holder for SymLine FlexTube, suitable for all cabinets (106562)

US$146.74*

Switch Box

Switchbox SCAT

Product no.: 106730

SwitchBox: control unit for SCAT Built-in Signalbox or Signalbox T1/T5. Controls electrically operated valve depending on the full-state signal. Aditionally, SwitchBox can be used in any kind of automation circuit (pump, valve, etc. control). - power supply: 24V DC EU / UK / US plug

US$447.09*

Signalboxes

Built-in Signalbox1

Product no.: 106741

Built-in Signalbox1, EU / UK /US, 1-channel - for Safety Waste Cap and other electronical level controlers - touchless alarm-resetting fields for one container - one switch input and one switch output for peripheral units - incl.B40:E96 24 V power supply

US$513.25*

Built-in Signalbox2

Product no.: 106548

Built-in Signalbox2, EU / UK /US, 2-channel - for Safety Waste Cap and other electronical level controlers - touchless alarm-resetting fields for two containers - two switch inputs and two switch outputs for peripheral units - incl. 24 V power supply

US$769.87*

Built-in Signalbox5

Product no.: 106735

Built-in Signalbox5, EU / UK /US, 5-channel - for Safety Waste Cap and other electronical level controlers - touchless alarm-resetting fields for five containers - five switch inputs and five switch outputs for peripheral units - incl. 24 V power supply

US$975.17*

Table signal box T1, 1 sensor input

Product no.: 108087

Table signal box T1 - EU / UK / US, with 1 sensor input and 1 potential-free output (can be used to control external devices). Display: LED, power supply: 24V DC EU / UK / US plug, switching power: 24V/2A, power consumption: max. 4W, dimensions (WxHxD): ca. 180x105x55 mm, weight: ca 0.65 kg, operating temperature: +5°C to +40°C.

US$545.75*

Table signal box T5, 5 sensor inputs

Product no.: 108088

Table signal box T5 - EU / UK / US, with 5 sensor inputs and 6 potential-free outputs (can be used to control external devices). Display: LED, power supply: 24V DC EU / UK / US plug, switching power: 24V/2A, power consumption: max. 4W, Dimensions (WxHxD): ca. 180x105x55 mm, weight: ca 0.65 kg, operating temperature: +5°C bis +40°C.

US$1,024.78*

Signal cables

Signal cable for level controling, 10 m

Product no.: 108038

Signal cable for electronic level control, length = 10 m

US$79.68*

Signal cable for level controling, 3 m

Product no.: 108050

Signal cable for electronic level control, length = 3 m

US$71.69*

Signal cable for level controling, 5 m

Product no.: 108037

Signal cable for electronic level control, length = 5 m

US$76.48*

Signal cable, length = 1.5 m

Product no.: 108304

Signal cable for electronic level control, Length = 1.5 m

US$54.43*

Automatic switching for container sets

Automatic switching for container

Product no.: 106750

Automatic switching for container SymLine - Set for automatic switching - 1x SwitchBox: control unit for SCAT built-in signal box or signal box T1 / T5 (106730) - 1x 3-way ball valve, 3x GL25 (m), electric, material: stainless steel (160178) - 1x 3-way ball valve mount, stainless steel (106580) - 2x signal cable for electronic level monitoring, length = 3 m (108050)

US$1,709.27*

automatic switching for container

Product no.: 106751

Set: automatic switching for container - 1x Built-in Signalbox2, EU / UK /US, 2-channel, two switch inputs and two switch outputs for peripheral units (106548) - 1x SwitchBox: control unit for SCAT built-in signal box or signal box T1 / T5 (106730) - 1x 3-way ball valve, 3x GL25 (m), electric, material: stainless steel (160178) - 1x 3-way ball valve mount, stainless steel (106580) - 2x signal cable for electronic level monitoring, length = 3 m (108050)

US$2,604.25*

auto switch for container (ATEX)

Product no.: 106752

Set: automatic switching for container (ATEX) - 1x Built-in Signalbox2, EU / UK /US, 2-channel, two switch inputs and two switch outputs for peripheral units (106548) - 1x Switch amplifier set for safety cabinets "EU-plug", consisting of: 1x Switch amplifier EU, 2 channels (106678) - 1x SwitchBox: control unit for SCAT built-in signal box or signal box T1 / T5 (106730) - 1x 3-way ball valve, 3x GL25 (m), electric, material: stainless steel (160178) - 1x 3-way ball valve mount, stainless steel (106580) - 2x signal cable for electronic level monitoring, length = 3 m (108050)

US$3,642.22*
