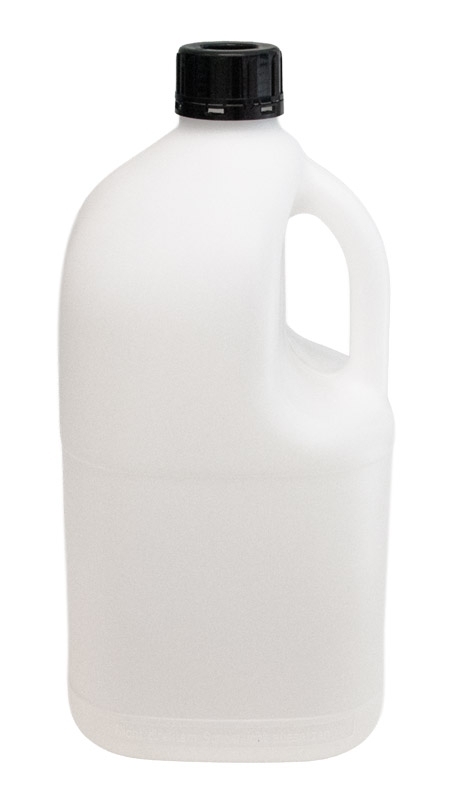

Bottle, 5 L, GL45, PE-HD, UN-X

Name: Bottle, 5 L, GL45, PE-HD, UN-X
SKU: 501183
Price: 29.73 USD
Availability: InStock

US$29.73*

Content: 1

Information on prices, delivery- and payment-terms

Product number: 501183

Delivery Time: 7-10 days

We make your Lab a safer Place!

The SCAT narrow-neck bottle with a 5 liter volume and GL45 thread is made of robust HDPE and is suitable for the safe storage, supply and handling of larger quantities of liquids in the laboratory. The break-resistant plastic material is chemically resistant and provides a stable alternative to glass bottles, especially for frequent handling. The standardized GL45 thread enables combination with suitable SCAT Safety Caps and other laboratory connectors. The UN-X approval supports the safe transport of suitable hazardous substances in accordance with applicable regulations.

Product information "Bottle, 5 L, GL45, PE-HD, UN-X"

Narrow-neck bottle, 5 Liter, GL45

- Material: PE-HD

- Dimensions (W x H x D): 168 x 332 x 168 mm

- square base

- compatible with SCAT Safety Caps

- suitable for PFAS analysis with GreenLine Safety Cap

Specifications

Capacity (litres):	5,00
Main material:	HDPE
Thread size:	GL45
UN approval:	Yes

Safety Caps

Safety Cap I, GL45

Product no.: 307019

Safety Cap I, GL45 - 1 x air valve, UNF 1/4“ 28G - 1 x change indicator - 1 x PFA fitting 1.6 mm OD, UNF 1/4“ 28G - 1 x PFA fitting 2.3 mm OD, UNF 1/4“ 28G - 1 x PFA fitting 3.2 mm OD, UNF 1/4“ 28G - 1 x labelling field

US$135.57*

Safety Cap II, GL45

Product no.: 307909

Safety Cap II, GL45 - 1 x air valve, UNF 1/4“ 28G - 1 x change indicator - 2 x PFA fitting 1.6 mm OD, UNF 1/4“ 28G - 2 x PFA fitting 2.3 mm OD, UNF 1/4“ 28G - 2 x PFA-fitting 3.2 mm OD, UNF 1/4“ 28G - 1 x PFA blind plug, UNF 1/4“ 28G - 1 x labelling field

US$151.53*

Safety Cap I, GL45, prep. 4.00 mm OD

Product no.: 309034

Safety Cap I, GL45, preparative - 1 x air valve, UNF 1/4“ 28G - 1 x change indicator - 1 x PTFE fitting 4.00 mm OD, UNF 5/16“ - 1 x labelling field

US$159.52*

Safety Cap I, GL45, prep. 4.76 mm OD

Product no.: 308032

Safety Cap I, GL45, preparative - 1 x air valve, UNF 1/4“ 28G - 1 x change indicator - 1 x PTFE fitting 4.76 mm OD, UNF 5/16“ - 1 x labelling field

US$159.52*

Safety Cap I, GL45, prep. 6.35 mm OD

Product no.: 307007

Safety Cap I, GL45, preparative, - 1 x air valve, UNF 1/4“ 28G - 1 x change indicator - 1 x PTFE fitting 6.35 mm OD, NPT 1/8" - 1 x labelling field

US$159.52*

Safety Cap III, GL45

Product no.: 307910

Safety Cap III, GL45 - 1 x air valve, UNF 1/4“ 28G - 1 x change indicator - 3 x PFA fitting 1.6 mm OD, UNF 1/4“ 28G - 3 x PFA fitting 2.3 mm OD, UNF 1/4“ 28G - 3 x PFA fitting 3.2 mm OD, UNF 1/4“ 28G - 2 x PFA blind plug, UNF 1/4“ 28G - 1 x labelling field

US$159.52*

Safety Cap II, GL45, prep. 6.35 mm OD

Product no.: 307008

Safety Cap II, GL45, preparative - 1 x air valve, UNF 1/4“ 28G - 1 x change indicator - 2 x PTFE fitting 6.35 mm OD, NPT 1/8" - 1 x labelling field

US$174.05*

Safety Cap II, GL45, 1x prep. 6.35 mm OD

Product no.: 307009

Safety Cap II, GL45, preparative - 1 x air valve, UNF 1/4“ 28G - 1 x change indicator - 1 x PFA fitting 1.6 mm OD, UNF 1/4“ 28G - 1 x PFA fitting 2.3 mm OD, UNF 1/4“ 28G - 1 x PFA fitting 3.2 mm OD, UNF 1/4“ 28G - 1 x PTFE fitting 6.35 mm OD, NPT 1/8" - 1 x labelling field

US$174.05*

Safety Cap IV, GL45

Product no.: 307410

Safety Cap IV, GL45 - 1 x air valve, UNF 1/4“ 28G - 1 x change indicator - 4 x PFA fitting 1.6 mm OD, UNF 1/4“ 28G - 4 x PFA fitting 2.3 mm OD, UNF 1/4“ 28G - 4 x PFA fitting 3.2 mm OD, UNF 1/4“ 28G - 3 x PFA blind plug, UNF 1/4“ 28G - 1 x labelling field

US$174.05*

Safety Cap II, GL45, prep. 4.76 mm OD

Product no.: 309032

Safety Cap II, GL45, preparative - 1 x air valve, UNF 1/4“ 28G - 1 x change indicator - 2 x PTFE fitting 4.76 mm OD, UNF 5/16“ - 1 x labelling field

US$174.05*

Safety Cap II, GL45, 1x prep. 4.76 mm OD

Product no.: 307003

Safety Cap II, GL45, preperative - 1 x air valve, UNF 1/4“ 28G - 1 x change indicator - 1 x PFA fitting 1.6 mm OD, UNF 1/4“ 28G - 1 x PFA fitting 2.3 mm OD, UNF 1/4“ 28G - 1 x PFA fitting 3.2 mm OD, UNF 1/4“ 28G - 1 x PTFE fitting 4.76 mm OD, UNF 5/16“ - 1 x labelling field

US$174.05*

Safety Cap VI, GL45

Product no.: 307520

Safety Cap VI, GL45 - 1 x air valve, UNF 1/4“ 28G - 1 x change indicator - 6 x PFA fitting 1.6 mm OD, UNF 1/4“ 28G - 6 x PFA fitting 2.3 mm OD, UNF 1/4“ 28G - 6 x PFA fitting 3.2 mm OD, UNF 1/4“ 28G - 5 x PFA blind plug, UNF 1/4“ 28G - 1 x labelling field

US$190.01*

Safety Cap III, GL45, prep. 4.76 mm OD

Product no.: 310032

Safety Cap III, GL45, preparative - 1 x air valve, UNF 1/4“ 28G - 1 x change indicator - 3 x PTFE fitting 4.76 mm OD, UNF 5/16“ - 1 x labelling field

US$190.01*

Safety Cap I, GL45, 90° angled

Product no.: 399019

Safety Cap I, GL45, 90° angled - 1 x air valve, UNF 1/4“ 28G - 1 x change indicator - 1 x PFA fitting 1.6 mm OD, UNF 1/4“ 28G - 1 x PFA fitting 2.3 mm OD, UNF 1/4“ 28G - 1 x PFA fitting 3.2 mm OD, UNF 1/4“ 28G - 1 x labelling field

US$190.01*

Safety Cap II, GL45, 2 x shut-off valve

Product no.: 307919

Safety Cap II, GL45 - 2 x shut-off - 1 x air valve, UNF 1/4“ 28G - 1 x change indicator - 2 x PFA fitting 1.6 mm OD, UNF 1/4“ 28G - 2 x PFA fitting 2.3 mm OD, UNF 1/4“ 28G - 2 x PFA fitting 3.2 mm OD, UNF 1/4“ 28G - 1 x labelling field

US$205.98*

Safety Cap II, GL45, 1 x shut-off valve

Product no.: 307219

Safety Cap II, GL45 - 1 x shut-off (combined) - 1 x air valve, UNF 1/4“ 28G - 1 x change indicator - 2 x PFA fitting 1.6 mm OD, UNF 1/4“ 28G - 2 x PFA fitting 2.3 mm OD, UNF 1/4“ 28G - 2 x PFA fitting 3.2 mm OD, UNF 1/4“ 28G - 1 x PFA blind plug, UNF 1/4“ 28G - 1 x labelling field

US$205.98*

Safety Cap II, GL45, 90° angled

Product no.: 399909

Safety Cap II, GL45, 90° angled - 1 x air valve, UNF 1/4“ 28G - 1 x change indicator - 2 x PFA fitting 1.6 mm OD, UNF 1/4“ 28G - 2 x PFA fitting 2.3 mm OD, UNF 1/4“ 28G - 2 x PFA fitting 3.2 mm OD, UNF 1/4“ 28G - 1 x PFA blind plug, UNF 1/4“ 28G - 1 x labelling field

US$205.98*

Safety Cap III, GL45, 3 x shut-off valve

Product no.: 307920

Safety Cap III, GL45 - 3 x shut-off - 1 x air valve, UNF 1/4“ 28G - 1 x change indicator - 3 x PFA fitting 1.6 mm OD, UNF 1/4“ 28G - 3 x PFA fitting 2.3 mm OD, UNF 1/4“ 28G - 3 x PFA fitting 3.2 mm OD, UNF 1/4“ 28G - 1 x labelling field

US$221.95*

Safety Cap III, GL45, 2 x shut-off valve

Product no.: 307319

Safety Cap II, GL45 - 2 x shut-off (combined) - 1 x air valve, UNF 1/4“ 28G - 1 x change indicator - 3 x PFA fitting 1.6 mm OD, UNF 1/4“ 28G - 3 x PFA fitting 2.3 mm OD, UNF 1/4“ 28G - 3 x PFA fitting 3.2 mm OD, UNF 1/4“ 28G - 1 x PFA blind plug, UNF 1/4“ 28G - 1 x labelling field

US$221.95*

Safety Cap VI, GL45, 4 x shut-off valve

Product no.: 307419

Safety Cap IV, GL45 - 4 x shut-off - 1 x air valve, UNF 1/4“ 28G - 1 x change indicator - 4 x PFA fitting 1.6 mm OD, UNF 1/4“ 28G - 4 x PFA fitting 2.3 mm OD, UNF 1/4“ 28G - 4 x PFA fitting 3.2 mm OD, UNF 1/4“ 28G - 1 x labelling field

US$237.92*

Safety Cap VI, GL45, 6 x shut-off valve

Product no.: 307519

Safety Cap VI, GL45 - 6 x shut-off - 1 x air valve, UNF 1/4“ 28G - 1 x change indicator - 6 x PFA fitting 1.6 mm OD, UNF 1/4“ 28G - 6 x PFA fitting 2.3 mm OD, UNF 1/4“ 28G - 6 x PFA fitting 3.2 mm OD, UNF 1/4“ 28G - 1 x labelling field

US$365.66*

Capillaries

PTFE capillary 1.6 mm OD (1.0 mm ID)

Product no.: 461053

PTFE Capillary 1.6 mm OD (1.0 mm ID), length = 3 m

US$26.99*

PTFE capillary 2.3 mm OD (1.7 mm ID)

Product no.: 461054

PTFE Capillary 2.3 mm OD (1.7 mm ID), length = 3 m

US$26.99*

PTFE capillary 3.2 mm OD (1.6 mm ID)

Product no.: 461055

PTFE Capillary 3.2 mm OD (1.6 mm ID), length = 3 m

US$26.99*

Suction filters

Suction filter for solvents, 20 µm

Product no.: 300021

HPLC suction filters for solvents, UHMW-PE, OD 1/8" (3.2 mm), pore size 20µm, quantity 5 pieces

US$79.68*

Suction filter for solvents, 5 µm

Product no.: 300022

HPLC suction filters for solvents, PFA/PTFE, OD 1/8" (3.2 mm), pore size 5 µm, quantity 5 pieces

US$111.61*

Level control

Disc sensor set, FS, visual

Product no.: 108335

Signal lamp - EU / UK / US, for level control, visually signal (flashing) when the level is reached, with magnetic holder for individual attachment - with disc sensor, visual alarm at full state, - 3 m signal cable, - 2 m hook and loop fastener for disc sensor - incl. power supply: 24V DC EU / UK / US plug

US$682.62*

Disc sensor set, FS, visual & acoustic

Product no.: 108335-T

Signal lamp - EU / UK / US, for level control, visually and acoustically signal when the level is reached, with magnetic holder for individual attachment - with disc sensor, visual alarm at full state, - 3 m signal cable, - 2 m hook and loop fastener for disc sensor - incl. power supply: 24V DC EU / UK / US plug

US$682.62*

Disc sensor set, ES, visual

Product no.: 108336

- Signal lamp - EU / UK / US, for level control, visually signal (flashing) at empty state, with magnetic holder for individual attachment - with disc sensor, visual alarm at empty state, - 3 m signal cable, - 2 m hook and loop fastener for disc sensor - incl. power supply: 24V DC EU / UK / US plug

US$682.62*

Disc sensor set, ES, visual & acoustic

Product no.: 108336-T

- Signal lamp - EU / UK / US, for level control, visually and acoustically signal at empty state, with magnetic holder for individual attachment - with disc sensor, visual alarm at empty state, - 3 m signal cable, - 2 m hook and loop fastener for disc sensor - incl. power supply: 24V DC EU / UK / US plug

US$682.62*

Table signal box T1, disc sensor, FS

Product no.: 108125

Table signal box T1 -EU / UK / US, with disc sensor, alarm at full state, 3 m signal cable, 2 m hook and loop fastener for disc sensor incl. power supply: 24V DC EU / UK / US plug

US$1,007.67*

Table signal box T1, disc sensor, LS

Product no.: 108157

Table signal box T1 - EU / UK / US, with disc sensor, alarm at empty state, 3 m signal cable, 2 m hook and loop fastener for disc sensor incl. power supply: 24V DC EU / UK / US plug

US$1,007.67*

Disc sensor set, T5, FS

Product no.: 117988

Disc sensor set, T5, full state - 1x Table signal box T5: - 5x disc fill level sensor, - 5x 3 m signal cable, - 5x 2 m hook and loop fastener for disc sensor - incl. 24V power supply (EU / UK / US plug)

US$3,062.36*

Table signal box T5, 5 empty sensors

Product no.: 917989

Table signal box T5: 5x disc sensor, alarm at empty state, 5x 3 m signal cable, 5x 2 m hook and loop fastener for disc sensor incl. 24V power supply (EU / UK / US plug)

US$3,062.36*
