Safety Waste Cap S90, 4x fit. 1x tube el

Skip image gallery

US$237.92*

Content: 1
Information on prices, delivery- and payment-terms
Product number: 460090

Delivery Time: 7-10 days

We make your Lab a safer Place!

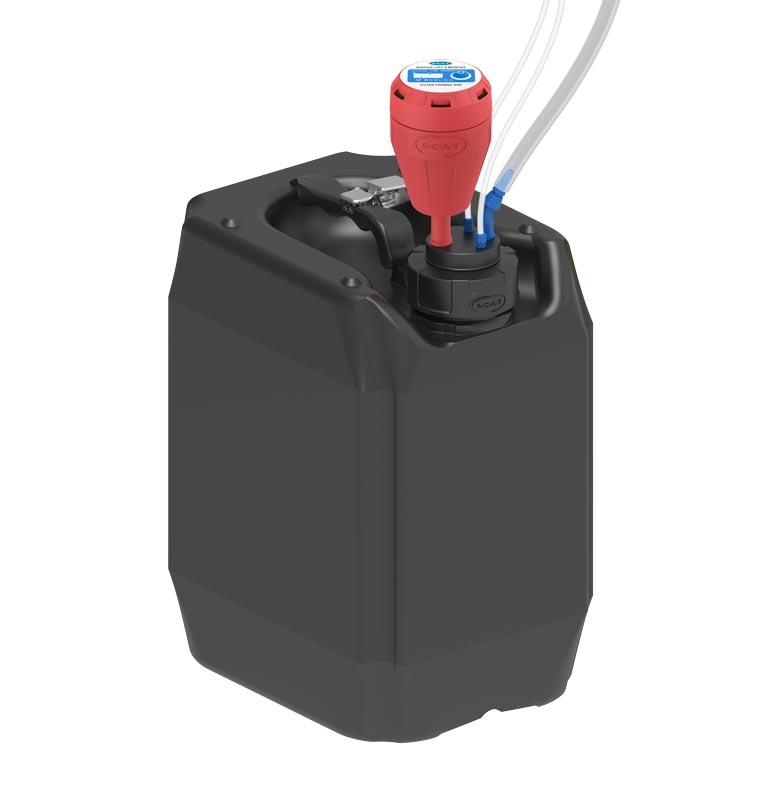

The SCAT Safety Waste Cap S90 is a safety cap for closed HPLC waste disposal on canisters and containers with S90 thread. Four capillary ports for HPLC capillaries and one hose connection for flexible waste lines enable clean collection of multiple waste streams. The hermetically sealing cap reduces solvent vapors, improves laboratory safety and ensures professional waste handling. The electrically conductive version increases process safety when handling solvent waste. An optional SCAT exhaust filter can be installed via the GL14 port.

Product information "Safety Waste Cap S90, 4x fit. 1x tube el"

Safety Waste Cap, S90, electrostatic conductive:

- 4 x PFA fitting 2.3 mm OD, UNF 1/4“ 28G

- 4 x PFA fitting 3.2 mm OD, UNF 1/4“ 28G

- 1 x PP tube connector 5.0 - 11.5mm ID, NPT 1/8"

- 1 x connection for exhaust filter, GL14

Specifications
Electrostatic conductive plastic: Yes
Main material: PTFE-el
No. of capillary connections: 4
No. of tube connections: 1
Thread size: S90
Skip product gallery

Exhaust Filters

Act. carbon exhaust filter S 3M, dis, 1
Act. carbon exhaust filter S 3M, dis, 1
Product no.: 410534
Activated carbon exhaust filter S, GL14, with splash guard and change indicator, service life 3 months

US$95.65*
Act. carbon exhaust filter M 6M, lab, 1
Act. carbon exhaust filter M 6M, lab, 1
Product no.: 407982
Activated carbon exhaust filter M, GL14 - with splash guard and change label - service life 6 months

US$141.95*
Act. carbon exhaust filter M 6M, dis, 1
Act. carbon exhaust filter M 6M, dis, 1
Product no.: 410535
Activated carbon exhaust filter M, GL14 - with splash guard and change indicator, - service life 6 months

US$148.34*
Act. carbon exhaust filter L, 12M, lab 1
Act. carbon exhaust filter L, 12M, lab 1
Product no.: 407983
Activated carbon exhaust filter L, GL14 - with splash guard and change label - service life 12 months

US$198.00*
Act. carbon exhaust filter L, 12M, dis 1
Act. carbon exhaust filter L, 12M, dis 1
Product no.: 407986
Activated carbon exhaust filter L, GL14 - with splash guard and change indicator - service life 12 months

US$205.97*
Act. carbon exhaust filter M, 6M, dis, 2
Act. carbon exhaust filter M, 6M, dis, 2
Product no.: 490914
Activated carbon exhaust filter M, GL14 - economy package - with splash guard and change label - service life 6 months - quantity = 2 pieces

US$258.68*
Act. carbon exhaust filter M, 6M, lab, 2
Act. carbon exhaust filter M, 6M, lab, 2
Product no.: 490336
Activated carbon exhaust filter M, GL14 - economy package - with splash guard and change indicator - service life 6 months - quantity = 2 pieces

US$269.85*
Act. carbon exhaust filter L, 12M, lab 2
Act. carbon exhaust filter L, 12M, lab 2
Product no.: 490915
Activated carbon exhaust filter L, GL14 - economy package - with splash guard and change label - service life 12 months - quantity = 2 pieces

US$304.98*
Act. carbon exhaust filter L, 12M, dis 2
Act. carbon exhaust filter L, 12M, dis 2
Product no.: 490986
Activated carbon exhaust filter L, GL14 - economy package - with splash guard and change indicator - service life 12 months - quantity = 2 pieces

US$317.76*
Act. carbon exhaust filter S 3M, dis, 4
Act. carbon exhaust filter S 3M, dis, 4
Product no.: 490335
Activated carbon exhaust filter S, GL14 - economy package - with splash guard and change indicator - service life 3 months, - quantity = 4 pieces

US$333.72*
Skip product gallery

Tubing Connections

Tube olive, straight, 12.7 mm, PP
Tube olive, straight, 12.7 mm, PP
Product no.: 117818
Tube connector, straight, 12.7 mm, PP

US$15.81*
Tube olive, offset, 6.4-8 mm ID
Tube olive, offset, 6.4-8 mm ID
Product no.: 107808
Tube connector, angled, 6.4 - 8 mm ID, PP

US$15.81*
Tube olive, offset, 9.5-10 mm ID
Tube olive, offset, 9.5-10 mm ID
Product no.: 107810
Tube connector, angled, 9.5 - 10 mm ID, PP

US$15.81*
Tube olive, straight, 2–3 mm ID
Tube olive, straight, 2–3 mm ID
Product no.: 107811
Tube connector, straight, 2 - 3 mm ID, PP

US$15.81*
Tube olive, straight, 3–4 mm ID
Tube olive, straight, 3–4 mm ID
Product no.: 107812
Tube connector, straight, 3 - 4 mm ID, PP

US$15.81*
Tube olive, straight, 4–6 mm ID
Tube olive, straight, 4–6 mm ID
Product no.: 107813
Tube connector, straight, 4 - 6 mm ID, PP

US$15.81*
Tube olive, straight, 5 - 7 mm ID
Tube olive, straight, 5 - 7 mm ID
Product no.: 107814
Tube connector, straight, 5 - 7 mm ID, PP

US$15.81*
Tube olive, straight, 6.2 - 7.5 mm ID
Tube olive, straight, 6.2 - 7.5 mm ID
Product no.: 107816
Tube connector, straight, 6.2 - 7.5 mm ID, PP

US$15.81*
Tube olive, straight, 9.5 - 10 mm ID
Tube olive, straight, 9.5 - 10 mm ID
Product no.: 107817
Tube connector, straight, 9.5 - 10 mm ID, PP

US$15.81*
Tube olive, curved, 5.0-11.5 mm ID
Tube olive, curved, 5.0-11.5 mm ID
Product no.: 117808
Tube connector, curved, 5.0 - 11.5mm ID, NPT 1/8", PP

US$19.00*
Tube olive, straight, 6.4 - 8 mm ID
Tube olive, straight, 6.4 - 8 mm ID
Product no.: 160142
Tube connector, straight, 6.4 - 8 mm ID, PTFE

US$31.78*
Tube olive, bent, 6.4–mm ID
Tube olive, bent, 6.4–mm ID
Product no.: 160143
Tube connector, curved, 6.4 - 8 mm ID, PTFE

US$39.76*
Adapter for septum cap, short thread ND9
Adapter for septum cap, short thread ND9
Product no.: 160146
Adapter for septum caps, short thread ND9, PTFE

US$55.73*
Compression fitting for Tube, ID 8 mm
Compression fitting for Tube, ID 8 mm
Product no.: 117819
Compression fitting for tube connector NPT 1/8", PTFE, tube olive for corrugated tube ID 8 mm / OD 11 mm, with locknut

US$79.68*
Compression fitting for Tube, ID 6 mm
Compression fitting for Tube, ID 6 mm
Product no.: 117821
Compression fitting for tube connector, PTFE, tube olive for corrugated tube ID 6.5 mm / OD 10 mm, with locknut

US$79.68*
Skip product gallery

Thread Adapters

Adapter, PEHD, S90(m)-VIR(f)
Adapter, PEHD, S90(m)-VIR(f)
Product no.: 107018
Thread adapter, PE-HD, S90 (m) -VIR (f)

US$143.55*
Skip product gallery

Collector

2-in-1 collector, vertical
2-in-1 collector, vertical
Product no.: 160141
2-in-1 collector, vertical, PTFE/PFA, 2x 2.3/3.2 mm OD

US$63.71*
3-in-1 collector, 3x 3.2 mm OD
3-in-1 collector, 3x 3.2 mm OD
Product no.: 160132
3-in-1 collector for tube connector, vertical, PTFE/PFA, 3x 2.3/3.2 mm OD

US$71.69*
2-in-1 collector, 2x 6.4 mm ID
2-in-1 collector, 2x 6.4 mm ID
Product no.: 160139
2-in-1 collector for tube connector, sidewise, PTFE/PP, 2x 5.0 - 11.5mm ID

US$87.66*
3-in-1 collector, 3x 3.2 mm OD, side
3-in-1 collector, 3x 3.2 mm OD, side
Product no.: 160131
3-in-1 collector for tube connector, sidewise, PTFE/PFA, 3x 2.3/3.2 mm OD

US$95.65*
3-in-1 collector, 2x 2.3/3.2 mm OD
3-in-1 collector, 2x 2.3/3.2 mm OD
Product no.: 160130
3-in-1 collector for tube connector, sidewise, PTFE/PFA/PP, 2x 2.3/3.2 mm OD, 1x 5.0 - 11.5mm ID

US$95.65*
3-in-1 collector, 3x 6.4 mm ID, side
3-in-1 collector, 3x 6.4 mm ID, side
Product no.: 160138
3-in-1 collector for tube connector, sidewise, PTFE/PP, 3x 5.0 - 11.5mm ID

US$95.65*
3-in-1 collector, VWR-Hitachi Chromaster
3-in-1 collector, VWR-Hitachi Chromaster
Product no.: 199010
3-in-1 collector for T-piece VWR-Hitachi Chromaster HPLC system

US$95.65*
3-in-1 collector, 3x 6.4 mm ID
3-in-1 collector, 3x 6.4 mm ID
Product no.: 160128
3-in-1 collector for tube connector, vertical, PTFE/PP, 3x 5.0 - 11.5mm ID

US$95.65*
8-in-1 collector, 7x 2.3/3.2 mm OD
8-in-1 collector, 7x 2.3/3.2 mm OD
Product no.: 160129
8-in-1 collector for tube connector, vertical, PTFE/PFA/PP, 7x 2.3/3.2 mm OD, 1x 6 - 8mm ID

US$127.58*
8-in-1 collector, 8x 3.2 mm OD
8-in-1 collector, 8x 3.2 mm OD
Product no.: 160137
8-in-1 collector for tube connector, vertical, PTFE/PFA, 8x 2.3/3.2 mm OD

US$127.58*
HPLC Manifold, NPT 1/8", PTFE
HPLC Manifold, NPT 1/8", PTFE
Product no.: 160528
HPLC Manifold, NPT 1/8", PTFE, 6x 1.6/2.3/3.2mm OD, 6x PFA-blindplug, 6x 5.0 - 11.5mm ID, 6x PTFE-blindplug

US$143.55*
HPLC Manifold, NPT 1/8", PTFE, ec
HPLC Manifold, NPT 1/8", PTFE, ec
Product no.: 160526
HPLC Manifold, NPT 1/8", PTFE-EL, electrostatic conductive, 6x 1.6/2.3/3.2mm OD, 6x PFA-blindplug, 6x 5.0 - 11.5mm ID, 6x PE-blindplug

US$159.52*
Safety Waste Cap Mini-LISA, satellit
Safety Waste Cap Mini-LISA, satellit
Product no.: 160532
Safety Waste Cap Mini-LISA, Extension, GL14, PTFE, 4x 1.6/2.3/3.2mm OD, 4x PFA-blindplug, 3x 5.0 - 11.5mm ID, 3x PP-blindplug

US$166.06*
Skip product gallery

Tubes

Corrugated tube, flexible, PE, ID 6.5 mm
Corrugated tube, flexible, PE, ID 6.5 mm
Product no.: 461056
Corrugated tube, flexible, PP, ID 6.5 mm, length = 1 m, for HPLC instruments

US$31.78*
PTFE tube, ID = 6 mm, OD = 8 mm, ec
PTFE tube, ID = 6 mm, OD = 8 mm, ec
Product no.: 108017
PTFE tube, electrostatic conductive, black, ID = 6 mm, OD = 8 mm, length = 1m

US$39.76*
PTFE tube, ID = 8 mm, OD = 10 mm, ec
PTFE tube, ID = 8 mm, OD = 10 mm, ec
Product no.: 108018
PTFE tube, electrostatic conductive, black, ID = 8 mm, OD = 10 mm, length = 1m

US$55.73*
PTFE tube, ID = 10 mm, OD = 12 mm, ec
PTFE tube, ID = 10 mm, OD = 12 mm, ec
Product no.: 108019
PTFE tube, electrostatic conductive, black, ID = 10 mm, OD = 12 mm, length = 1m

US$63.71*
