Safety Waste Cap S90, 4x fit. GMC

Skip image gallery

US$493.40*

Content: 1
Information on prices, delivery- and payment-terms
Product number: 108031
We make your Lab a safer Place!

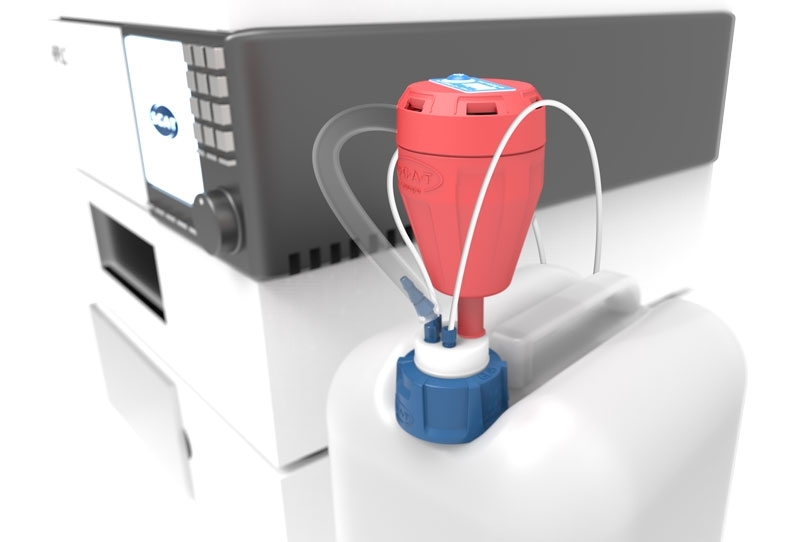

The SCAT Safety Waste Cap S90 is a safety cap for closed HPLC waste disposal on canisters and containers with S90 thread. Four capillary ports for HPLC capillaries enable clean collection of multiple waste streams. The hermetically sealing cap reduces solvent vapors, improves laboratory safety and ensures professional waste handling. The version with integrated mechanical fill level control increases process safety when handling solvent waste. An optional SCAT exhaust filter can be installed via the GL14 port.

Product information "Safety Waste Cap S90, 4x fit. GMC"

Safety Waste Cap, S90

- 1 x mechanical level control

- 4 x PFA fitting 2.3 mm OD, UNF 1/4“ 28G

- 4 x PFA fitting 3.2 mm OD, UNF 1/4“ 28G

- 1 x grounding connection

- 1 x connection for exhaust filter, GL14

Specifications
Grounding connection: Yes
Main material: PTFE
Mechanical level control: Yes
No. of capillary connections: 4
Thread size: S90
Skip product gallery

Exhaust Filters

Act. carbon exhaust filter S 3M, dis, 1
Act. carbon exhaust filter S 3M, dis, 1
Product no.: 410534
Activated carbon exhaust filter S, GL14, with splash guard and change indicator, service life 3 months

US$95.65*
Act. carbon exhaust filter M 6M, lab, 1
Act. carbon exhaust filter M 6M, lab, 1
Product no.: 407982
Activated carbon exhaust filter M, GL14 - with splash guard and change label - service life 6 months

US$141.95*
Act. carbon exhaust filter M 6M, dis, 1
Act. carbon exhaust filter M 6M, dis, 1
Product no.: 410535
Activated carbon exhaust filter M, GL14 - with splash guard and change indicator, - service life 6 months

US$148.34*
Act. carbon exhaust filter L, 12M, lab 1
Act. carbon exhaust filter L, 12M, lab 1
Product no.: 407983
Activated carbon exhaust filter L, GL14 - with splash guard and change label - service life 12 months

US$198.00*
Act. carbon exhaust filter L, 12M, dis 1
Act. carbon exhaust filter L, 12M, dis 1
Product no.: 407986
Activated carbon exhaust filter L, GL14 - with splash guard and change indicator - service life 12 months

US$205.97*
Act. carbon exhaust filter M, 6M, dis, 2
Act. carbon exhaust filter M, 6M, dis, 2
Product no.: 490914
Activated carbon exhaust filter M, GL14 - economy package - with splash guard and change label - service life 6 months - quantity = 2 pieces

US$258.68*
Act. carbon exhaust filter M, 6M, lab, 2
Act. carbon exhaust filter M, 6M, lab, 2
Product no.: 490336
Activated carbon exhaust filter M, GL14 - economy package - with splash guard and change indicator - service life 6 months - quantity = 2 pieces

US$269.85*
Act. carbon exhaust filter L, 12M, lab 2
Act. carbon exhaust filter L, 12M, lab 2
Product no.: 490915
Activated carbon exhaust filter L, GL14 - economy package - with splash guard and change label - service life 12 months - quantity = 2 pieces

US$304.98*
Act. carbon exhaust filter L, 12M, dis 2
Act. carbon exhaust filter L, 12M, dis 2
Product no.: 490986
Activated carbon exhaust filter L, GL14 - economy package - with splash guard and change indicator - service life 12 months - quantity = 2 pieces

US$317.76*
Act. carbon exhaust filter S 3M, dis, 4
Act. carbon exhaust filter S 3M, dis, 4
Product no.: 490335
Activated carbon exhaust filter S, GL14 - economy package - with splash guard and change indicator - service life 3 months, - quantity = 4 pieces

US$333.72*
Skip product gallery

Thread Adapters

Adapter, PEHD, S90(m)-VIR(f)
Adapter, PEHD, S90(m)-VIR(f)
Product no.: 107018
Thread adapter, PE-HD, S90 (m) -VIR (f)

US$143.55*
Skip product gallery

Collector

2-in-1 collector, vertical
2-in-1 collector, vertical
Product no.: 160141
2-in-1 collector, vertical, PTFE/PFA, 2x 2.3/3.2 mm OD

US$63.71*
3-in-1 collector, 3x 3.2 mm OD
3-in-1 collector, 3x 3.2 mm OD
Product no.: 160132
3-in-1 collector for tube connector, vertical, PTFE/PFA, 3x 2.3/3.2 mm OD

US$71.69*
2-in-1 collector, 2x 6.4 mm ID
2-in-1 collector, 2x 6.4 mm ID
Product no.: 160139
2-in-1 collector for tube connector, sidewise, PTFE/PP, 2x 5.0 - 11.5mm ID

US$87.66*
3-in-1 collector, 3x 6.4 mm ID
3-in-1 collector, 3x 6.4 mm ID
Product no.: 160128
3-in-1 collector for tube connector, vertical, PTFE/PP, 3x 5.0 - 11.5mm ID

US$95.65*
3-in-1 collector, 2x 2.3/3.2 mm OD
3-in-1 collector, 2x 2.3/3.2 mm OD
Product no.: 160130
3-in-1 collector for tube connector, sidewise, PTFE/PFA/PP, 2x 2.3/3.2 mm OD, 1x 5.0 - 11.5mm ID

US$95.65*
3-in-1 collector, 3x 3.2 mm OD, side
3-in-1 collector, 3x 3.2 mm OD, side
Product no.: 160131
3-in-1 collector for tube connector, sidewise, PTFE/PFA, 3x 2.3/3.2 mm OD

US$95.65*
3-in-1 collector, 3x 6.4 mm ID, side
3-in-1 collector, 3x 6.4 mm ID, side
Product no.: 160138
3-in-1 collector for tube connector, sidewise, PTFE/PP, 3x 5.0 - 11.5mm ID

US$95.65*
3-in-1 collector, VWR-Hitachi Chromaster
3-in-1 collector, VWR-Hitachi Chromaster
Product no.: 199010
3-in-1 collector for T-piece VWR-Hitachi Chromaster HPLC system

US$95.65*
8-in-1 collector, 7x 2.3/3.2 mm OD
8-in-1 collector, 7x 2.3/3.2 mm OD
Product no.: 160129
8-in-1 collector for tube connector, vertical, PTFE/PFA/PP, 7x 2.3/3.2 mm OD, 1x 6 - 8mm ID

US$127.58*
8-in-1 collector, 8x 3.2 mm OD
8-in-1 collector, 8x 3.2 mm OD
Product no.: 160137
8-in-1 collector for tube connector, vertical, PTFE/PFA, 8x 2.3/3.2 mm OD

US$127.58*
Skip product gallery

Floater

Float level controling, 91.5 mm
Float level controling, 91.5 mm
Product no.: 502021
Floater, mechanical / electronic, length 91.5 mm, PE-EL/PP

US$158.08*
Float level control, 120 mm
Float level control, 120 mm
Product no.: 160121
Floater, mechanical / electronic, length 120 mm, PE-EL/PP

US$174.05*
Safety Waste Cap LISA, mechanical LC
Safety Waste Cap LISA, mechanical LC
Product no.: 350122
Safety Waste Cap LISA,  Extension mechanical level control

US$190.01*
Safety Waste Cap LISA, mechanical LC, ec
Safety Waste Cap LISA, mechanical LC, ec
Product no.: 450122
Safety Waste Cap LISA,  Extension mechanical level control, electrostatic conductive

US$190.01*
Float level control, 150 mm
Float level control, 150 mm
Product no.: 160125
Floater, mechanical / electronic, length 150 mm, PE-EL/PP

US$205.98*
Float level control, 190 mm
Float level control, 190 mm
Product no.: 160206
Floater, mechanical / electronic, length 190 mm, PE-EL/PP

US$221.95*
Safety Waste Cap LISA, electrical LC
Safety Waste Cap LISA, electrical LC
Product no.: 350121
Safety Waste Cap LISA,  Extension electronic level control

US$253.89*
Safety Waste Cap LISA, electrical LC, ec
Safety Waste Cap LISA, electrical LC, ec
Product no.: 450121
Safety Waste Cap LISA,  Extension electronic level control, electrostatic conductive

US$285.82*
Skip product gallery

Tubes

Corrugated tube, flexible, PE, ID 6.5 mm
Corrugated tube, flexible, PE, ID 6.5 mm
Product no.: 461056
Corrugated tube, flexible, PP, ID 6.5 mm, length = 1 m, for HPLC instruments

US$31.78*
PTFE tube, ID = 6 mm, OD = 8 mm, ec
PTFE tube, ID = 6 mm, OD = 8 mm, ec
Product no.: 108017
PTFE tube, electrostatic conductive, black, ID = 6 mm, OD = 8 mm, length = 1m

US$39.76*
PTFE tube, ID = 8 mm, OD = 10 mm, ec
PTFE tube, ID = 8 mm, OD = 10 mm, ec
Product no.: 108018
PTFE tube, electrostatic conductive, black, ID = 8 mm, OD = 10 mm, length = 1m

US$55.73*
PTFE tube, ID = 10 mm, OD = 12 mm, ec
PTFE tube, ID = 10 mm, OD = 12 mm, ec
Product no.: 108019
PTFE tube, electrostatic conductive, black, ID = 10 mm, OD = 12 mm, length = 1m

US$63.71*
