Justrite HPLC manifold , PP, ec

Skip image gallery

US$205.98*

Content: 1
Information on prices, delivery- and payment-terms
Product number: 160527
We make your Lab a safer Place!

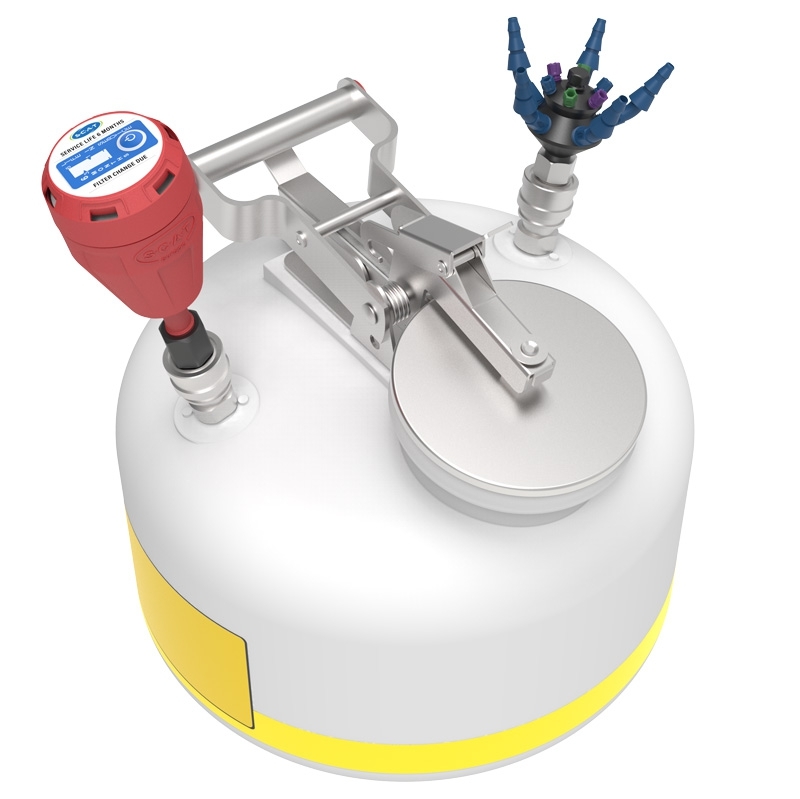

The SCAT electrostatic conductive HPLC manifold combines multiple capillary and tube connections in one compact component. It supports safe, organized collection of liquid HPLC waste and facilitates integration into existing SCAT systems.

Product information "Justrite HPLC manifold , PP, ec"

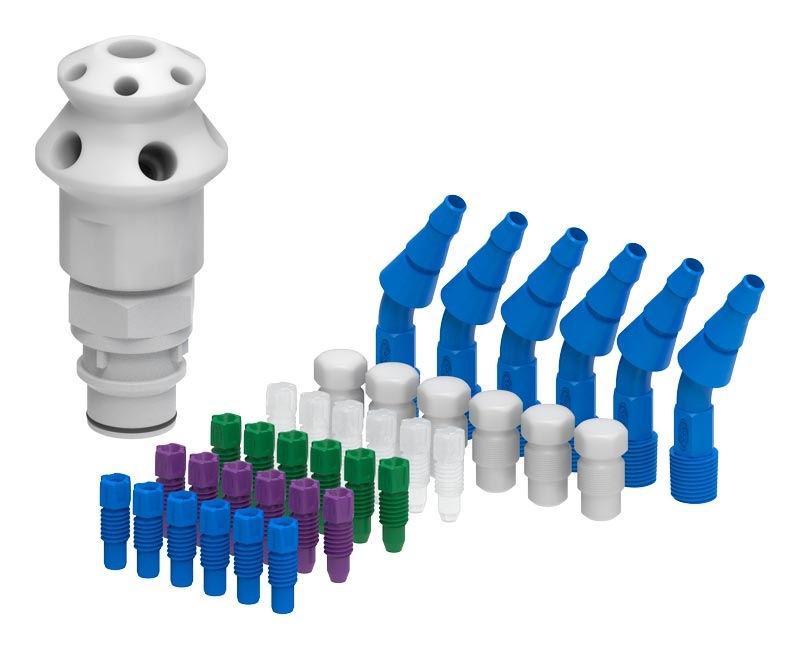

Justrite HPLC manifold with PP Quick-Lock Connector plug for canisters, PTFE-EL, electrostatic conductive, 6x 1.6/2.3/3.2mm OD, 6x PFA blind plugs, 6x 5.0 - 11.5mm ID, 6x PTFE blind plugs

Specifications
Main material: PP
No. of capillary connections: 6
No. of tube connections: 6
Skip product gallery

Capillaries

PTFE capillary 1.6 mm OD (1.0 mm ID)
PTFE capillary 1.6 mm OD (1.0 mm ID)
Product no.: 461053
PTFE Capillary 1.6 mm OD (1.0 mm ID), length = 3 m

US$26.99*
PTFE capillary 2.3 mm OD (1.7 mm ID)
PTFE capillary 2.3 mm OD (1.7 mm ID)
Product no.: 461054
PTFE Capillary 2.3 mm OD (1.7 mm ID), length = 3 m

US$26.99*
PTFE capillary 3.2 mm OD (1.6 mm ID)
PTFE capillary 3.2 mm OD (1.6 mm ID)
Product no.: 461055
PTFE Capillary 3.2 mm OD (1.6 mm ID), length = 3 m

US$26.99*
Skip product gallery

Tube Connector

Adapter for septum cap, short thread ND9
Adapter for septum cap, short thread ND9
Product no.: 160146
Adapter for septum caps, short thread ND9, PTFE

US$55.73*
Compression fitting for Tube, ID 6 mm
Compression fitting for Tube, ID 6 mm
Product no.: 117821
Compression fitting for tube connector, PTFE, tube olive for corrugated tube ID 6.5 mm / OD 10 mm, with locknut

US$79.68*
Compression fitting for Tube, ID 8 mm
Compression fitting for Tube, ID 8 mm
Product no.: 117819
Compression fitting for tube connector NPT 1/8", PTFE, tube olive for corrugated tube ID 8 mm / OD 11 mm, with locknut

US$79.68*
Tube olive, bent, 6.4–mm ID
Tube olive, bent, 6.4–mm ID
Product no.: 160143
Tube connector, curved, 6.4 - 8 mm ID, PTFE

US$39.76*
Tube olive, curved, 5.0-11.5 mm ID
Tube olive, curved, 5.0-11.5 mm ID
Product no.: 117808
Tube connector, curved, 5.0 - 11.5mm ID, NPT 1/8", PP

US$19.00*
Tube olive, offset, 6.4-8 mm ID
Tube olive, offset, 6.4-8 mm ID
Product no.: 107808
Tube connector, angled, 6.4 - 8 mm ID, PP

US$15.81*
Tube olive, offset, 9.5-10 mm ID
Tube olive, offset, 9.5-10 mm ID
Product no.: 107810
Tube connector, angled, 9.5 - 10 mm ID, PP

US$15.81*
Tube olive, straight, 12.7 mm, PP
Tube olive, straight, 12.7 mm, PP
Product no.: 117818
Tube connector, straight, 12.7 mm, PP

US$15.81*
Tube olive, straight, 2–3 mm ID
Tube olive, straight, 2–3 mm ID
Product no.: 107811
Tube connector, straight, 2 - 3 mm ID, PP

US$15.81*
Tube olive, straight, 3–4 mm ID
Tube olive, straight, 3–4 mm ID
Product no.: 107812
Tube connector, straight, 3 - 4 mm ID, PP

US$15.81*
Tube olive, straight, 4–6 mm ID
Tube olive, straight, 4–6 mm ID
Product no.: 107813
Tube connector, straight, 4 - 6 mm ID, PP

US$15.81*
Tube olive, straight, 5 - 7 mm ID
Tube olive, straight, 5 - 7 mm ID
Product no.: 107814
Tube connector, straight, 5 - 7 mm ID, PP

US$15.81*
Tube olive, straight, 6.2 - 7.5 mm ID
Tube olive, straight, 6.2 - 7.5 mm ID
Product no.: 107816
Tube connector, straight, 6.2 - 7.5 mm ID, PP

US$15.81*
Tube olive, straight, 6.4 - 8 mm ID
Tube olive, straight, 6.4 - 8 mm ID
Product no.: 160142
Tube connector, straight, 6.4 - 8 mm ID, PTFE

US$31.78*
Tube olive, straight, 9.5 - 10 mm ID
Tube olive, straight, 9.5 - 10 mm ID
Product no.: 107817
Tube connector, straight, 9.5 - 10 mm ID, PP

US$15.81*
Skip product gallery

Tubes

Corrugated tube, flexible, PE, ID 6.5 mm
Corrugated tube, flexible, PE, ID 6.5 mm
Product no.: 461056
Corrugated tube, flexible, PP, ID 6.5 mm, length = 1 m, for HPLC instruments

US$31.78*
PTFE tube, ID = 10 mm, OD = 12 mm, ec
PTFE tube, ID = 10 mm, OD = 12 mm, ec
Product no.: 108019
PTFE tube, electrostatic conductive, black, ID = 10 mm, OD = 12 mm, length = 1m

US$63.71*
PTFE tube, ID = 6 mm, OD = 8 mm, ec
PTFE tube, ID = 6 mm, OD = 8 mm, ec
Product no.: 108017
PTFE tube, electrostatic conductive, black, ID = 6 mm, OD = 8 mm, length = 1m

US$39.76*
PTFE tube, ID = 8 mm, OD = 10 mm, ec
PTFE tube, ID = 8 mm, OD = 10 mm, ec
Product no.: 108018
PTFE tube, electrostatic conductive, black, ID = 8 mm, OD = 10 mm, length = 1m

US$55.73*
Skip product gallery

Fittings

Fitting with ferrule, 1.6 mm OD
Fitting with ferrule, 1.6 mm OD
Product no.: 107165
PP fitting with integrated ferrule, 1.6 mm OD, quantity = 5 pieces, colorless

US$31.78*
Fitting with ferrule, 1.6 mm OD, green
Fitting with ferrule, 1.6 mm OD, green
Product no.: 107061
PFA fitting with integrated ferrule, 1.6 mm OD, quantity = 5 pieces, green

US$31.78*
Fitting with ferrule, 1.6 mm OD, white
Fitting with ferrule, 1.6 mm OD, white
Product no.: 107041
PTFE fitting with integrated ferrule, 1.6 mm OD, quantity = 10 pieces, white

US$111.61*
Fitting with ferrule, 2.3 mm OD
Fitting with ferrule, 2.3 mm OD
Product no.: 107166
PP fitting with integrated ferrule, 2.3 mm OD, quantity = 5 pieces, colorless

US$31.78*
Fitting with ferrule, 2.3 mm OD, purple
Fitting with ferrule, 2.3 mm OD, purple
Product no.: 107059
PFA fitting with integrated ferrule, 2.3 mm OD, quantity = 5 pieces, violet

US$31.78*
Fitting with ferrule, 2.3 mm OD, white
Fitting with ferrule, 2.3 mm OD, white
Product no.: 107042
PTFE fitting with integrated ferrule, 2.3 mm OD, quantity = 10 pieces, white

US$111.61*
Fitting with ferrule, 3.2 mm OD
Fitting with ferrule, 3.2 mm OD
Product no.: 107167
PP fitting with integrated ferrule, 3.2 mm OD, quantity = 5 pieces, colorless

US$31.78*
Fitting with ferrule, 3.2 mm OD, blue
Fitting with ferrule, 3.2 mm OD, blue
Product no.: 107063
PFA fitting with integrated ferrule, 3.2 mm OD, quantity = 5 pieces, blue

US$31.78*
Fitting with ferrule, 3.2 mm OD, white
Fitting with ferrule, 3.2 mm OD, white
Product no.: 107043
PTFE fitting with integrated ferrule, 3.2 mm OD, quantity = 10 pieces, white

US$111.61*
Skip product gallery

Adapter

Justrite adapter for CPC coupling
Justrite adapter for CPC coupling
Product no.: 107617
Justrite adapter for canister to CPC coupling for exhaust filter

US$63.71*
Adapter exhaust filter, Justrite
Adapter exhaust filter, Justrite
Product no.: 107610
Justrite adapter on canister for exhaust filter to stainless steel coupling

US$63.71*
Skip product gallery

Exhaust Filter

Act. carbon exhaust filter L, 12M, dis 1
Act. carbon exhaust filter L, 12M, dis 1
Product no.: 407986
Activated carbon exhaust filter L, GL14 - with splash guard and change indicator - service life 12 months

US$205.97*
Act. carbon exhaust filter L, 12M, dis 2
Act. carbon exhaust filter L, 12M, dis 2
Product no.: 490986
Activated carbon exhaust filter L, GL14 - economy package - with splash guard and change indicator - service life 12 months - quantity = 2 pieces

US$317.76*
Act. carbon exhaust filter L, 12M, lab 1
Act. carbon exhaust filter L, 12M, lab 1
Product no.: 407983
Activated carbon exhaust filter L, GL14 - with splash guard and change label - service life 12 months

US$198.00*
Act. carbon exhaust filter L, 12M, lab 2
Act. carbon exhaust filter L, 12M, lab 2
Product no.: 490915
Activated carbon exhaust filter L, GL14 - economy package - with splash guard and change label - service life 12 months - quantity = 2 pieces

US$304.98*
Act. carbon exhaust filter M 6M, dis, 1
Act. carbon exhaust filter M 6M, dis, 1
Product no.: 410535
Activated carbon exhaust filter M, GL14 - with splash guard and change indicator, - service life 6 months

US$148.34*
Act. carbon exhaust filter M 6M, lab, 1
Act. carbon exhaust filter M 6M, lab, 1
Product no.: 407982
Activated carbon exhaust filter M, GL14 - with splash guard and change label - service life 6 months

US$141.95*
Act. carbon exhaust filter M, 6M, dis, 2
Act. carbon exhaust filter M, 6M, dis, 2
Product no.: 490914
Activated carbon exhaust filter M, GL14 - economy package - with splash guard and change label - service life 6 months - quantity = 2 pieces

US$258.68*
Act. carbon exhaust filter M, 6M, lab, 2
Act. carbon exhaust filter M, 6M, lab, 2
Product no.: 490336
Activated carbon exhaust filter M, GL14 - economy package - with splash guard and change indicator - service life 6 months - quantity = 2 pieces

US$269.85*
Act. carbon exhaust filter S 3M, dis, 1
Act. carbon exhaust filter S 3M, dis, 1
Product no.: 410534
Activated carbon exhaust filter S, GL14, with splash guard and change indicator, service life 3 months

US$95.65*
Act. carbon exhaust filter S 3M, dis, 4
Act. carbon exhaust filter S 3M, dis, 4
Product no.: 490335
Activated carbon exhaust filter S, GL14 - economy package - with splash guard and change indicator - service life 3 months, - quantity = 4 pieces

US$333.72*
Skip product gallery

Justrite polymer connection

Justrite adapter for CPC coupling
Justrite adapter for CPC coupling
Product no.: 107617
Justrite adapter for canister to CPC coupling for exhaust filter

US$63.71*
Justrite collector for CPC coupling
Justrite collector for CPC coupling
Product no.: 107628
Justrite 4-in-1 collector for canisters for CPC coupling, vertical, PTFE, 3x 3.2 mm OD, 1x 5.0 - 11.5 mm ID

US$95.65*
Justrite Quick-Lock Connector, MARCO
Justrite Quick-Lock Connector, MARCO
Product no.: 318957
Justrite Quick-Lock Connector for lid funnel MARCO - PE-HD - with removable sieve - funnel diameter 157 mm OD (140 mm ID)

US$245.90*
Justrite Quick-Lock Connector for LISA
Justrite Quick-Lock Connector for LISA
Product no.: 350099
Justrite Quick-Lock Connector for Safety Waste Cap LISA - 3 x PP tube connectors 5 - 11.5 mm OD, NPT 1/8" - 4 x PFA fitting 1.6 mm OD, UNF 1/4“ 28G - 4 x PFA fitting 2.3 mm OD, UNF 1/4“ 28G - 4 x PFA fitting 3.2 mm OD, UNF 1/4“ 28G - 4 x PFA blind plugs for HPLC connections, UNF 1/4" - 3 x PTFE blind plugs for tubing connections, NPT 1/8"

US$261.87*
